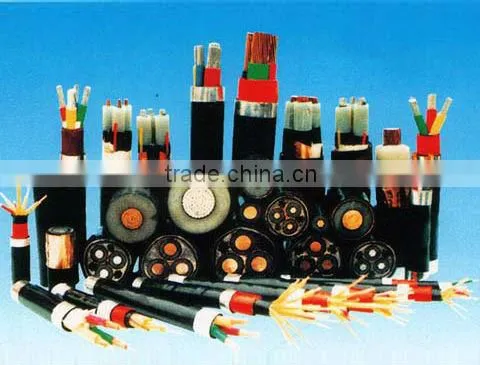

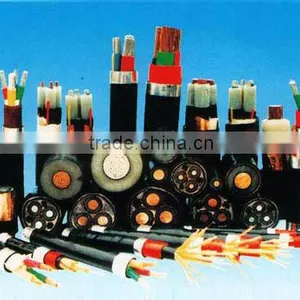

Electric Wire Construction Power Cable 11kv

Name: Electric Wire Construction Power Cable 11kv
Brand: Newbaofeng
SKU: 119878583
Availability: InStock

US$ 1.2 - 100 MOQ: 500 Meters

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Newbaofeng

Model Number:

Overhead cable

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Newbaofeng

Model Number Overhead cable

Type Insulated

Application Other, Overhead electric power transmission and distribution lines

Conductor Material Other, Aluminium or Aluminium Alloy

Insulation Material Other, XLPE or PE or PVC(weathering resistance)

Specifications

Electric wire
1 IEC, ASTM, DIN, BS standard
2 ISO,CCC certification
3 Response within 12 hours

Electric Wire construction power cable 11kv

Application

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,

production lines, transportation equipment, conveyor and assembly lines as well as in plant construction

under the circumstance that the rated voltage is up to 450/750V AC.

Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 70 0C

2. Rated voltage: 450/750V

3. Cable lying temperature ≥0 0C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimun bending radius:

Non armored ≥ out diameter of cable 6 times

Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 times

Type		Description	Main Application
Cu core	Al core	Description	Main Application
(ZR)YJV or (ZR)YJY	(ZR)YJLV or (ZR)YJLY	(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable.	For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid.
(ZR)YJV22 or (ZR)YJY23	(ZR)YJLV22 or (ZR)YJLY23	(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable.	For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force.
(ZR)YJV32 or (ZR)YJY33	(ZR)YJLV32 or (ZR)YJLY33	(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable	For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force.
(ZR)YJV42 or (ZR)YJY43	(ZR)YJLV42 or (ZR)YJLY43	(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable	For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.
