Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Electric Wire 18/30kv XLPE / PVC / Sreen / SWA /Armour

Electric Wire 18/30kv XLPE / PVC / Sreen / SWA /Armour

Name: Electric Wire 18/30kv XLPE / PVC / Sreen / SWA /Armour
Brand: Newbaofeng
SKU: 119878591
Availability: InStock

Electric Wire 18/30kv XLPE / PVC / Sreen / SWA /Armour thumbnail-1

Electric Wire 18/30kv XLPE / PVC / Sreen / SWA /Armour photo-1

US$ 1.2 - 100 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Newbaofeng

Model Number:

Overhead cable

Contact Supplier Request Quote Chat Now

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Newbaofeng

Model Number Overhead cable

Type Insulated

Application Other, Overhead electric power transmission and distribution lines

Conductor Material Other, Aluminium or Aluminium Alloy

Insulation Material Other, XLPE or PE or PVC(weathering resistance)

Specifications

Electric wire
1 High Tension
2 IEC/CE/BS/VDE/GHOST/NFC/AS/NZS/UL
3 CTS/SWA/STA/ALA

We are glad to let you know that we are the largest manufactor and exportor of instrumentation cable in Aisan with annual production of 16,800km.

We are the Top 8 audited supplier of State Grid.We sincerely hope to cooperate with friends from all over the world for win-win result.

We are really appreciated the oppertunity to cooperate with you.

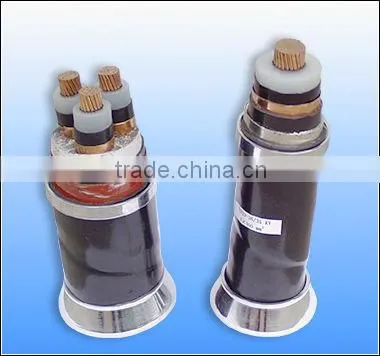

1:6~30KV XLPE Insulation PVC Sheath Power Cable

1. The applications: Rated voltage (U₀/U) 0.6/1KV; 3.6/6 (7.2)KV; 6/10 (12)KV; 8.7/15 (17.5)KV; 12/20 (24)KV; 18/30 (36)KV in transmission & transformation line & for water-proofing purpose.

2. Standards: IEC60502-2 2005 ISO9001:2008

3. Product Features:

1) No necessary to heat up in advance while installing above 0^oC.

2) Max. continuous normal operating Temperature: 70^oC (PVC Sheathed Cable).

3) Max. Permissible temperature at short circuit (5s. at longest): 250^oC.

4) Permissible bending radius:

Single core: ≥20(d+D)±5%.

Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

2:Detailed Description:

Cross-linked XLPE insulation power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and can be used conveniently and also can be laid with no restriction of different levels. The long term operating temperature is 90⁰C, and its transmission capacitance is large.

Our company can produce both flame retardant and non-flame retardant series of XLPE power cables. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as stated above..

The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on.

Type		Description	Main Application
Cu core	Al core	Description	Main Application
(ZR)YJV or (ZR)YJY	(ZR)YJLV or (ZR)YJLY	(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable.	For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid.
(ZR)YJV22 or (ZR)YJY23	(ZR)YJLV22 or (ZR)YJLY23	(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable.	For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force.
(ZR)YJV32 or (ZR)YJY33	(ZR)YJLV32 or (ZR)YJLY33	(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable	For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force.
(ZR)YJV42 or (ZR)YJY43	(ZR)YJLV42 or (ZR)YJLY43	(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable	For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.
