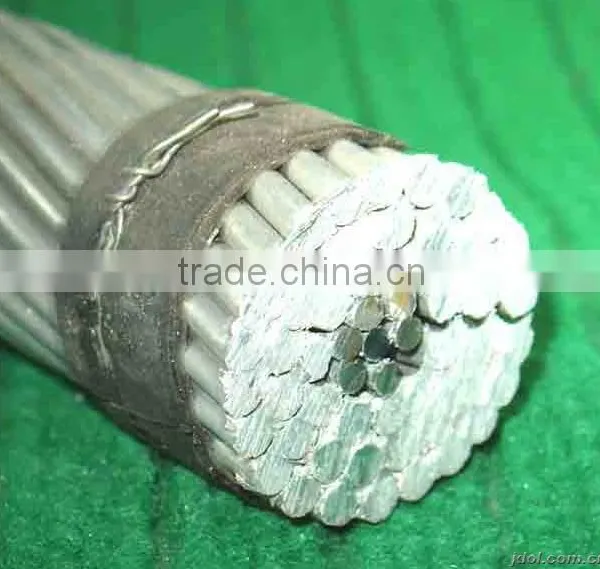

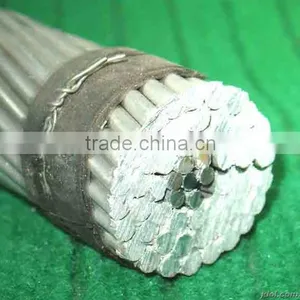

ACSR from New Baofeng

Specifications

ACSR
1. passed CE,ISO,CCC,PCCC...certificate
2.sell well in Europe, America, Asia

ACSR

1.Product standard: GB/T3954-2001

According to the requirement of wide customer our company can produce aluminum single wire and bared wire, etc with any specification.

2.Type status and specification

Type	Status	Diameter mm
A2  A4  A6  A8	H112	9.5±0.5

3.Mechanical and electric property of aluminum rod

Type	MPa Tensile resistance	Rate of elongation≥	D.C. resistance≤
A2	80~110	12	27.85
A4	95~115	10	28.01
A6	110~130	8	28.01
A8	120~150	6	28.01



4.Diameter deviation

Diameter deviation of electric round aluminum rod and the elasticity should be in conformity with the regulations in following list:

diameter	Error	Elasticity not more than
9.0~12.0	±0.5	0.9
13.5~20.0	±0.7	1.2

Note: The elasticity is the difference between Max diameter and Min diameter measured at same cross section while aluminum rod is perpendicular to axial line.







5.Surface quality

1. Electric round aluminum rod should be round and the size should be uniform.
2. The surface of electric round aluminum rod should be clean, without defects such as wrinkle, stagger round, crack, impurity, kink, etc as well as other defect that is harmful to application. The light mechanical scratch, spot, pit, peeling or black spot, etc are permitted.

6.Delivery weight

1. Electric round aluminum rod should be delivered by reel. Each reel will be over 1000kg.
2. According to the agreement signed by both parties, electric round aluminum rod with any weight can be delivered.
