BJX51 Ex Junction Box Safe Explosion Proof Junction Box 300*200mm

BJX51    Ex Junction Box safe explosion proof junction box

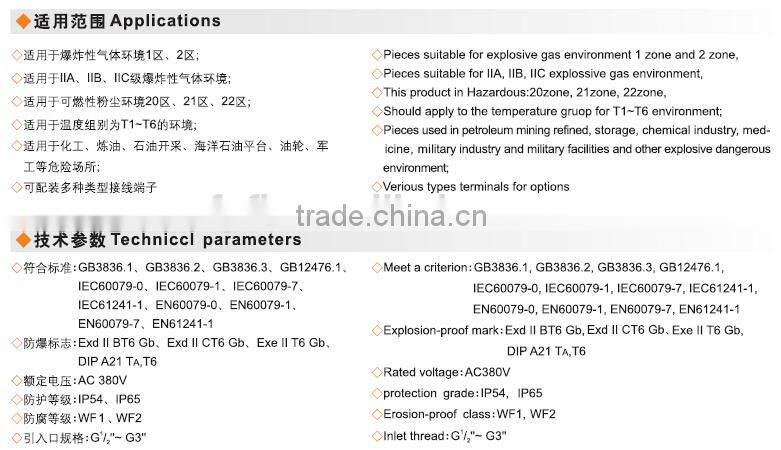

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T6.
• Various types terminals for options.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0,  IEC60079-1,  IEC60079-7,  IEC61241-1,  EN60079-0, EN60079-1, EN60079-7, EN61241-1
• Ex-proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, Exe II T6 Gb, DIP A21 TA, T6.
• Rated voltage: AC380V
• Protection grade: IP54,IP65
• Corrosion-proof grade:WF1
• Inlet Thread: G1/2"~G3"

Product Features:

• Steel Enclosure,high-pressure electrostatic powder coated after shot plastic.
• Stainless steel enclosure can be available on clients' request.
• Exclusive terminals, easy to connection.
• Cable entries direction can be made as per request, BDM type cable glands are available on request.
• Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate If special requirements.
• G type  Cable entry thread, also Metric, NPT etc. threads are available If request.
• Dimensions of Boxes can be customized.

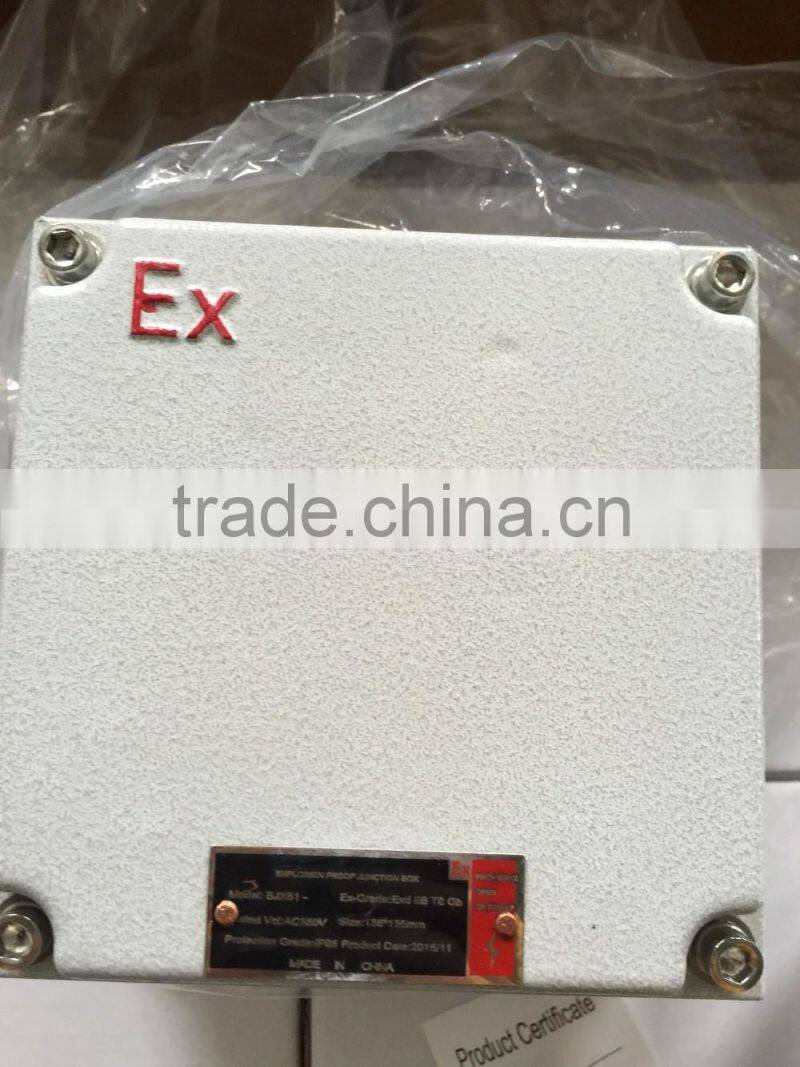

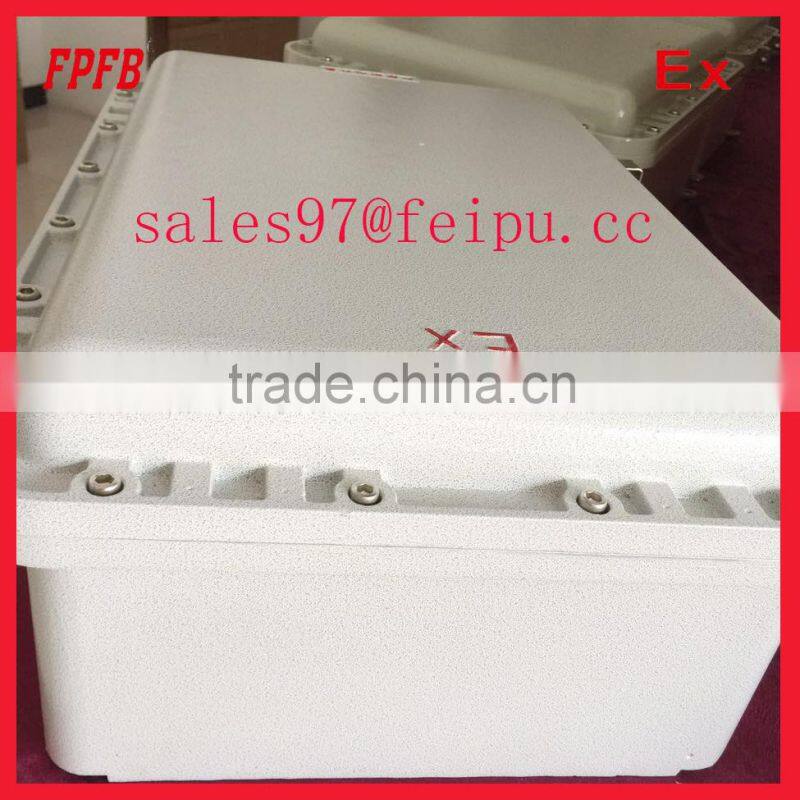

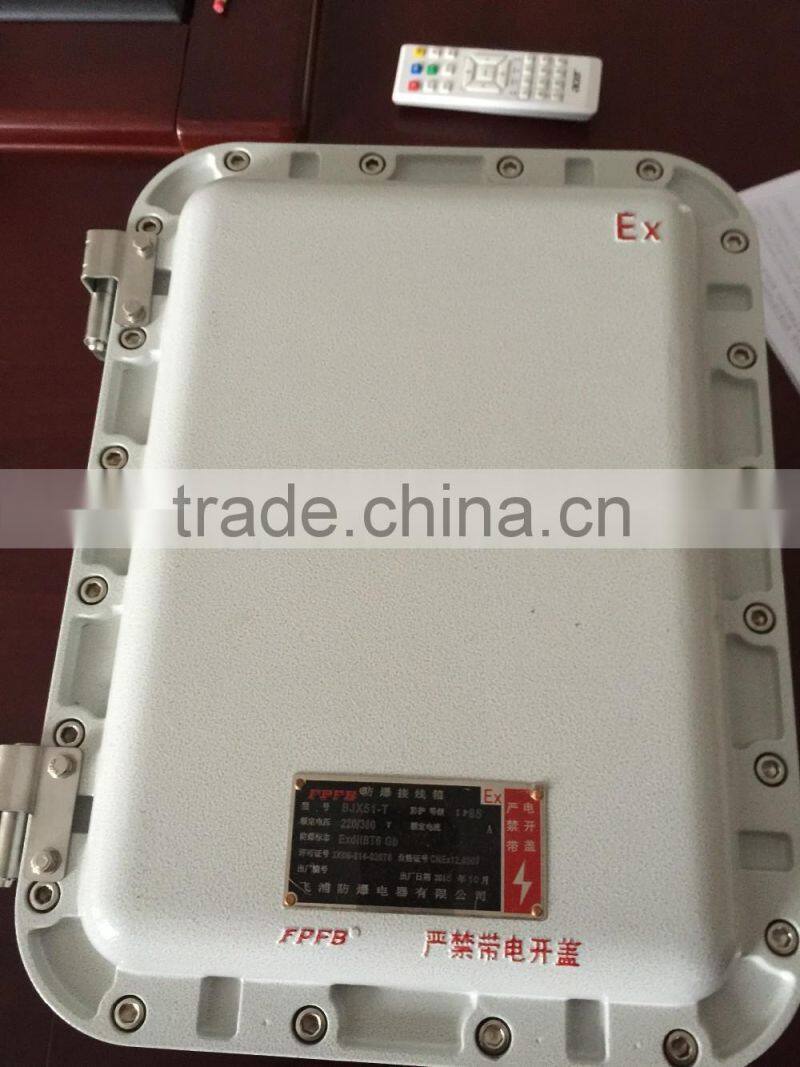

Display of samples:
