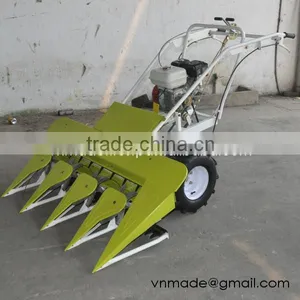

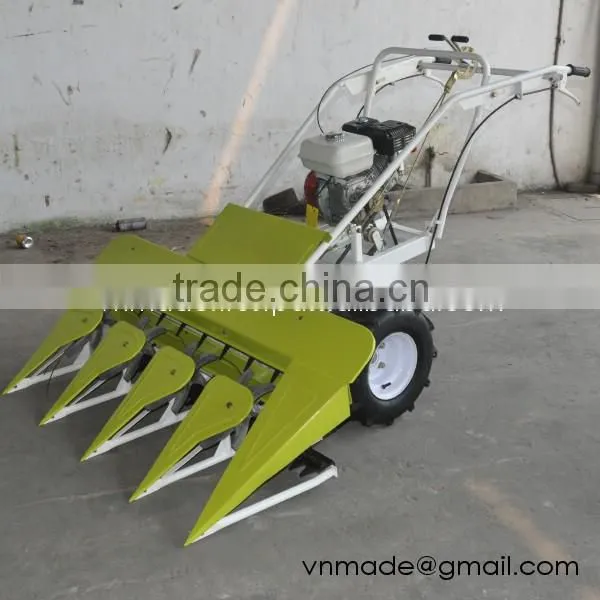

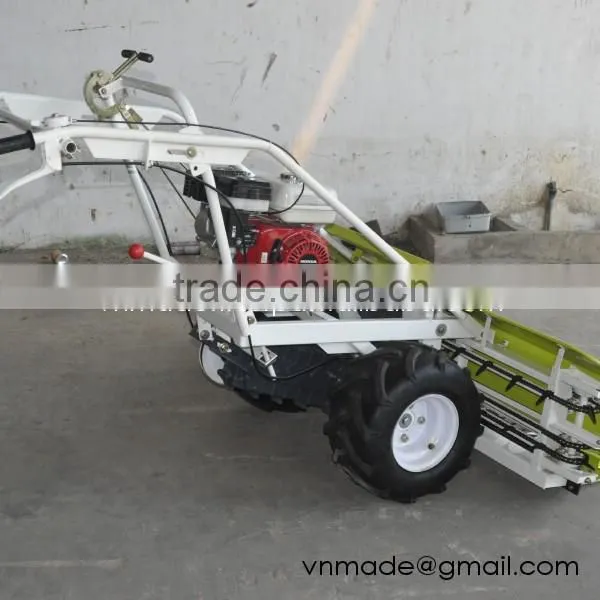

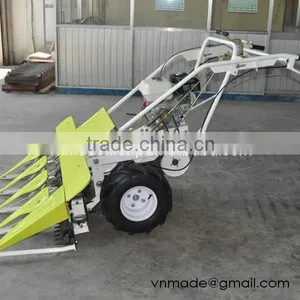

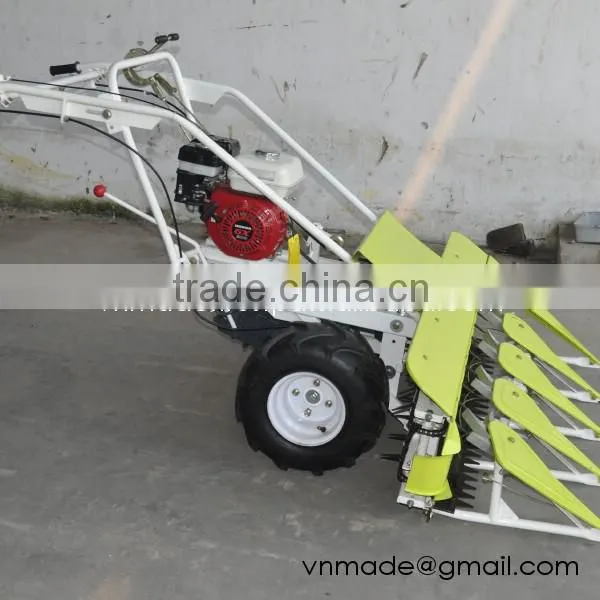

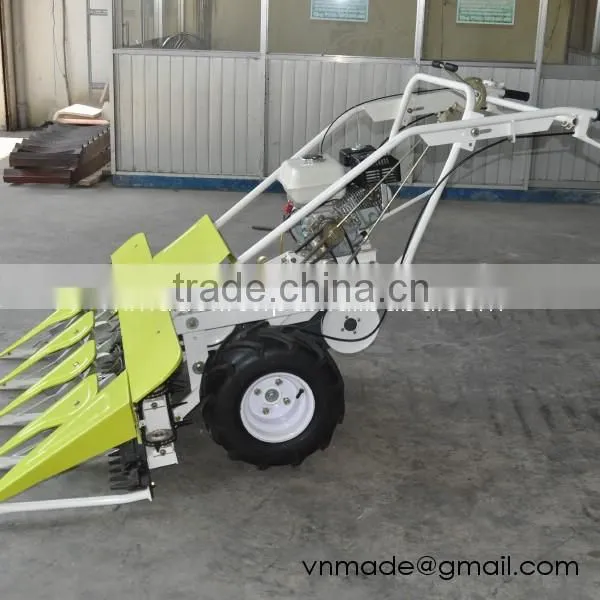

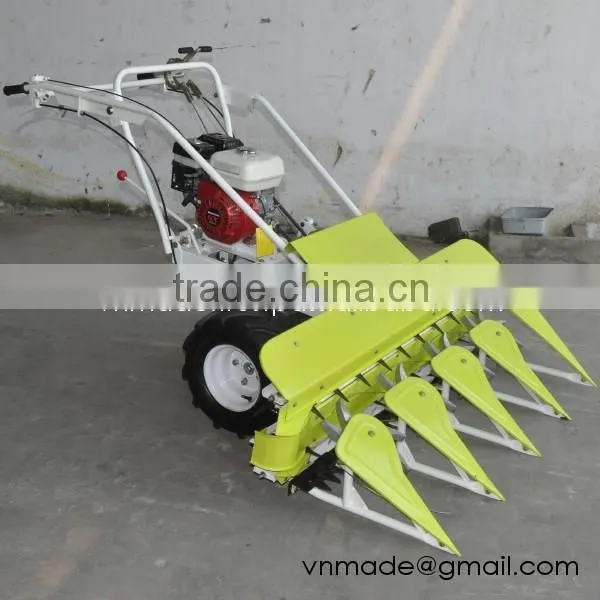

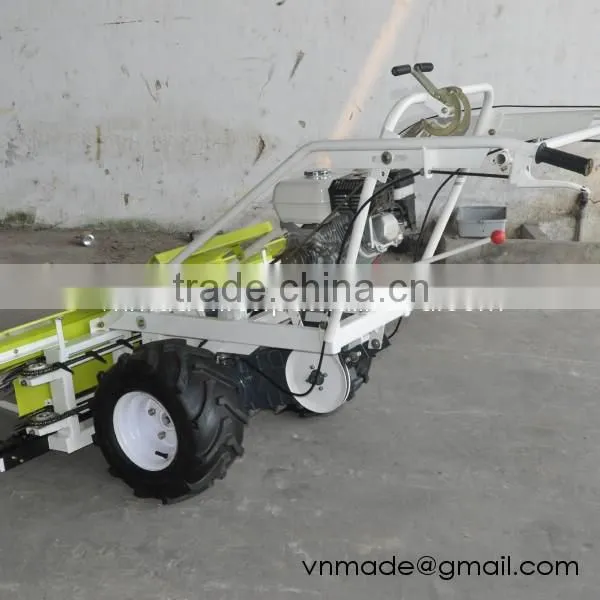

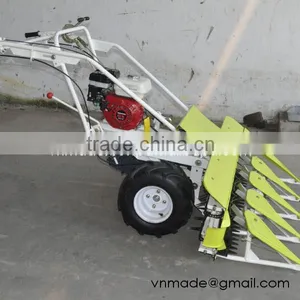

Green Light Wheat Reaper

Name: Green Light Wheat Reaper
Brand: VIET NAM MADE
SKU: 119773199
Availability: InStock

Negotiable MOQ: 30 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Mini Harvester

Drive Type:

Gear Drive

Viet Nam Made Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Ho Chi Minh

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Mini Harvester

Drive Type Gear Drive

Usage Grain Harvester

Place of Origin Vietnam

Brand Name VIET NAM MADE

Model Number NP120R

Dimension(L*W*H) 200 x 135 x 110

Weight 135

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

- Equivalent to 20 reaping labors
- Operating on dry field or flooded field
- Powder coated and Fiction clutch
- Compact

Rice reaper is agricultural machine used to cut the grain, the rice, wheat, pepper, the bean and other crops, suitable for the mountainous region.

Model		NP120R
Type		Paddy/rice reaper
Working capacity (m²/hour)		3000 - 4000
Fuel consumption (litter/hour)		1.0 – 1.5 gasoline
Crop		Rice, wheat
Harvesting loss (%)		1.0 – 1.2
Harvesting field		Dry, wet, or 10cm-water flooded
Maximum angle of inclined crop plant (degree)		60^o
Reaping	Reaping width (cm)	120
	Reaping height (cm)	3 – 50
	Reaping device	Reciprocating blade bar
Engine	Type	4 cycle, air-cooled gasoline
	Power (hp@rpm)	4.5 – 6.5 @ 3600
	Fuel	Gasoline
Travel speed (m/min)	Forward	60
Travel speed (m/min)	Reverse	45
Wheel (cm)		Cage wheel: 46 x 22 Option: lug tire wheel: 45 x 23
Operation and Control	Main clutch	Dog clutch
	Harvesting clutch	Dog clutch
	Height adjustment and handle (cm)	75 - 90
Delivery	Upper delivery device	Revolving chain with lug plates
	Lower delivery device	Revolving chain
	Crop plant release	Right side (viewed from rear of machine)
Dimension	L x W x H (cm)	200 x 135 x 110
Dimension	Weight (without engine) (kg)	135
