Rice reaper NP 120R is agricultural machine used to cut the grain, the rice, wheat, pepper, the bean and other crops, suitable for the mountainous region.
Model |
NP 120R |
|
Type |
Paddy/rice reaper |
|
Working capacity (m2/hour) |
3000 - 4000 |
|
Fuel consumption (litter/hour) |
1.0 – 1.5 gasoline |
|
Crop |
Rice, wheat |
|
Harvesting loss (%) |
1.0 – 1.2 |
|
Harvesting field |
Dry, wet, or 10cm-water flooded |
|
Maximum angle of inclined crop plant (degree) |
60o |
|
Reaping |
Reaping width (cm) |
120 |
Reaping height (cm) |
3 – 50 |
|
Reaping device |
Reciprocating blade bar |
|
Engine |
Type |
4 cycle, air-cooled gasoline |
Power (hp@rpm) |
4.5 – 6.5 @ 3600 |
|
Fuel |
Gasoline |
|
Travel speed (m/min) |
Forward |
60 |
Reverse |
45 |
|
Wheel (cm) |
Cage wheel: 46 x 22 Option: lug tire wheel: 45 x 23 |
|
Operation and Control |
Main clutch |
Dog clutch |
Harvesting clutch |
Dog clutch |
|
Height adjustment and handle (cm) |
75 - 90 |
|
Delivery |
Upper delivery device |
Revolving chain with lug plates |
Lower delivery device |
Revolving chain |
|
Crop plant release |
Right side (viewed from rear of machine) |
|
Dimension |
L x W x H (cm) |
200 x 135 x 110 |
Weight (without engine) (kg) |
135 |
|

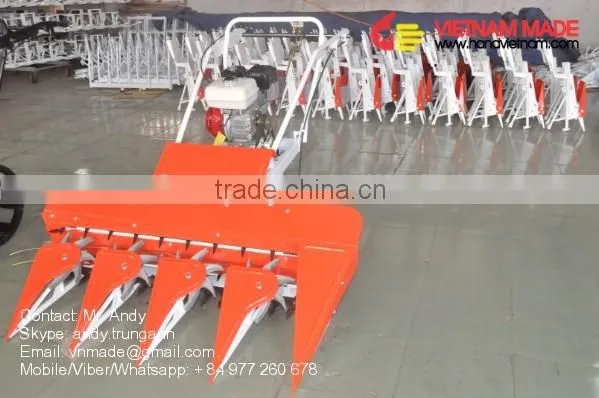

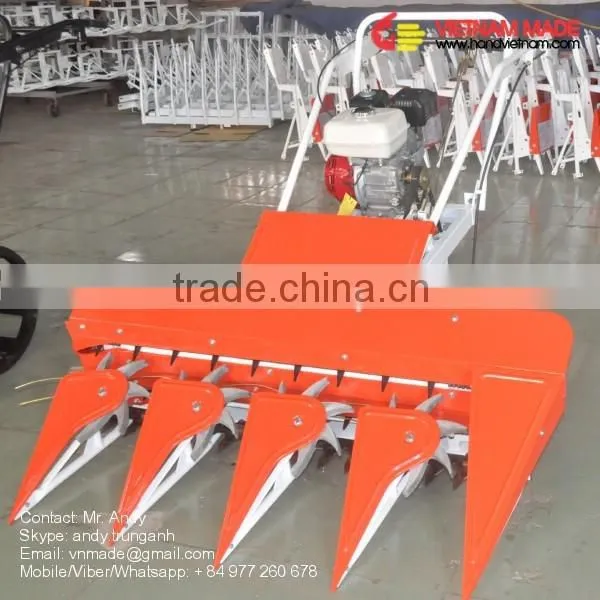

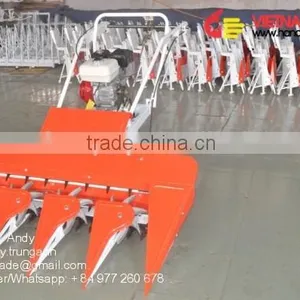

Rice reaper NP 120R (Rubber wheels + gasoline engine 6.5 HP)

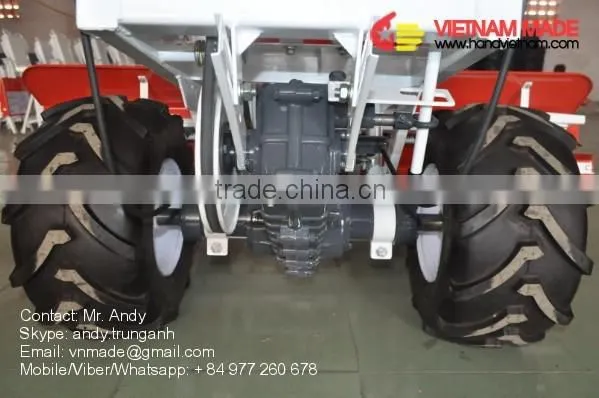

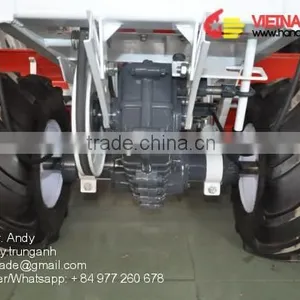

Rubber wheels

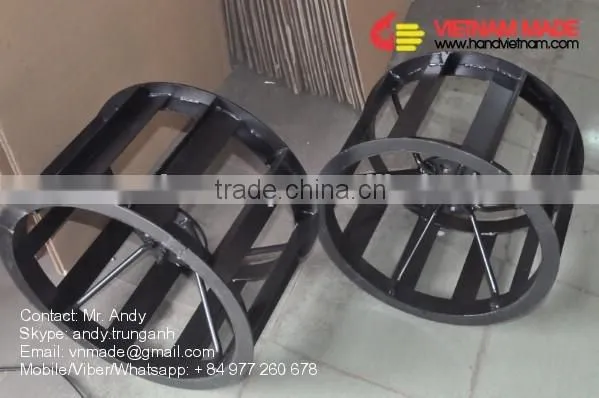

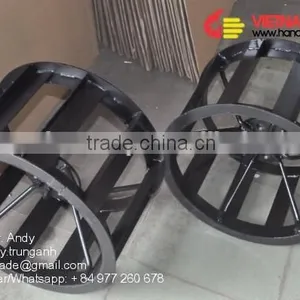

Iron wheels

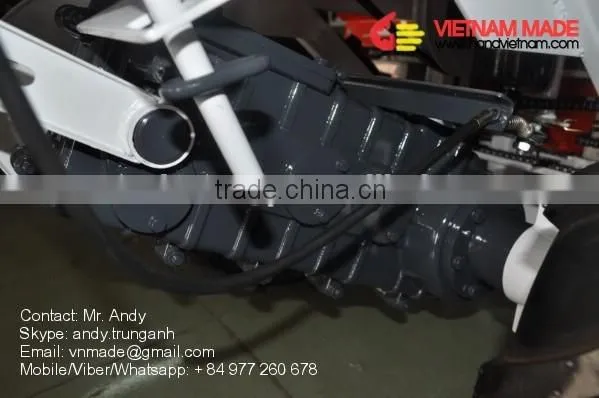

Aluminum gear box

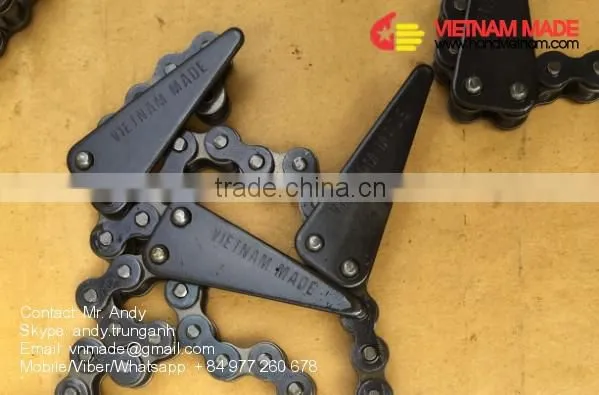

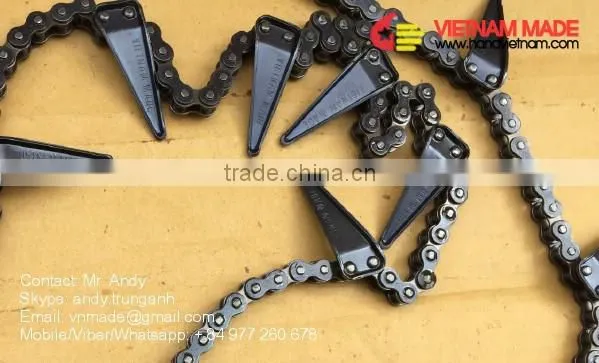

High quality chain

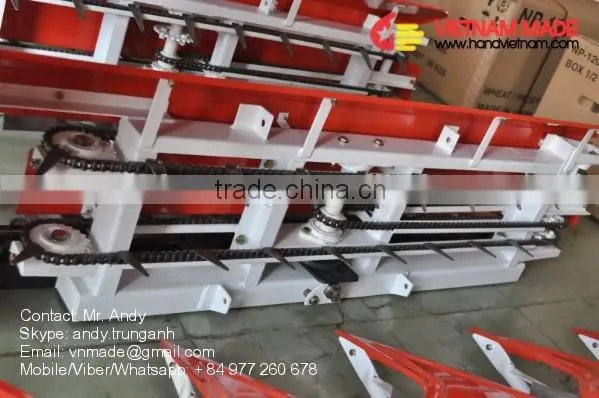

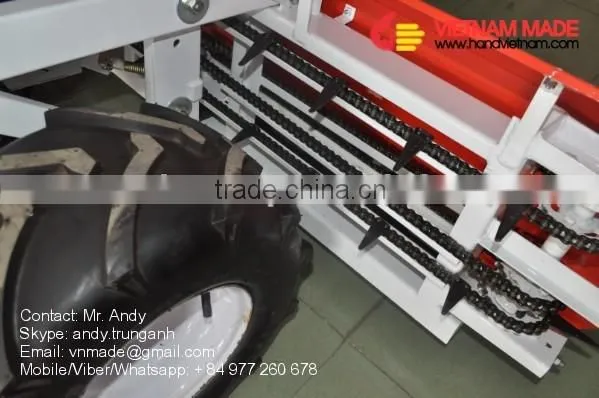

Forwarding chains

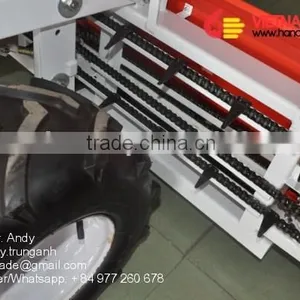

Lower forwarding chains
Upper forwarding chains

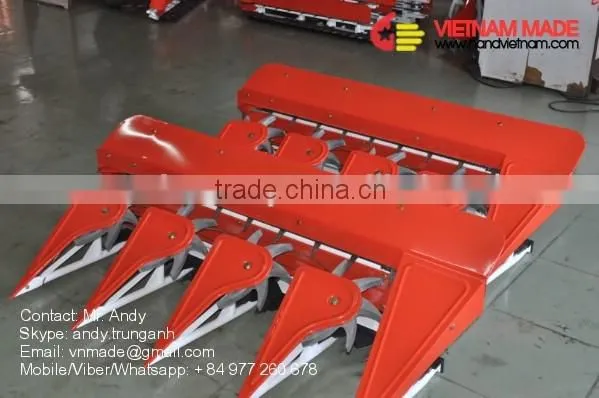

Head of reaper
Accessories & tool box in each reaper
1 set rice reaper NP 120R is packed in 2 carton box (no engine)
Assembling process
Assembling process
Iron wheels ready to ship overseas
Rice Reapers NP 120R are loads in container.
20 FT can load 28 sets (without engine)
40HC can load 66 sets (without engine)
