Help CenterBrand New Rice Reaper AR 120
Related Products
Rice reaper NP 120R is agricultural machine used to cut the grain, the rice, wheat, pepper, the bean and other crops, suitable for the mountainous region.
Model |
AR 120 |
|
Type |
Paddy/rice reaper |
|
Working capacity (m2/hour) |
3000 - 4000 |
|
Fuel consumption (litter/hour) |
1.0 – 1.5 gasoline |
|
Crop |
Rice, wheat |
|
Harvesting loss (%) |
1.0 – 1.2 |
|
Harvesting field |
Dry, wet, or 10cm-water flooded |
|
Maximum angle of inclined crop plant (degree) |
60o |
|
Reaping |
Reaping width (cm) |
120 |
Reaping height (cm) |
3 – 50 |
|

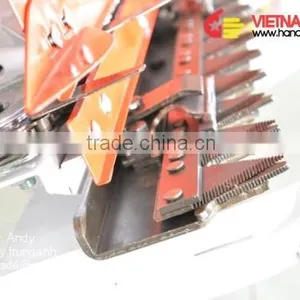

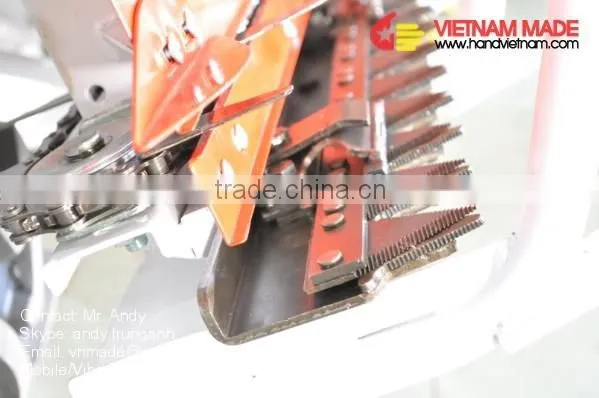

Reaping device |
Reciprocating blade bar |
|
Engine |
Type |
4 cycle, air-cooled gasoline |
Power (hp@rpm) |
6.5 @ 1800rpm |
|
Fuel |
Gasoline |
|
Travel speed (m/min) |
Forward |
59 |
Reverse |
50 |
|
Wheel (cm) |
Cage wheel: 46 x 18 Option: lug tire wheel: 48 x 24 |
|
Operation and Control |
Main clutch |
Dog clutch |
Harvesting clutch |
Dog clutch |
|
Height adjustment and handle (cm) |
75 - 90 |
|
Delivery |
Upper delivery device |
Revolving chain with lug plates |
Lower delivery device |
Revolving chain |
|
Crop plant release |
Right side (viewed from rear of machine) |
|
Dimension |
L x W x H (cm) |
220 x 135 x 150 |
Weight (without engine) (kg) |
126 |
|

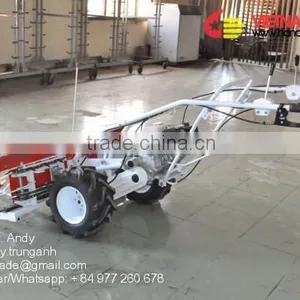

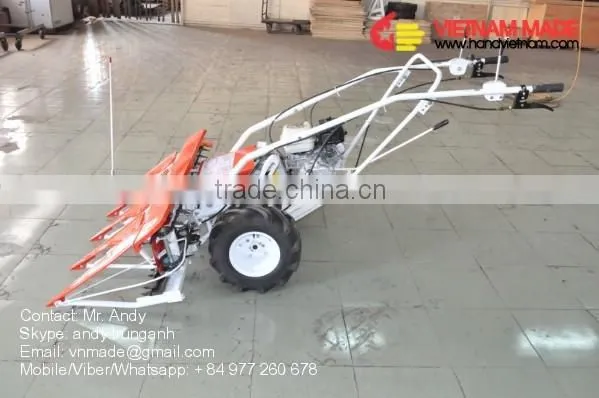

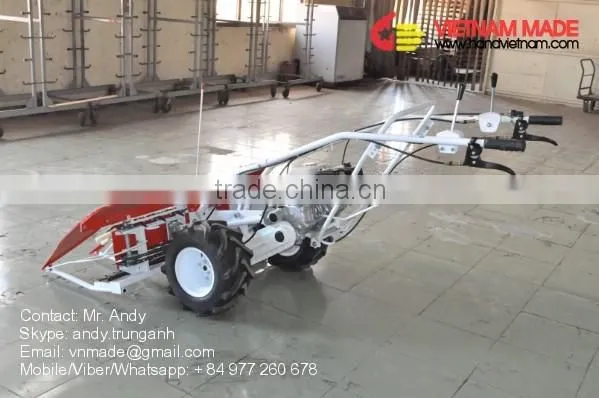

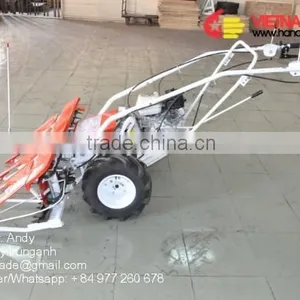

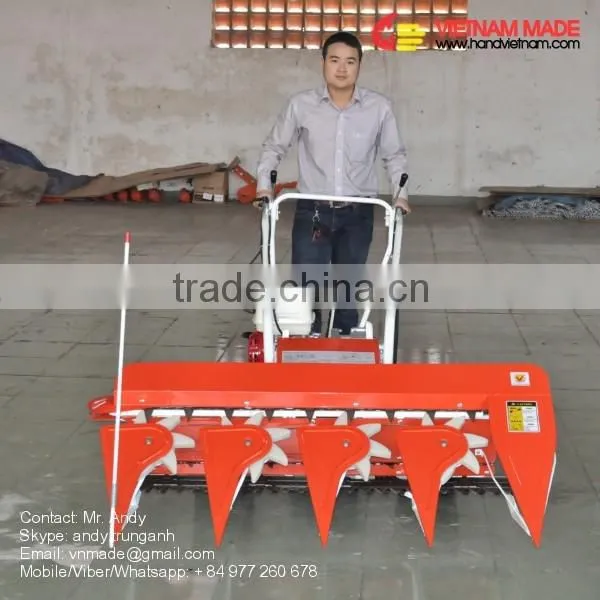

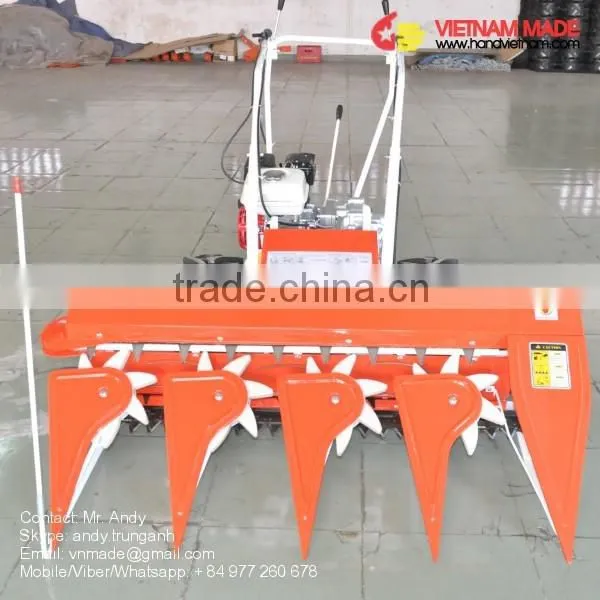

Rice reaper AR 120 (Rubber wheels + gasoline engine 6.5 HP (1800rpm)

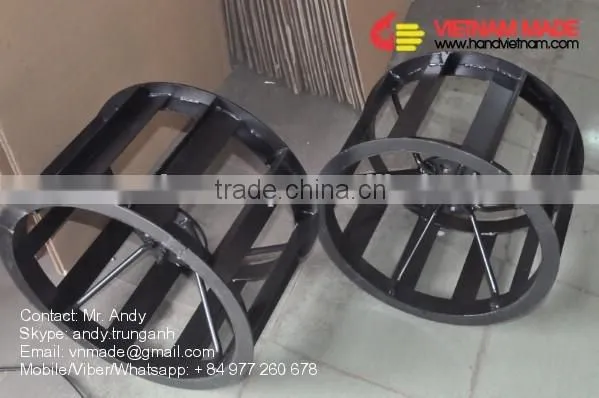

Iron wheels

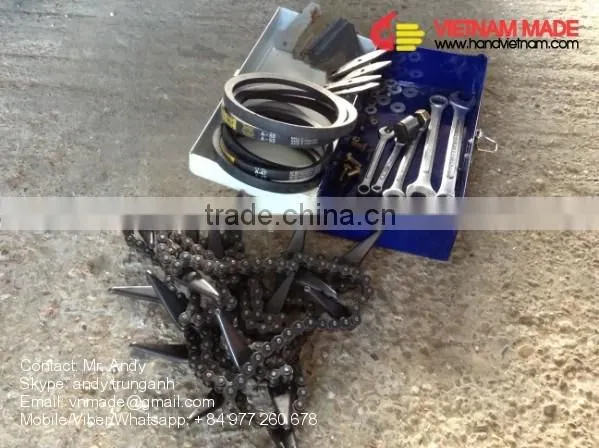

Accessories & tool box in each reaper

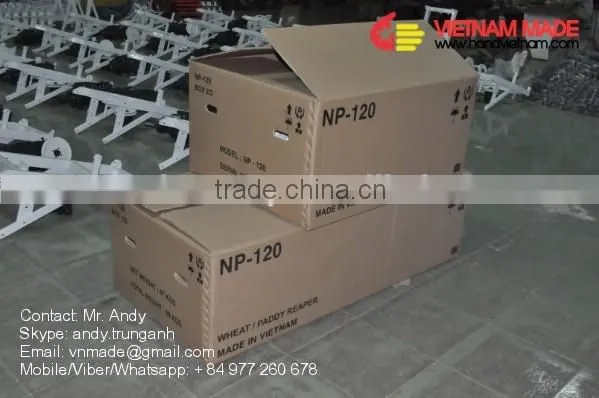

1 set rice reaper AR 120 is packed in 2 carton box (no engine)

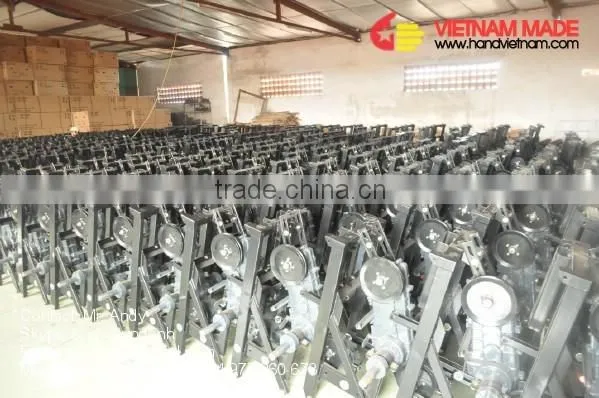

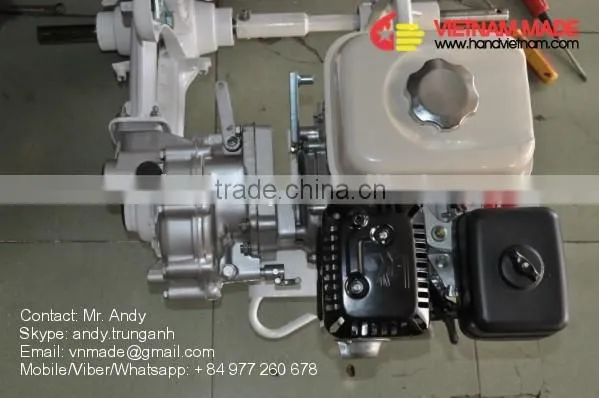

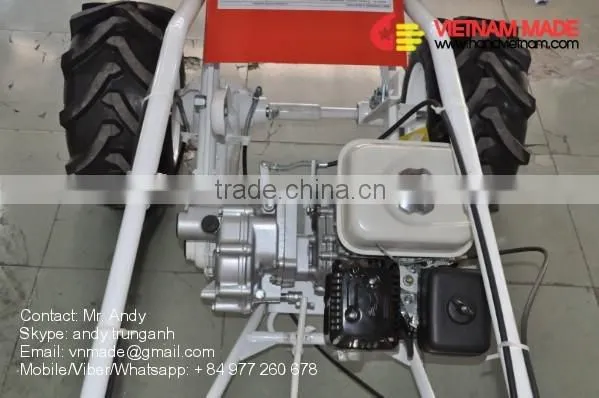

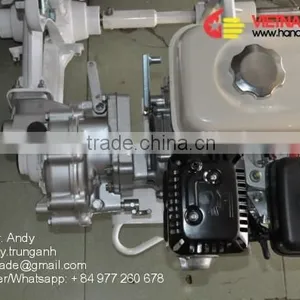

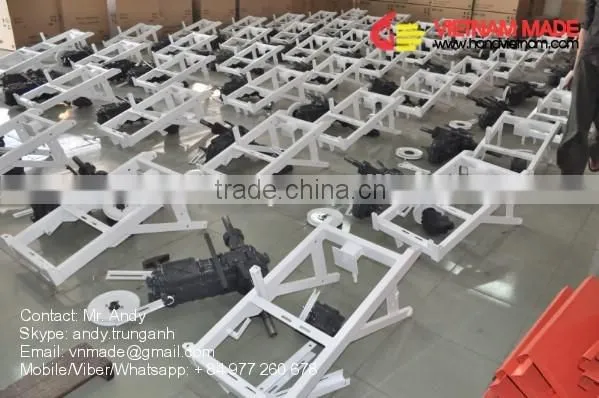

Assembling process
Assembling process

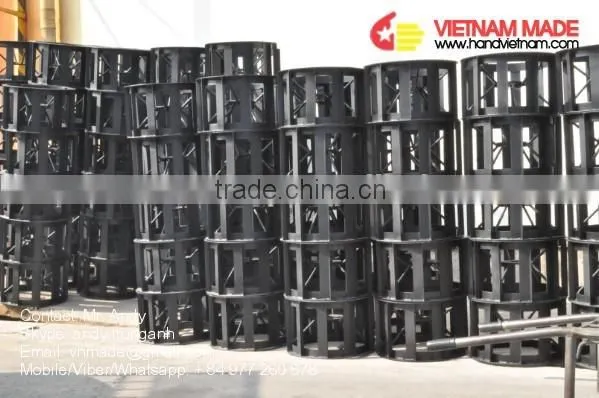

Iron wheels ready to ship overseas

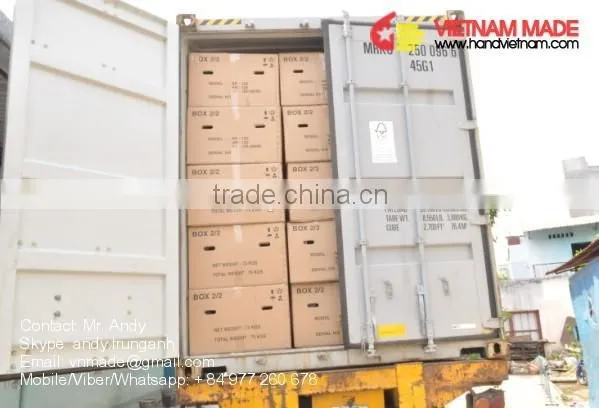

Rice Reapers AR 120 are loads in container.
20 FT can load 28 sets (without engine)
40HC can load 66 sets (without engine)
