The Compressor 37KW Used for Swimming Pool

The Compressor 37KW Used for Swimming Pool thumbnail-1
The Compressor 37KW Used for Swimming Pool thumbnail-2
The Compressor 37KW Used for Swimming Pool thumbnail-3

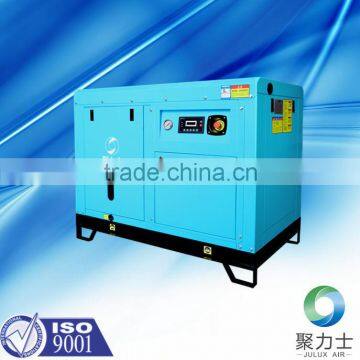

The Compressor 37KW Used for Swimming Pool photo-1
The Compressor 37KW Used for Swimming Pool photo-2
The Compressor 37KW Used for Swimming Pool photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Portable
Contact Supplier Request Quote Chat Now
Fuzhou Xuli Machinery Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Mawei
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Screw
Configuration Portable
Power Source AC Power
Lubrication Style Lubricated
Mute Yes
Place of Origin Fujian, China
Brand Name JULUX AIR
Model Number JLS-7.5F
Voltage 220V/380V/415V(customizable)
Dimension(L*W*H) 750x730x840mm
Weight 220KG
Certification ISO9001-2008
After-sales Service Provided No overseas service provided

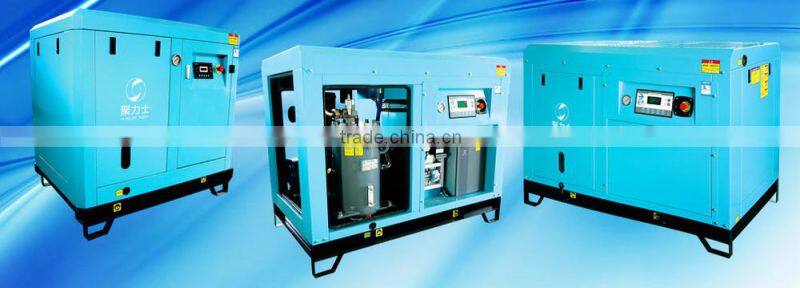

Portable air compressor for spray painting



The compressor 37KW used for swimming pool

ABOUT US:

Fuzhou Xuli Machinery industrial Co.,Ltd. is a manufacturer of screw air compressor with well-equipped testing facilities and strong technical forces.Business is including designing,R&D,production ,sales and services etc.



Founded in 1995 and located at a beauty city called Fuzhou,for now we have 5000 sqm workshop ,most professional CNC processing machine. great management & technological team . The employs are more than 100 people ,including senior engineers,designers , Technicians etc.



We have our own brand ,and also we are able to provide various kinds of screw air compressor base on our clients require.And our products is well recognized because of it's efficient ,energy-saving,low operation noise and great damping effect.



We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



The compressor 37KW used for swimming pool





Main accessories
The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool

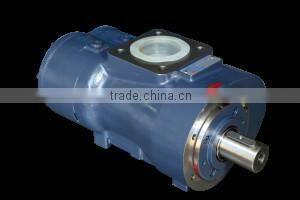

Great free air delivery , low noise and low vibration ,adopted the most advanced design , made of high alloy steel materials and tested by balance and static balance before delivery , guarantee the longer life of the host.

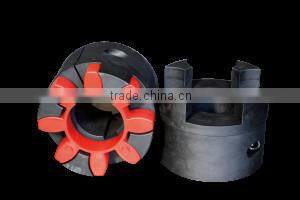

Using high-quality elastic coupling which is with the characteristics of oil resistivity,

heat resistance and maintenance-free

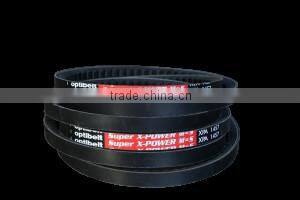

 Specialized and strong drive belt ,easy to install & maintain ,service life is 3 to 5 times longer than normal belt

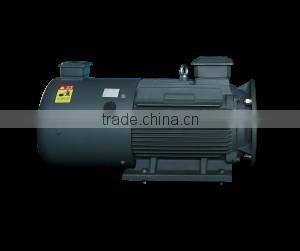

Model: Totally enclosed motor

Bearing: SKF

Service life: More than 50000 Hours

Protection Rank: IP55

Insulation: F

Temperature Rise test level: B


The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool

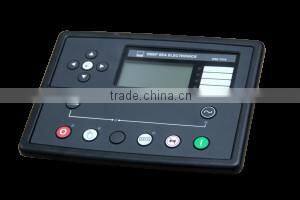

The patented Microcomputer intelligent control system which developed by our company, Is able to self-diagnosis and self-protection. It will alarm for the overload of host, the over-high exhaust temperature, the motor rotates inversely, the overload of fan power, and the sensor fault on the control panel, can be controlled remote and work safely under unattended.

The system can be used for more than 2 million times without any trouble, adjust the volume of the air according to the real needed, saving much energy and the cost for the enterprises.

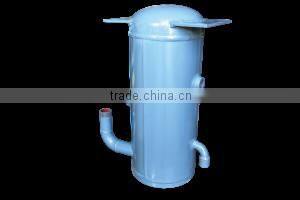

With a large-sized mechanical cyclone, the separate load can be lightened significantly. Galvanizing finishing avoid rust and prevent impurities entering into back-end valves or controlled system as well.

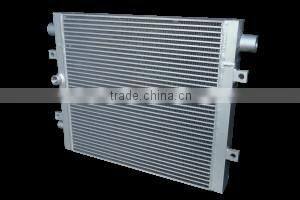

After accurate scientific computation,we explore out a new design cooler which is able to protect machine effectively from overheating. Moreover, releasing 30% stock heat to reduces carbon deposits which caused by high temperature. Under special anticorrosion treatment, it could well adapt extreme operational conditions and extend the service life.


The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool The compressor 37KW used for swimming pool

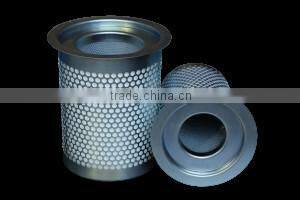

Three-stage oil-gas separation system--centrifugal, gravity and fine instrument--With built-in efficient oil-gas separator core, to ensure the oil content of compressed air at 2 ~ 3 PPM, pressure loss is less than 0.02 Mpa , reduce oil mist emission, reduce the loss of the lubricant , thus to reduce the cost.

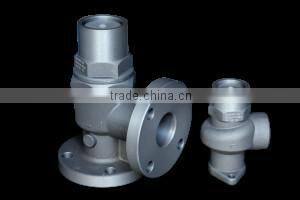

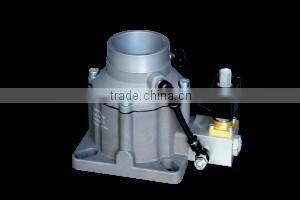

The service life of the valve is over 50,000 hours. Adjust the pressure to a suitable level at a high rate of speed during machine running, protect the oil filters and ensure enough lubricant of the headpiece and air-tight of the pipeline system, thus make the machine running safely and stably.

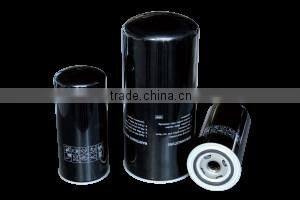

Use advanced oil filter of which the Filtration precision reaches to 5μ, Provide great  protection for the host.

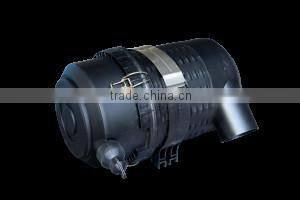

Use senior filter medium of which the result ofdust prevention approaching 99.9%, thus prolong the service life of the air system.



 Part 1 TECHNICAL PARAMETERS:

Model JLS-7.5F JLS-11F JLS -15F JLS-18.5F JLS-22 F/S JLS-30 F/S JLS-37 F/S JLS-45 F/S JLS-55 F/S JLS-75 F/S

Free Air Delivery

(m3/min)
Discharge Pressuer

(Mpa)

 1.4/0.7 2.03/0.7 2.6/0.7 3.2/0.7 3.95/0.7 5.25/0.7 6.82/0.7 8.03/0.7 10.8/0.7 14.1/0.7
1.3/0.8 1.81/0.8 2.4/0.8 2.92/0.8 3.8/0.8 5.06/0.8 6.46/0.8 7.61/0.8 10.2/0.8 13.3/0.8
1.1/1.0 1.51/1.0 2.0/1.0 2.65/1.0 3.2/1.0 4.53/1.0 5.83/1.0 7.0/1.0 9.0/1.0 11.6/1.0
1.0/1.25 1.2/1.25 1.7/1.25 2.1/1.25 2.8/1.25 3.9/1.25 5.06/1.25 6.1/1.25 8.4/1.25 10.0/1.25
Motor Voltage/Frequency V/Hz 220V/ 380V/ 415V  & 50HZ/ 60HZ
Power KW/HP 7.5/10 11./15 15/20 18.5/25 22/30 30/40 37/50 45/60 55/75 75/10
Motorspeed RPM 2930 2940 2950 297
Sarting Method  Y-ΔStarting / Soft starting/ Frequency conversion
Cooling Mode Air cooling Air/water cooling
Discharge Temp °C  Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C
Noise dB(A) <68±2 <70±2 <75 ±2
Oil content of compressed air  < 2ppm

Dimension		 Length mm 750 945 945 1050 1050 1120 1170 1220 1500 1950
Width mm 730 706 706 780 780 800 880 915 1150 1450
Height mm 840 1125 1125 1125 1125 1200 1350 1450 1580 1500
Air Outlet Pipe Diameter inch G3/4 G1" G1" G1 1/4" G1 1/4" G1 1/4" G1 1/2" G1 1/2" DN50 DN50
Cooling Water Pipe Diameter m3/h - - - - - - - - 5.0 6.8
Net Weight KG 220 260 290 460 480 550 650 700 1180 1350



Part 2

Model JLS-90F/S JLS-110F/S JLS-132F/S JLS-160F/S JLS-185F/S JLS-200F/S JLS-220F/S JLS-250F/S

Free Air Delivery

(m3/min)
Discharge Pressuer

(Mpa)

 17.2/0.7 21.6/0.7 25.6/0.7 30.0/0.7 34.2/0.7 38.6/0.7 42.8/0.7 45.0/0.7
16.5/0.8 20.6/0.8 24.0/0.8 29.0/0.8 33.0/0.8 37.4/0.8 40.0/0.8 43.1/0.8
15.0/1.0 19.0/1.0 22.0/1.0 26.2/1.0 30.0/1.0 34.0/1.0 36.5/1.0 39.5/1.0
13.2/1.25 17.5/1.25 19.0/1.25 24.5/1.25 28.0/1.25 32.0/1.25 34.0/1.25 36.3/1.25
Motor Voltage/Prequency V/Hz 220V/ 380V/ 415V  & 50HZ/ 60HZ
Power KW/HP 90/125 110/150 132/180 160/220 185/250 200/270 220/300 250/340
Motor speed RPM 2970 2980
Sarting Method  Y-ΔStarting / Soft Starting/ Prequency conversion
Cooling Model  Air / water cooling
Discharge Temp °C  Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C
Noise dB(A) <75±2 <78±2
Oil content of compressed air  < 2ppm

Dimension		 Length mm 2000 2300 2300 2600 2600 2600 2800 2800
Width mm 1450 1700 1700 1750 1750 1750 2000 2000
Height mm 1500 1610 1610 1910 1910 1910 2000 2000
Air Outlet Pipe Diameter inch DN50 DN65 DN65 DN80 DN80 DN100 DN100 DN100
Cooling Water Pipe Diameter m3/h 8.0 10.0 12.0 14.5 16.8 18.0 20.0 23.0
Net Weight KG 1450 1950 2200 2650 3800 4100 4500 4550
