Paired Screw Air Compressor for Quarry
- 300 Set / Sets per Month
- Mawei
- T/T Credit Card
- 2016 Christmas decoration wool felt balls
- Atlas Copco diesel portable compressor XAHS650E in stock
- Atlas Copco diesel portable air compressor Y1300 in stock
- Atlas Copco diesel portable air compressor XAS88 in stock
- Atlas Copco diesel portable air compressor XRHX930E in stock
- Atlas Copco diesel Medium and high pressure air compressor B7-41
Product Details
Condition: | New | Type: | Screw | Configuration: | Stationary |
Power Source: | AC Power | Lubrication Style: | Lubricated | Mute: | Yes |
Place of Origin: | Fujian, China | Brand Name: | JULUX AIR | Model Number: | JLS-37F |
Voltage: | 220V/380V/415V(customizable) | Dimension(L*W*H): | 1170x880x1350mm | Weight: | 650KG |
Certification: | ISO9001-2008 | After-sales Service Provided: | No overseas service provided |
Product Description
Paired Screw Air Compressor for Quarry

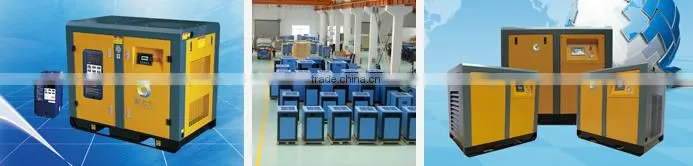

OUR PRODUCTS:

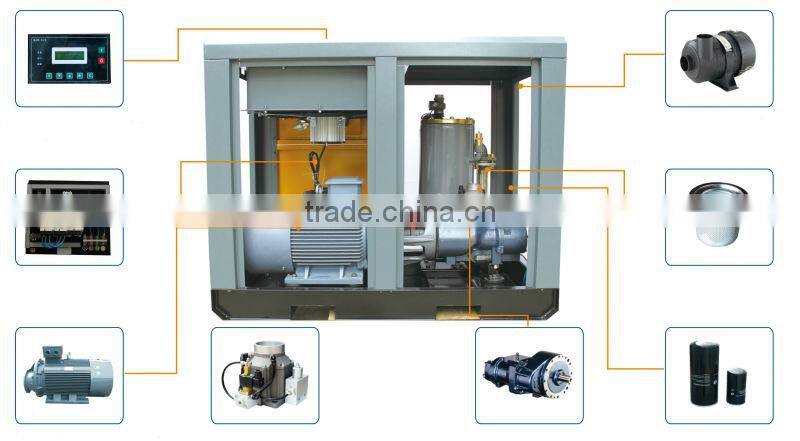

STRUCTURE:
OUR ADVANTAGES:

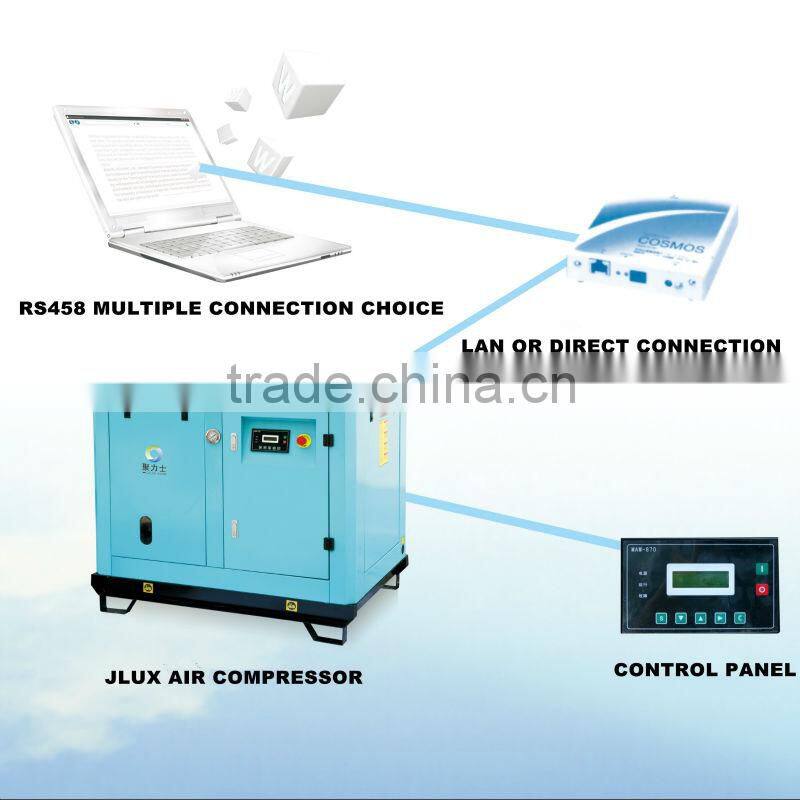

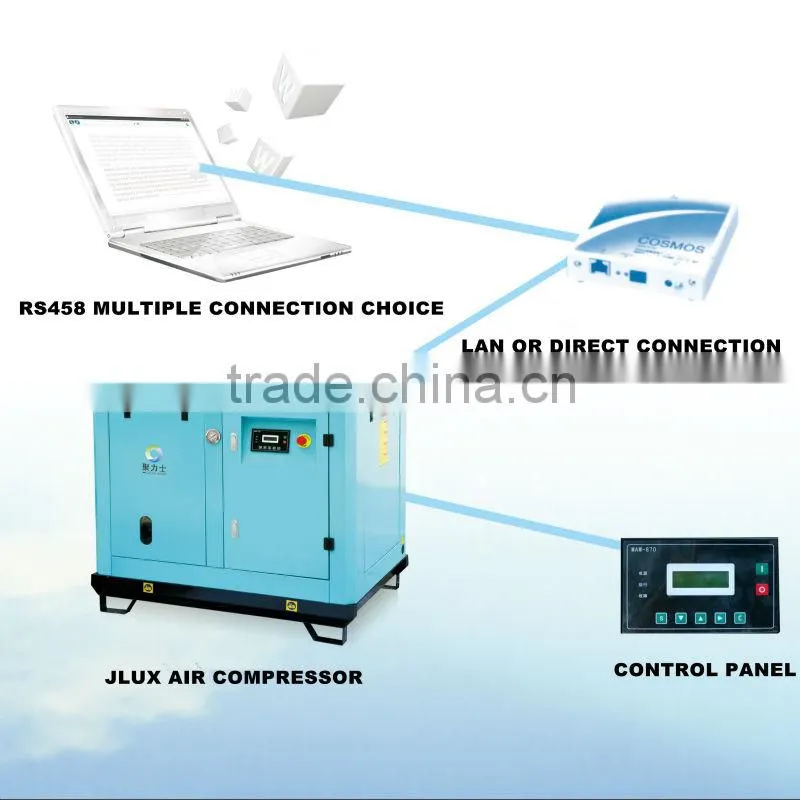

1.PLC microcomputer control systerm, saving labor cost ,can be remote control. .
2.Top quality motor,low working speed, high efficiency, high power.
3.Special &reasonable shell design , low machine vibration ,low nosie,energy saving.
4.Environmental friendly.

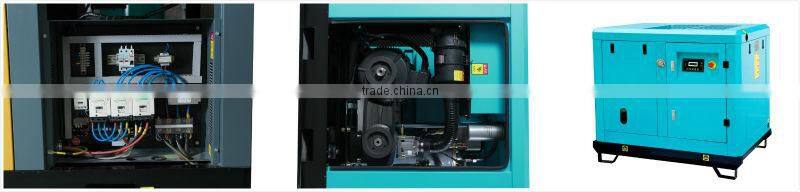

WE ARE FOCUS ON EVERY DETAILS:
TECHNICAL PARAMETERS:
Part 1
Model | JLS-7.5F | JLS-11F | JLS -15F | JLS-18.5F | JLS-22 F/S | JLS-30 F/S | JLS-37 F/S | JLS-45 F/S | JLS-55 F/S | JLS-75 F/S | ||||
Free Air Delivery (m3/min) (Mpa) | 1.4/0.7 | 2.03/0.7 | 2.6/0.7 | 3.2/0.7 | 3.95/0.7 | 5.25/0.7 | 6.82/0.7 | 8.03/0.7 | 10.8/0.7 | 14.1/0.7 | ||||
1.3/0.8 | 1.81/0.8 | 2.4/0.8 | 2.92/0.8 | 3.8/0.8 | 5.06/0.8 | 6.46/0.8 | 7.61/0.8 | 10.2/0.8 | 13.3/0.8 | |||||
1.1/1.0 | 1.51/1.0 | 2.0/1.0 | 2.65/1.0 | 3.2/1.0 | 4.53/1.0 | 5.83/1.0 | 7.0/1.0 | 9.0/1.0 | 11.6/1.0 | |||||
1.0/1.25 | 1.2/1.25 | 1.7/1.25 | 2.1/1.25 | 2.8/1.25 | 3.9/1.25 | 5.06/1.25 | 6.1/1.25 | 8.4/1.25 | 10.0/1.25 | |||||
Motor | Voltage/Frequency | V/Hz | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||||||||||
Power | KW/HP | 7.5/10 | 11./15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/10 | |||
Motorspeed | RPM | 2930 | 2940 | 2950 | 297 | |||||||||
Sarting Method | Y-ΔStarting / Soft starting/ Frequency conversion | |||||||||||||
Cooling Mode | Air cooling | Air/water cooling | ||||||||||||
Discharge Temp | °C | Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C | ||||||||||||
Noise | dB(A) | <68±2 | <70±2 | <75 ±2 | ||||||||||
Oil content of compressed air | < 2ppm | |||||||||||||
Dimension | Length | mm | 750 | 945 | 945 | 1050 | 1050 | 1120 | 1170 | 1220 | 1500 | 1950 | ||
Width | mm | 730 | 706 | 706 | 780 | 780 | 800 | 880 | 915 | 1150 | 1450 | |||
Height | mm | 840 | 1125 | 1125 | 1125 | 1125 | 1200 | 1350 | 1450 | 1580 | 1500 | |||
Air Outlet Pipe Diameter | inch | G3/4 | G1" | G1" | G1 1/4" | G1 1/4" | G1 1/4" | G1 1/2" | G1 1/2" | DN50 | DN50 | |||
Cooling Water Pipe Diameter | m3/h | - | - | - | - | - | - | - | - | 5.0 | 6.8 | |||
Net Weight | KG | 220 | 260 | 290 | 460 | 480 | 550 | 650 | 700 | 1180 | 1350 |
Part 2
Model | JLS-90F/S | JLS-110F/S | JLS-132F/S | JLS-160F/S | JLS-185F/S | JLS-200F/S | JLS-220F/S | JLS-250F/S | ||||
Free Air Delivery (m3/min) (Mpa) | 17.2/0.7 | 21.6/0.7 | 25.6/0.7 | 30.0/0.7 | 34.2/0.7 | 38.6/0.7 | 42.8/0.7 | 45.0/0.7 | ||||
16.5/0.8 | 20.6/0.8 | 24.0/0.8 | 29.0/0.8 | 33.0/0.8 | 37.4/0.8 | 40.0/0.8 | 43.1/0.8 | |||||
15.0/1.0 | 19.0/1.0 | 22.0/1.0 | 26.2/1.0 | 30.0/1.0 | 34.0/1.0 | 36.5/1.0 | 39.5/1.0 | |||||
13.2/1.25 | 17.5/1.25 | 19.0/1.25 | 24.5/1.25 | 28.0/1.25 | 32.0/1.25 | 34.0/1.25 | 36.3/1.25 | |||||
Motor | Voltage/Prequency | V/Hz | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||||||||
Power | KW/HP | 90/125 | 110/150 | 132/180 | 160/220 | 185/250 | 200/270 | 220/300 | 250/340 | |||
Motor speed | RPM | 2970 | 2980 | |||||||||
Sarting Method | Y-ΔStarting / Soft Starting/ Prequency conversion | |||||||||||
Cooling Model | Air / water cooling | |||||||||||
Discharge Temp | °C | Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C | ||||||||||
Noise | dB(A) | <75±2 | <78±2 | |||||||||
Oil content of compressed air | < 2ppm | |||||||||||
Dimension | Length | mm | 2000 | 2300 | 2300 | 2600 | 2600 | 2600 | 2800 | 2800 | ||
Width | mm | 1450 | 1700 | 1700 | 1750 | 1750 | 1750 | 2000 | 2000 | |||
Height | mm | 1500 | 1610 | 1610 | 1910 | 1910 | 1910 | 2000 | 2000 | |||
Air Outlet Pipe Diameter | inch | DN50 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 | |||
Cooling Water Pipe Diameter | m3/h | 8.0 | 10.0 | 12.0 | 14.5 | 16.8 | 18.0 | 20.0 | 23.0 | |||
Net Weight | KG | 1450 | 1950 | 2200 | 2650 | 3800 | 4100 | 4500 | 4550 |
ABOUT US:
Fuzhou Xuli Machinery industrial Co.,Ltd. is a manufacturer of screw air compressor with well-equipped testing facilities and strong technical forces.Business is including designing,R&D,production ,sales and services etc.

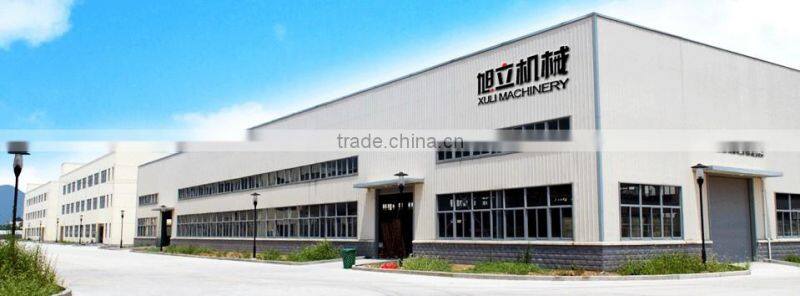

Founded in 1995 and located at a beauty city called Fuzhou,for now we have 5000 sqm workshop ,most professional CNC processing machine. great management & technological team . The employs are more than 100 people ,including senior engineers,designers , Technicians etc.
We have our own brand ,and also we are able to provide various kinds of screw air compressor base on our clients require.And our products is well recognized because of it's efficient ,energy-saving,low operation noise and great damping effect.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
