Home > Industrial Equipment & Components > Compressor > Compressor Unit > 2014 China Scuba Air Compressor Used for Swimming Pool
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
Mawei
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7 Bar / 8bar / 10 Bar Portable Twin Screw Air Compressor for Spray PaintingNegotiableMOQ: 1 Unit -
300 PSI Duplex Screw Air Compressor Portable Air Compressor Silent Air CompressorNegotiableMOQ: 1 Unit
-
250psi Configuration Industrial Air Conditioner CompressorNegotiableMOQ: 1 Unit
-
Paired Screw Air Compressor for QuarryNegotiableMOQ: 1 Unit
-
110kw High Efficiency Mobile Distributor Needed Screw Air CompressorNegotiableMOQ: 1 Unit
Condition
New
Type
Screw
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Yes
Place of Origin
Fujian, China
Brand Name
JULUX AIR
Model Number
JLS-132F
Voltage
220V/380V/415V(customizable)
Dimension(L*W*H)
1170x880x1350mm
Weight
950KG
Certification
ISO9001-2008
After-sales Service Provided
No overseas service provided

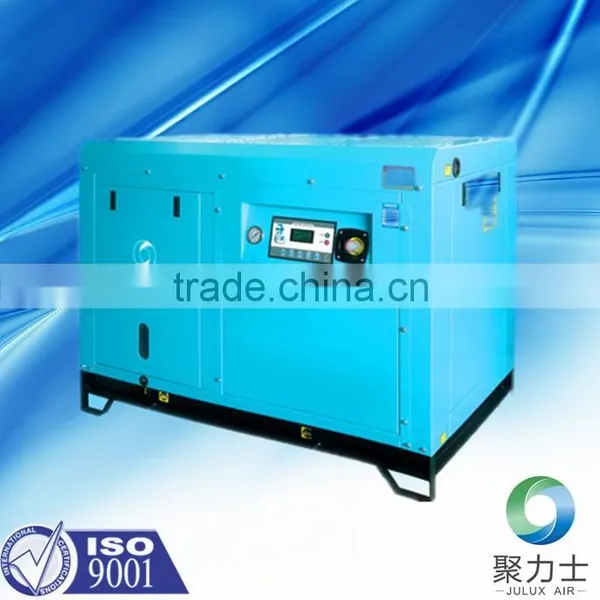

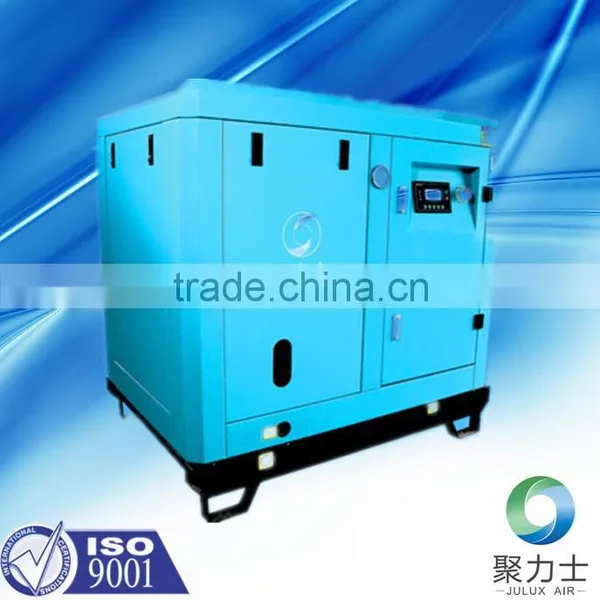

2014 new styles China rotary screw air compressors
About us

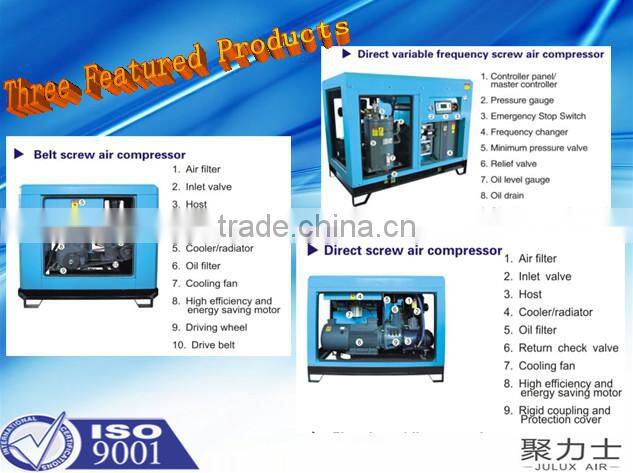

Our major types of screw air compressor

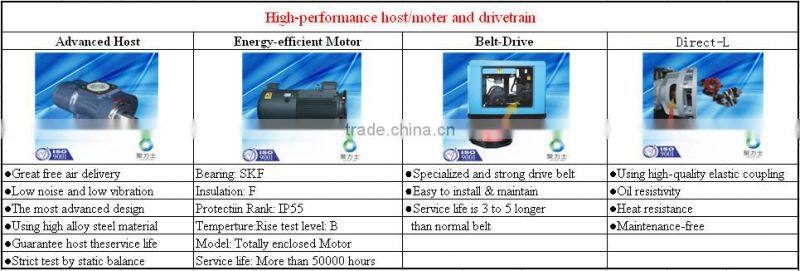

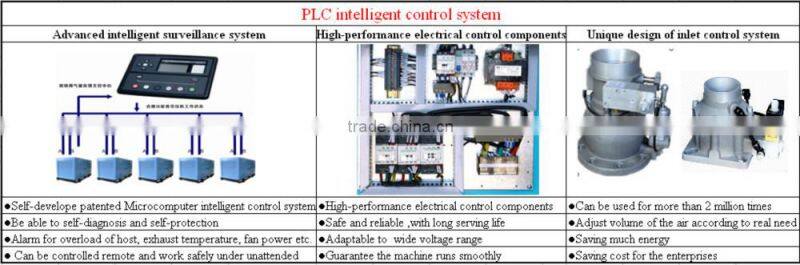

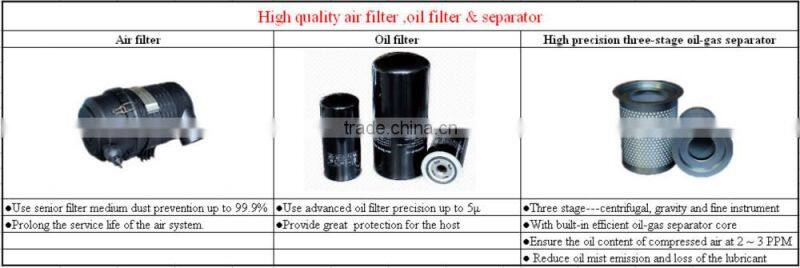

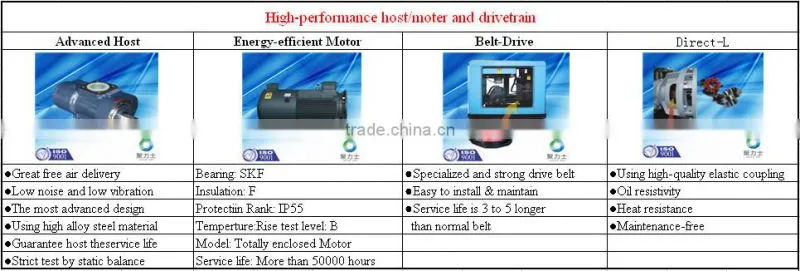

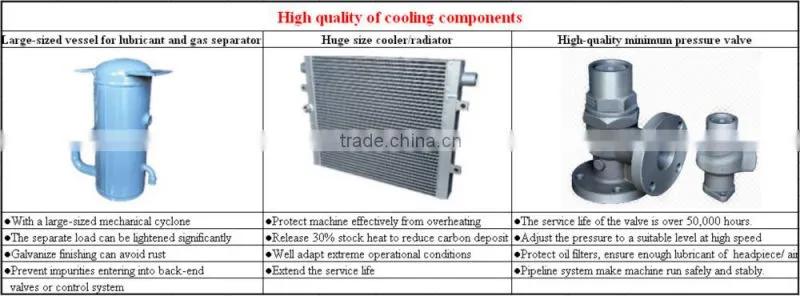

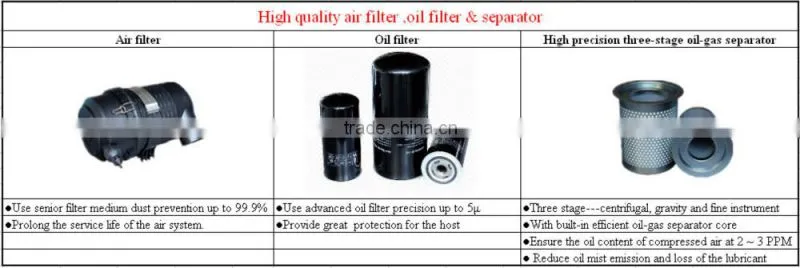

Details determine success--Every accessory is our focus

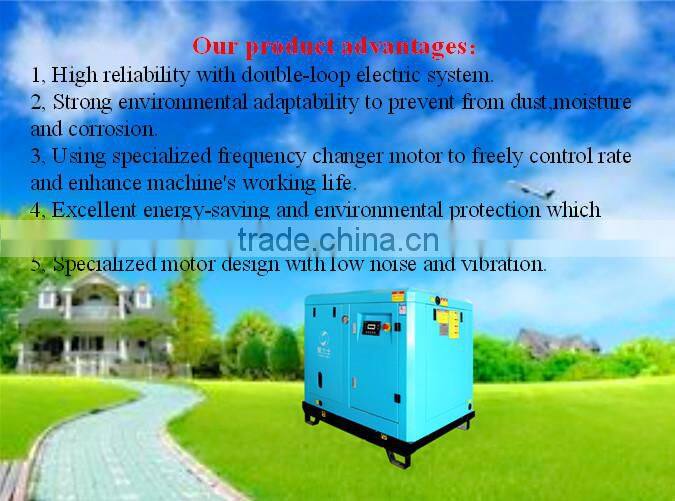

Our product advantage:
Technical Parameters of the Screw Air Compressor for reference
Part 1
| Model | JLS-7.5F | JLS-11F | JLS -15F | JLS-18.5F | JLS-22 F/S | JLS-30 F/S | JLS-37 F/S | JLS-45 F/S | JLS-55 F/S | JLS-75 F/S | ||||
Free Air Delivery (m3/min) (Mpa) | 1.4/0.7 | 2.03/0.7 | 2.6/0.7 | 3.2/0.7 | 3.95/0.7 | 5.25/0.7 | 6.82/0.7 | 8.03/0.7 | 10.8/0.7 | 14.1/0.7 | ||||
| 1.3/0.8 | 1.81/0.8 | 2.4/0.8 | 2.92/0.8 | 3.8/0.8 | 5.06/0.8 | 6.46/0.8 | 7.61/0.8 | 10.2/0.8 | 13.3/0.8 | |||||
| 1.1/1.0 | 1.51/1.0 | 2.0/1.0 | 2.65/1.0 | 3.2/1.0 | 4.53/1.0 | 5.83/1.0 | 7.0/1.0 | 9.0/1.0 | 11.6/1.0 | |||||
| 1.0/1.25 | 1.2/1.25 | 1.7/1.25 | 2.1/1.25 | 2.8/1.25 | 3.9/1.25 | 5.06/1.25 | 6.1/1.25 | 8.4/1.25 | 10.0/1.25 | |||||
| Motor | Voltage/Frequency | V/Hz | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||||||||||
| Power | KW/HP | 7.5/10 | 11./15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/10 | |||
| Motorspeed | RPM | 2930 | 2940 | 2950 | 297 | |||||||||
| Sarting Method | Y-ΔStarting / Soft starting/ Frequency conversion | |||||||||||||
| Cooling Mode | Air cooling | Air/water cooling | ||||||||||||
| Discharge Temp | °C | Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C | ||||||||||||
| Noise | dB(A) | <68±2 | <70±2 | <75 ±2 | ||||||||||
| Oil content of compressed air | < 2ppm | |||||||||||||
Dimension | Length | mm | 750 | 945 | 945 | 1050 | 1050 | 1120 | 1170 | 1220 | 1500 | 1950 | ||
| Width | mm | 730 | 706 | 706 | 780 | 780 | 800 | 880 | 915 | 1150 | 1450 | |||
| Height | mm | 840 | 1125 | 1125 | 1125 | 1125 | 1200 | 1350 | 1450 | 1580 | 1500 | |||
| Air Outlet Pipe Diameter | inch | G3/4 | G1" | G1" | G1 1/4" | G1 1/4" | G1 1/4" | G1 1/2" | G1 1/2" | DN50 | DN50 | |||
| Cooling Water Pipe Diameter | m3/h | - | - | - | - | - | - | - | - | 5.0 | 6.8 | |||
| Net Weight | KG | 220 | 260 | 290 | 460 | 480 | 550 | 650 | 700 | 1180 | 1350 | |||
Part 2
| Model | JLS-90F/S | JLS-110F/S | JLS-132F/S | JLS-160F/S | JLS-185F/S | JLS-200F/S | JLS-220F/S | JLS-250F/S | ||||
Free Air Delivery (m3/min) (Mpa) | 17.2/0.7 | 21.6/0.7 | 25.6/0.7 | 30.0/0.7 | 34.2/0.7 | 38.6/0.7 | 42.8/0.7 | 45.0/0.7 | ||||
| 16.5/0.8 | 20.6/0.8 | 24.0/0.8 | 29.0/0.8 | 33.0/0.8 | 37.4/0.8 | 40.0/0.8 | 43.1/0.8 | |||||
| 15.0/1.0 | 19.0/1.0 | 22.0/1.0 | 26.2/1.0 | 30.0/1.0 | 34.0/1.0 | 36.5/1.0 | 39.5/1.0 | |||||
| 13.2/1.25 | 17.5/1.25 | 19.0/1.25 | 24.5/1.25 | 28.0/1.25 | 32.0/1.25 | 34.0/1.25 | 36.3/1.25 | |||||
| Motor | Voltage/Prequency | V/Hz | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||||||||
| Power | KW/HP | 90/125 | 110/150 | 132/180 | 160/220 | 185/250 | 200/270 | 220/300 | 250/340 | |||
| Motor speed | RPM | 2970 | 2980 | |||||||||
| Sarting Method | Y-ΔStarting / Soft Starting/ Prequency conversion | |||||||||||
| Cooling Model | Air / water cooling | |||||||||||
| Discharge Temp | °C | Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C | ||||||||||
| Noise | dB(A) | <75±2 | <78±2 | |||||||||
| Oil content of compressed air | < 2ppm | |||||||||||
| Dimension | Length | mm | 2000 | 2300 | 2300 | 2600 | 2600 | 2600 | 2800 | 2800 | ||
| Width | mm | 1450 | 1700 | 1700 | 1750 | 1750 | 1750 | 2000 | 2000 | |||
| Height | mm | 1500 | 1610 | 1610 | 1910 | 1910 | 1910 | 2000 | 2000 | |||
| Air Outlet Pipe Diameter | inch | DN50 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 | |||
| Cooling Water Pipe Diameter | m3/h | 8.0 | 10.0 | 12.0 | 14.5 | 16.8 | 18.0 | 20.0 | 23.0 | |||
| Net Weight | KG | 1450 | 1950 | 2200 | 2650 | 3800 | 4100 | 4500 | 4550 | |||
