Home > Products > Household AC contactor > Household AC Contactor 16Amp

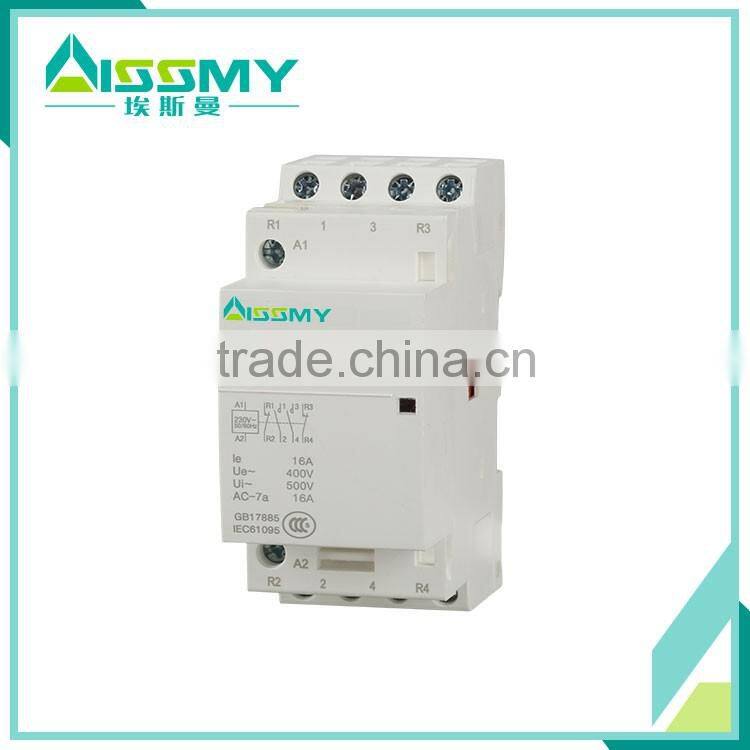

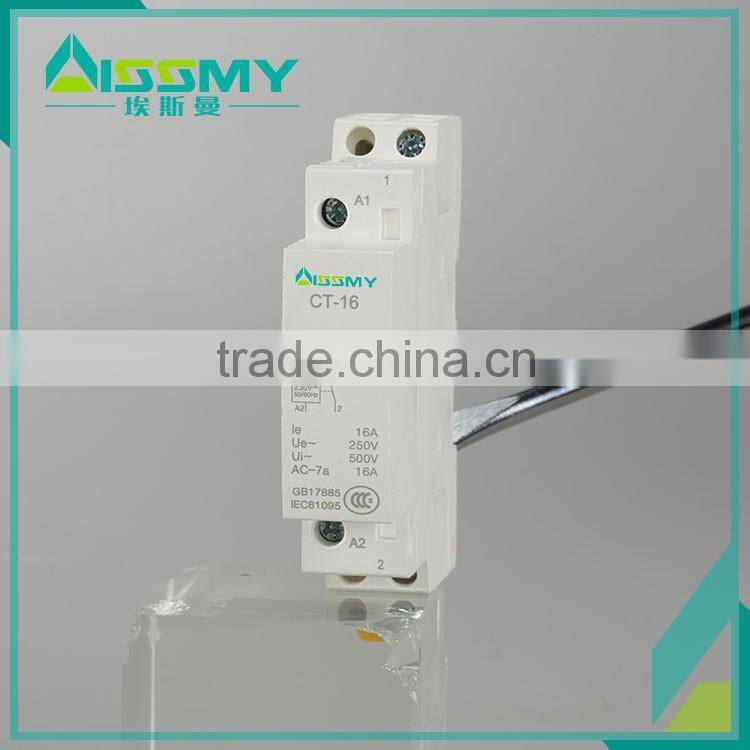

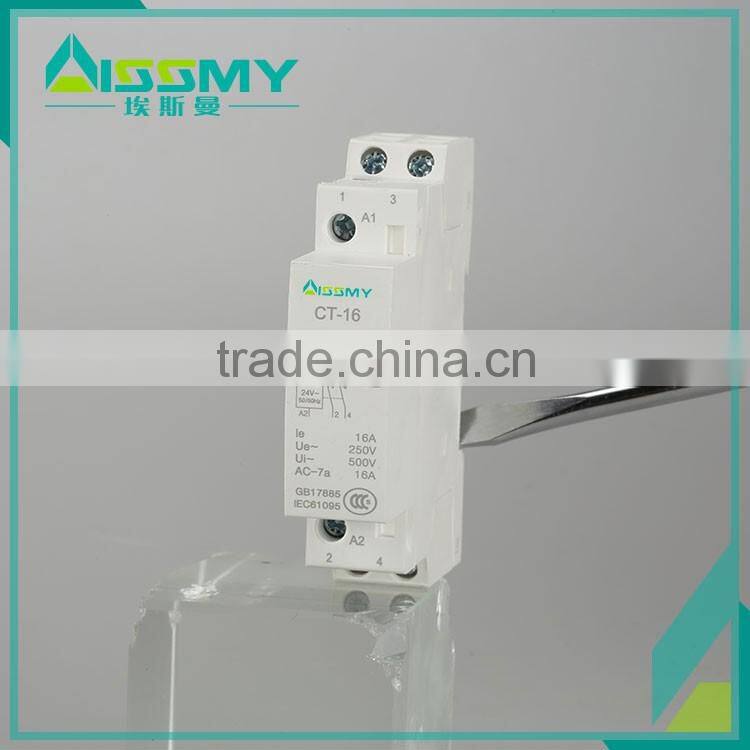

Household AC Contactor 16Amp
- Shanghai or Ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aissmy | |
| Model Number | AC-16A | Electricity Type | AC | |
| Number of Pole | 1 | Phase | 1 | |
| Main Circuit Rating Voltage | Other, 220V | Main Circuit Rating Current | Other, 16A |
Product Description
Household AC contactor 16Amp
Packaging & Delivery
packing Deials:Standard export carton box or as per requestment
Delivery Details:shipped in 15 days after payment
Household AC contactor
The contactor is mainly used in the power system of AC 50Hz/60Hz, rated voltage up to 400V, rated working current up to 100A, under the AC-1, AC-7a using categories, for long distance switch and control circuit.
Main technical parameters:
| Model | 16A | 20A | 25A | 40A | 63A | 100A | ||
| In(A) Rated current In(A) | AC-7a | 16 | 20 | 25 | 40 | 63 | 100 | |
| AC-7b | 6 | 7 | 8.5 | 15 | 20 | 30 | ||
| Prescribed heating current Ith(A) | 25 | 25 | 25 | 63 | 63 | 100 | ||
| Rated insulation voltage Ui(V) | 500 | |||||||
| Rated operating voltage Ue(V) | 250V(1P 2P) 400V(3P 4P) | |||||||
| Number of main contacts | 1P | 1NO 1NC | ||||||
| 2P | 1NO1NC 2NO2NC | |||||||
| 3P | 3NO 3NC | |||||||
| 4P | 2NO2NC 3NO1NC 4NO 4NC | |||||||
| Control power (KW) | AC-7a | 230V | 3.5 | 4.5 | 5.5 | 9 | 14 | 22 |
| 400V | 6.5 | 8 | 10 | 16 | 25 | 38 | ||
| AC-7b | 230V | 1.4 | 1.6 | 2 | 3.5 | 4.5 | 5.5 | |
| 400V | 2.4 | 2.4 | 3.4 | 6 | 8 | 11 | ||
| Electrical life (times) | 10*10000 | |||||||
| Mechanical life (times) | 100*10000 | |||||||
| Maximum switching frequency/1h | 30 | |||||||
| Rated control supply voltage Us (V) | AC 24/50Hz AC 230/50Hz | |||||||
Company Profile:
Located in the state-level high -tech pioneering pack in Shanxi Province, Assimy is a company which designs and produces high and low voltage electrical equipments and accessories. In order to expand business scope, Assimy set up a branch company in Liushi Wenzhou.
Assimy has a wide range of electric accessories include Magnetic contactor, Household contactor, CJ20, CJX2, GMC, Air conditioning contactor,DZ47-63,DZ47LE circuit breaker, Moulded case circuit breaker, Dual power automatic transfer switch, Isolating switch, Magnetic starter, Self loading type overvoltage and under voltage protection device, Power supply of the switch, Fuse, Surge protective device, etc.
Product Display
Welcome,my friend!
Glad to introduce household AC contactor and our company to you. If you have any questions, please don't hesitate to contact me.
Contact Us
- Shanxi Aisiman Electric Tech Co., Ltd.
- Contact nameReeta Xu Chat Now
- Phone86-577-61778731
- AddressRm. 607, Pioneering Incubator Bldg., High-Tech Venture Park, No. 61, Dalian Road, Development Area, Yangquan, Shanxi, China
