3NO 25A 220V Single Phase Contactor

3NO 25A 220V Single Phase Contactor thumbnail-1
3NO 25A 220V Single Phase Contactor thumbnail-2
3NO 25A 220V Single Phase Contactor thumbnail-3
3NO 25A 220V Single Phase Contactor thumbnail-4
3NO 25A 220V Single Phase Contactor thumbnail-5
3NO 25A 220V Single Phase Contactor thumbnail-6
3NO 25A 220V Single Phase Contactor photo-1
3NO 25A 220V Single Phase Contactor photo-2
3NO 25A 220V Single Phase Contactor photo-3
3NO 25A 220V Single Phase Contactor photo-4
3NO 25A 220V Single Phase Contactor photo-5
3NO 25A 220V Single Phase Contactor photo-6
US$ 2 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM/Aissmy
Model Number:
CT2530 3NO
Contact Supplier Request Quote Chat Now
Shanxi Aisiman Electric Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM/Aissmy
Model Number CT2530 3NO
Electricity Type AC
Number of Pole 4
Phase 3
Main Circuit Rating Voltage Other, 380V
Main Circuit Rating Current Other, 25A

3NO 25A 220V Single Phase Contactor

Product Description

 (16A/20A/25A/40A/63A/100A For you to choose)



CT contactors can be used to remote control applications in alternative networks:

1. lighting, heating, ventilation, roller blinds, sanitary hot water

2. mechanical ventilation system,etc.

3. load-shedding of non-priority circuits



CT contactors are available in two versions:
Contactors without manually-operated
Contactors with manually-operated



The breadth of the CT contactor range satisfies most application cases.
CT contactors can be combined with auxiliary control, protection and indication functions.

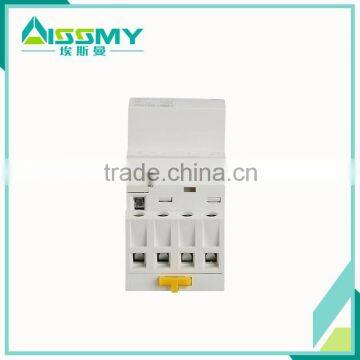

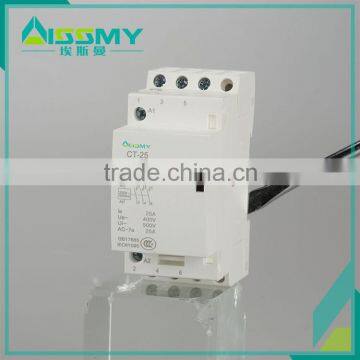

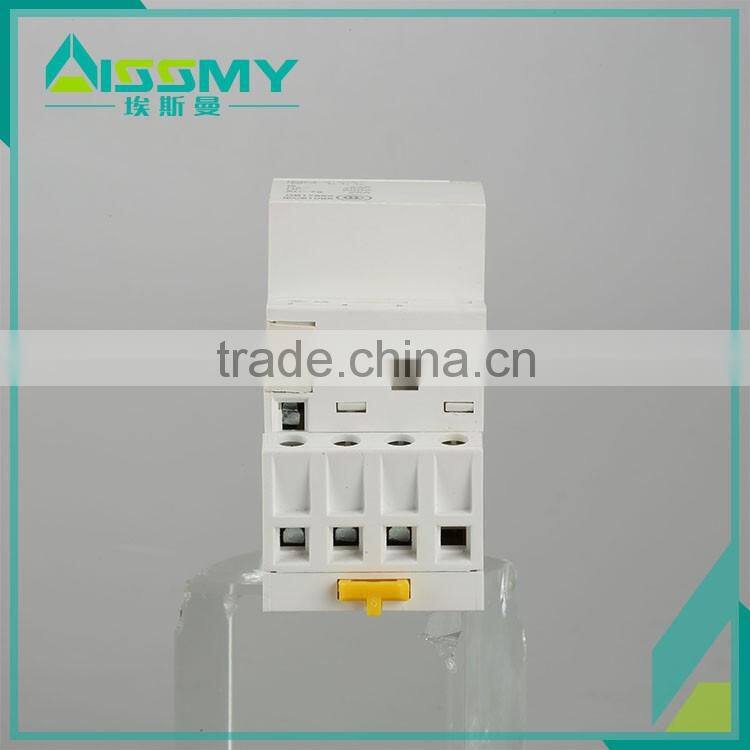

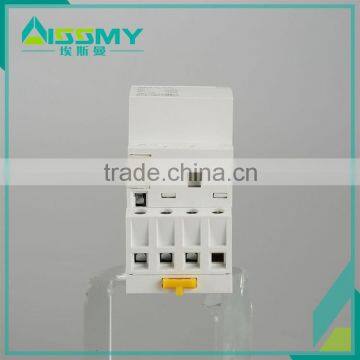

Photo Show:

3NO 25A 220V Single Phase Contactor3NO 25A 220V Single Phase Contactor



Technical Parameter:



Power circuit
Voltage rating (Ue)        1P/2P  250V AC
                                   3P/4P  400V AC
Frequency  50Hz or 60Hz
Endurance (O-C)
Electrical  100,000 cycles
Maximum number of switching operation a day  100
Additional charateristics
Insulation voltage (Ui)  500V AC
Pollution degree  2
Rated impulse withstand voltage (Uimp)  2.5KV (4KV for 12/24/48V AC)
Degree of protection (IEC 60529)  Device only                               IP20
 Device in modular enclosure        IP40
Operating temperature  -5 ℃to+60 ℃
Storage temperature  -40 ℃to+70 ℃
Tropicalization (IEC 60068-1)  Treatment 2 (relative humidity 95% at 55℃)
ELSV compliance (Extra Low Safety Voltage) for 12/24/48vac versions
The product control conforms to the SELV (safety extra low voltage) requirements



Note: In the case of contactor mounting in a enclosure for which the interior temperature is in range between 50 ℃ and 60 ℃, it is necessary to use a spacer, between each contactor.

 3NO 25A 220V Single Phase Contactor3NO 25A 220V Single Phase Contactor

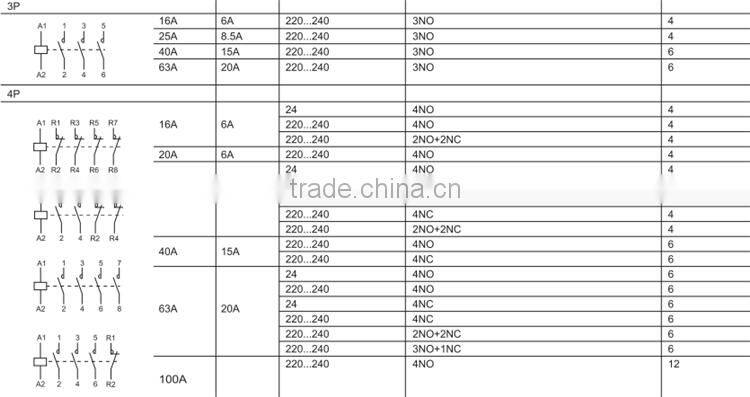

Wiring and Installation:

3NO 25A 220V Single Phase Contactor

 Dimensions(mm):

3NO 25A 220V Single Phase Contactor
