380V Coil AC Contactor 25A 4 Pole Contactor
- 10000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | OEM/Aissmy | Model Number: | CT2531 3NO1NC |
Electricity Type: | AC | Number of Pole: | 4 | Phase: | 3 |
Main Circuit Rating Voltage: | Other, 380V | Main Circuit Rating Current: | Other, 25A |
Product Description
380V Coil AC Contactor 25A 4 Pole Contactor
(16A/20A/25A/40A/63A/100A For you to choose)
CT contactors can be used to remote control applications in alternative networks:
1. lighting, heating, ventilation, roller blinds, sanitary hot water
2. mechanical ventilation system,etc.
3. load-shedding of non-priority circuits
CT contactors are available in two versions:
Contactors without manually-operated
Contactors with manually-operated
The breadth of the CT contactor range satisfies most application cases.
CT contactors can be combined with auxiliary control, protection and indication functions.

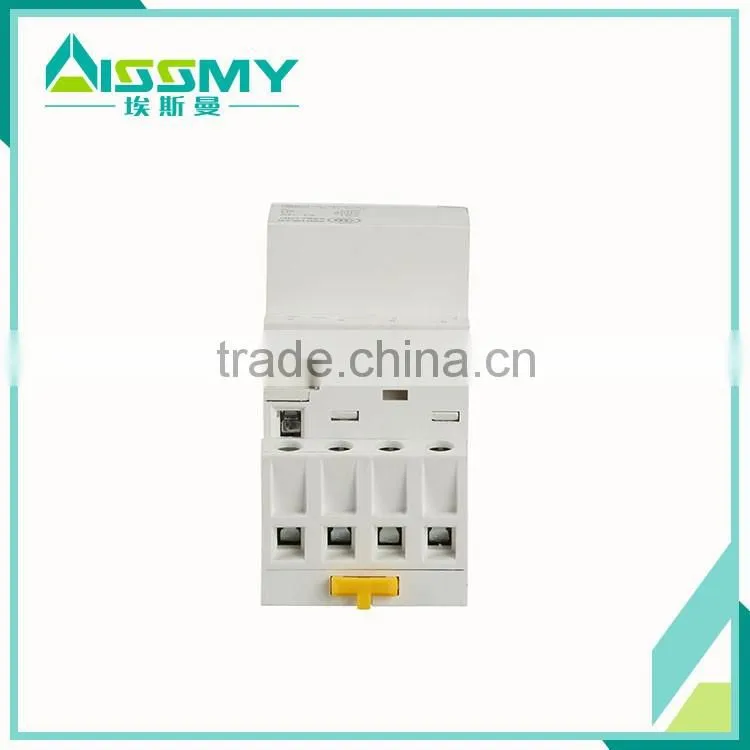

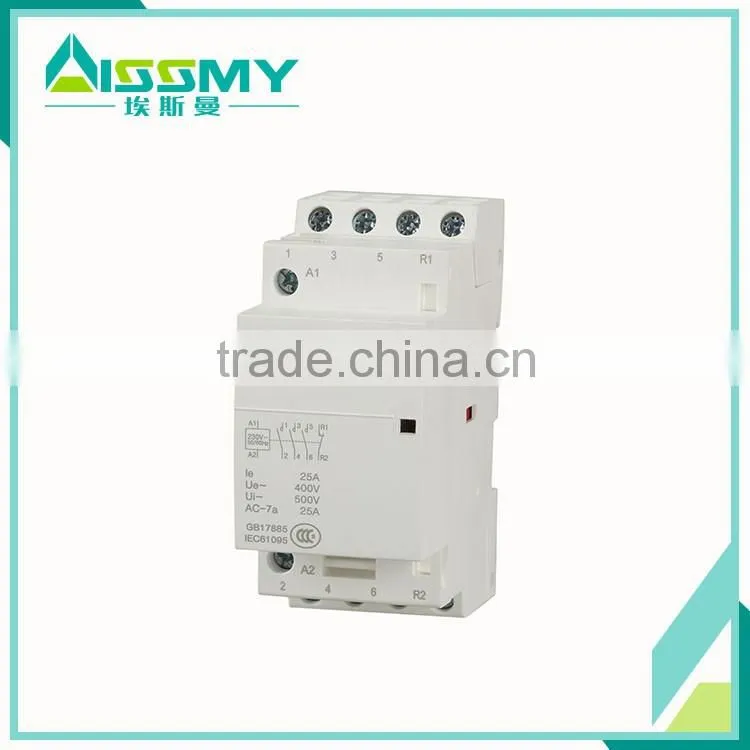

Photo Show:
Technical Parameter:
Power circuit | |
Voltage rating (Ue) 1P/2P | 250V AC |
3P/4P | 400V AC |
Frequency | 50Hz or 60Hz |
Endurance (O-C) | |
Electrical | 100,000 cycles |
Maximum number of switching operation a day | 100 |
Additional charateristics | |
Insulation voltage (Ui) | 500V AC |
Pollution degree | 2 |
Rated impulse withstand voltage (Uimp) | 2.5KV (4KV for 12/24/48V AC) |
Degree of protection (IEC 60529) | Device only IP20 |
Device in modular enclosure IP40 | |
Operating temperature | -5 ℃to+60 ℃ |
Storage temperature | -40 ℃to+70 ℃ |
Tropicalization (IEC 60068-1) | Treatment 2 (relative humidity 95% at 55℃) |
ELSV compliance (Extra Low Safety Voltage) for 12/24/48vac versions | |
The product control conforms to the SELV (safety extra low voltage) requirements |
Note: In the case of contactor mounting in a enclosure for which the interior temperature is in range between 50 ℃ and 60 ℃, it is necessary to use a spacer, between each contactor.
Wiring and Installation:
Dimensions(mm):
If you want to ask any question please don’t hesitate to ask
We will respond Asap.
Mob/Whatsapp/ WeChat: 0086 15869498786
Skype: Cindyelectric
QQ: 770965655
