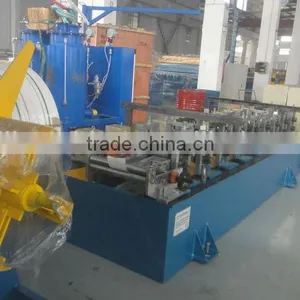

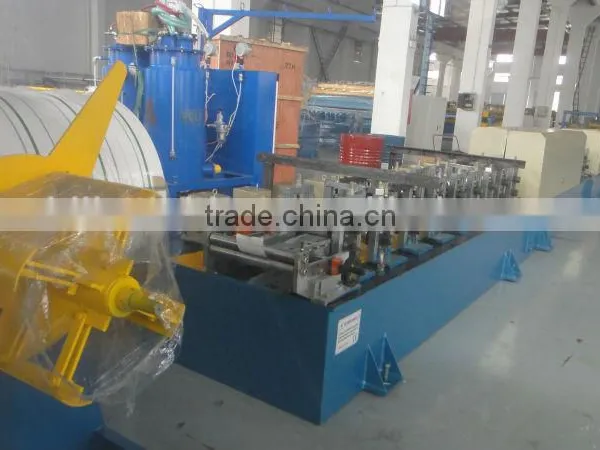

Rolling shutter slats forming machine

I. Roll shutter slat forming machine description:

This roll forming machine is for producing aluminum shutter door & window slats with foam-filled.Our roll forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes, inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.

II. Insulated Roller Shutter Products Description:

The versatile rolling shutters door and window coverings that have been widely used in Europe for over 100 years. They offer energy savings, privacy and security, while enhancing the value and beauty of the home. Although insulated rolling shutters are associated with security and sun control, they can also decrease dust, noise and sun damage to furniture, draperies and carpets.

Rolling shutters now have become extremely popular not only in Europe, but around the world. In many European countries, such as Germany, Italy, France and Spain, roll shutters are a standard feature on homes and businesses. The roll shutter business has grown to become a multi-billion dollar industry. The products’ popularity has spread to the Middle East, Australia, South America and to the United States.

III. Technical process:

Double head decoiler---Feeder guide---roll forming---PU injection---Punching---Pneumatic flying saw cutting---Run out table

Polyurethane Rolling Shutter Slats Roll Forming Machine components: double-side unwinding frame, main roll forming machine, PU foam-filled device, pneumatic cutting machine, pneumatic punching machine, automatic PLC control system, run out table

IV. Technical parameters:

Line structure: Portal-type frame style,45# steel

Steel thickness: 0.3-0.5mm

Steel width: 117-310mm

Forming roller stations: 41 stations

Forming rollers: Gcr15, quenching,hardness HRC56-62°

Forming speed: 0-7m/min

Main motor power: 11kw

Cutting mode: Automatic cut-to-length control
