Help CenterCorrugated Roof Sheet Making Machine
Related Products
-
Roofing Corrugated Sheet Roll Forming MachineUS$ 20,000 - 35,000MOQ: 1 Set -
Corrugated Sheet Roll Forming MachineUS$ 20,000 - 35,000MOQ: 1 Set
-
Corrugated Sheet Roll Forming MachineNegotiableMOQ: 1 Set
-
Automatic Corrugated Roll Forming MachineNegotiableMOQ: 1 Set
-
Corrugated Roof Sheet Making MachineNegotiableMOQ: 1 Set
Typical profile drawing:
Technical process:
Un-coiler→ Feed with guide→ Roll forming→ Hydraulic cutting with fixed length→ Run-out table→ PLC control
Specifications:
Material: galvanized steel sheet
Sheet thickness: 0.15-1.0mm
Max. Input width: 1250mm
Number of stations: 18 stationsn
Rolling speed: about 12-20m/min
Structure: Wall panel
Way of drive: by chain
Electric Source: 380V, 50HZ, 3 phase, Also can satisfy customer’s require
Roll material: Gcr15 steel, heat treatment;
Main shaft material: 45# steel, quenching and tempering treatment;
Chain: material 45# steel, high-frequency hardening, pitch: 31.8; number of teeth: 10;
Main motor power: 5.5KW;
Cutting: use saw cutting. Blade material: Cr12Mov; Quenching HRC58-62;
Electric control system: Siemens system;
Machine size: 14000mm×2000mm×2400mm;
Total machine weight: about 14 tons.

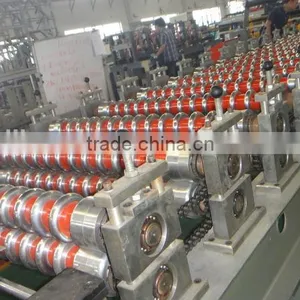

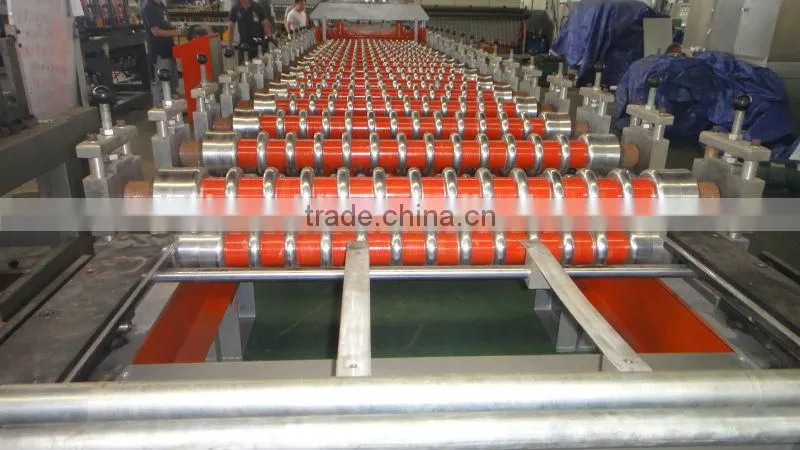

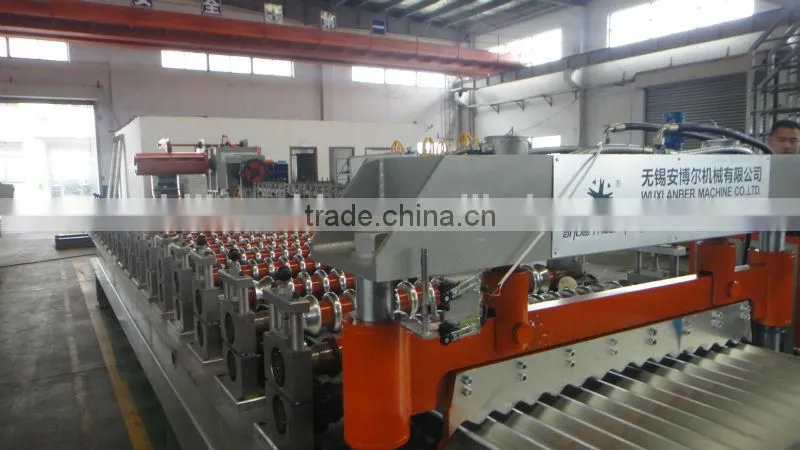

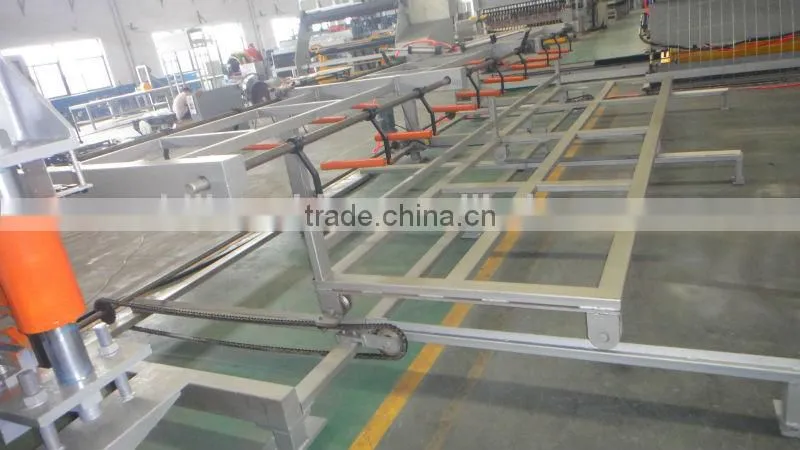

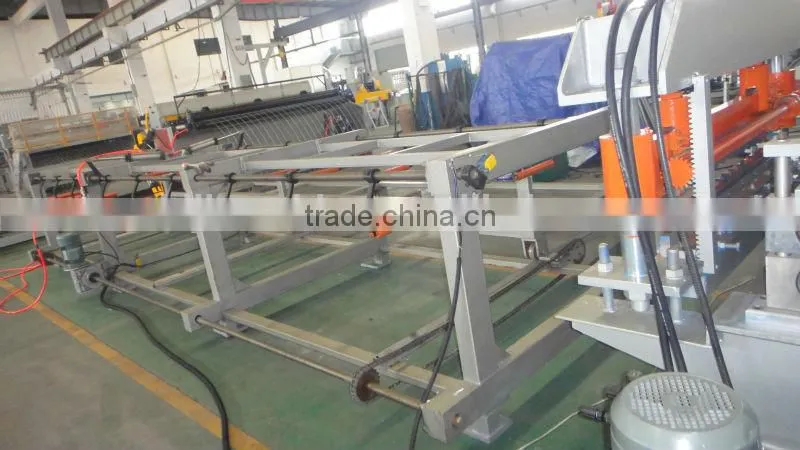

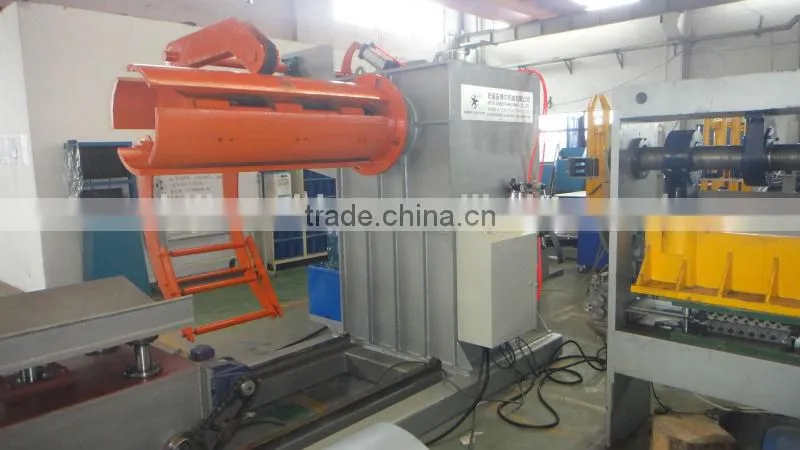

Machine photos:
