Corrugated Sheet Roll Forming Machine

Corrugated Sheet Roll Forming Machine thumbnail-1
Corrugated Sheet Roll Forming Machine photo-1
US$ 20,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
WTM
Model Number:
according to customer's demand
Contact Supplier Request Quote Chat Now
Jiangsu Living Building Prefab Crop.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name WTM
Model Number according to customer's demand
After-sales Service Provided Engineers available to service machinery overseas

Typical profile drawing:



Corrugated Sheet Roll Forming Machine



Technical process:



Un-coiler→ Feed with guide→ Roll forming→ Hydraulic cutting with fixed length→ Run-out table→ PLC control



Specifications:



Material: galvanized steel sheet



Sheet thickness: 0.15-1.0mm



Max. Input width: 1250mm



Number of stations: 18 stationsn



Rolling speed: about 12-20m/min



Structure: Wall panel



Way of drive: by chain



Electric Source: 380V, 50HZ, 3 phase, Also can satisfy customer’s require



Roll material: Gcr15 steel, heat treatment;



Main shaft material: 45# steel, quenching and tempering treatment;



Chain: material 45# steel, high-frequency hardening, pitch: 31.8; number of teeth: 10;



Main motor power: 5.5KW;



Cutting: use saw cutting. Blade material: Cr12Mov; Quenching HRC58-62;



Electric control system: Siemens system;



Machine size: 14000mm×2000mm×2400mm;



Total machine weight: about 14 tons.

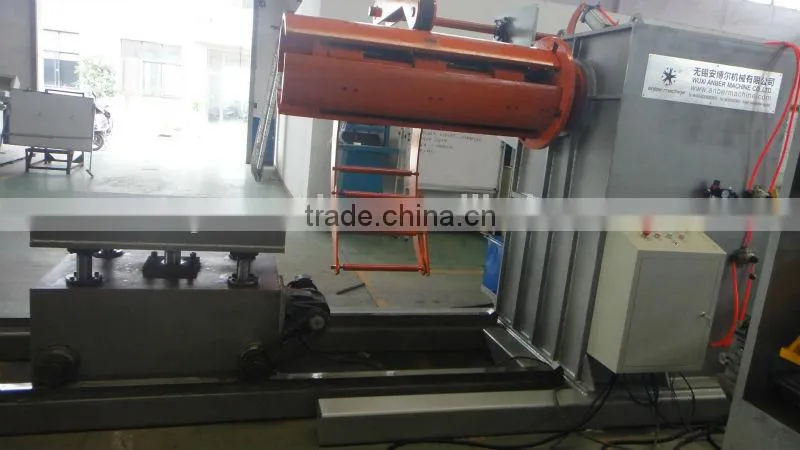

Machine photos:

 Corrugated Sheet Roll Forming MachineCorrugated Sheet Roll Forming Machine



 Corrugated Sheet Roll Forming Machine
