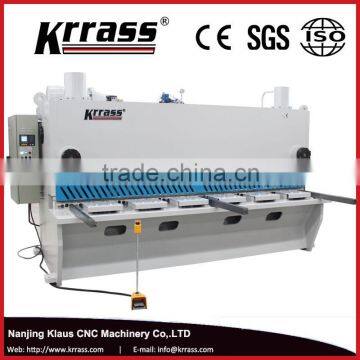

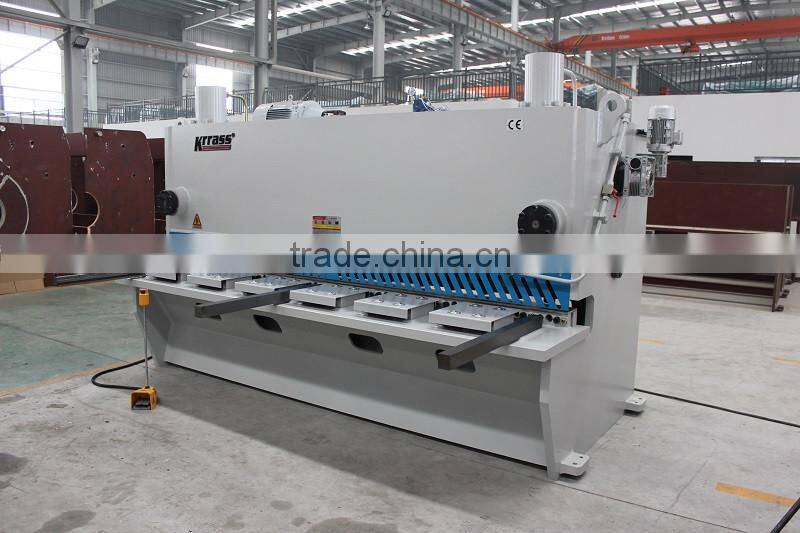

Electrical Panel Iron Plate Cutting Machine 4x2500 From Krrass

electrical panel iron plate cutting machine 4x2500 from Krrass

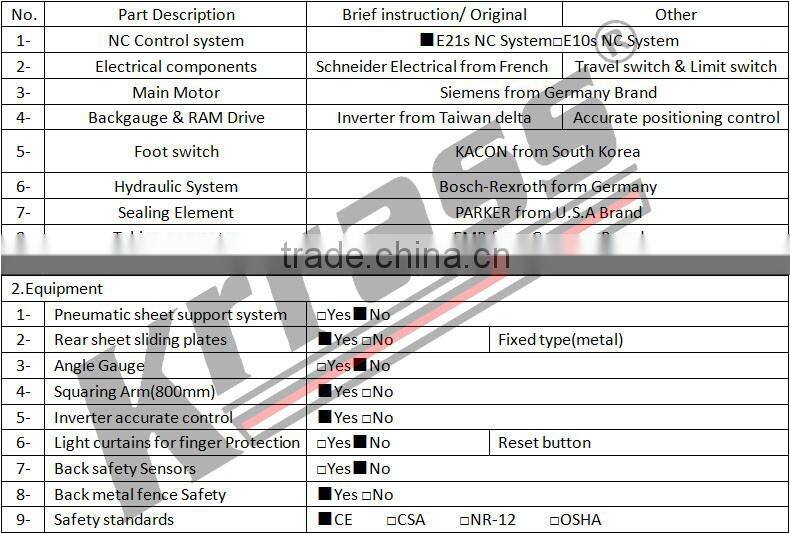

1. Standard Equipment:

• Estun E21sNC control System
• Powered Back gaugeX-axis
• DELTA Inverter controlled back gauge
• HIWIN Ball screws & Polished rod with 0,05mm accuracy.
• Squaring Arm and Front Support Arms

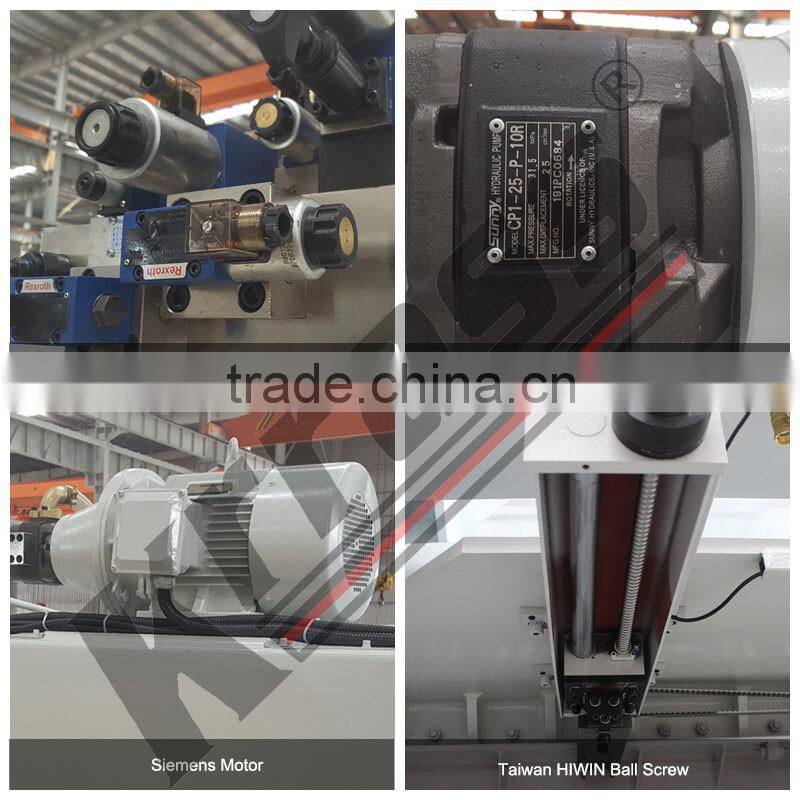

• Germany Bosch-Rexroth Hydraulic
• Germany EMB Tubing connector
• Germany Siemens Main Motor
• Tele mecanique/Schneider Electrics
• Hydraulic &Electrical overload protection
• Cutting Line Illumination and wire for shadow line cutting
• Top blade with four cutting edges and bottom blade with four cutting edges.(6CrW2Si)

2. Safety Equipment:

• Safety Standards(2006/42/EC):

1.EN 12622:2009 + A1:2013

2.EN ISO 12100:2010

3.EN 60204-1:2006+A1:2009

• Front finger Protection(Safety light curtain)
• South Korea Kacon Foot Switch(Level 4 of safety)
• Back metal safe fence with CE standards
• Safety relay with Monitor the pedal switch and safety protection

3. Estun E21s NC Control system:

• Backgauge control
• Control for general AC motors,frequency inverter
• Intelligent positioning
• Double programmable digital output
• Stock counter
• Program memory of up to 40 programs Up to 25 steps per program
• One side positioning
• Retract function
• One key backup/restore of parameters
• mm/inch
• Chinese/English

Watch Video on Youtube

/watch?v=fOJ87r6M8mo

• Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
• Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,
• Entire welded fram,press with tempering.Hydraulic drive,reservoir teturn stroke.
• 4.Three point supporting rolling guide to insure quality.Square blade with long life.
• Blade clearance adjusting indicated,easy for adjusting,Light alignment device.Stepless adjusting up blade stroke.
• Railing guards,Digital display:back gauge size&shear times.Adjustable shear angle.
• Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

 Watch The Details on Youtube

/watch?v=nWoNjhAro18
