Hot Sale Round Bar and Square Bar Bending Machine With High Precision

Name: Hot Sale Round Bar and Square Bar Bending Machine With High Precision
Brand: KRRASS
Availability: InStock

FOB Price

US$ 4,512 - 18,713 / Set

1 Set(Min. Order)

Port Shanghai or Any port
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	KRRASS	Model Number	round bar and square bar bending machine
Voltage	220V/380V	Rated Power	5kw
Dimension(LWH)	22809602200mm	Weight	6ton
Certification	CE&ISO	Warranty	2 years warranty
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

round bar and square bar bending machine
1.Laser position
2.Auto holding device
3.Auto temperature cooling
4.manufacturer

Company Information

Hot Sale round bar and square bar bending machine with high precision

Product Description

High Efficiency hydraulic angle bar cutting machine,steel bar bender,steel round bar bending machine

YOUTUBE LINK: /watch?v=f9_WG_tYO-w&feature=youtu.be

Best Selling KRRASS CE&ISO Q35Y-30 hydraulic ironworker,metal hole punch and shear,angle iron guillotine shearing machine

Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate,square bar, angle, round bar, channel and so on.

KRRASS Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.

This profitable machine will serve any grueling fabrication shop for decades to come.

This machine is typically in stock for quick deliveries.

1. hydraulic cutting iron bar cutting machine

Full range of universal punches and dies are hydraulic ironworker available.unique style allows for large angle iron punching an large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table

with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

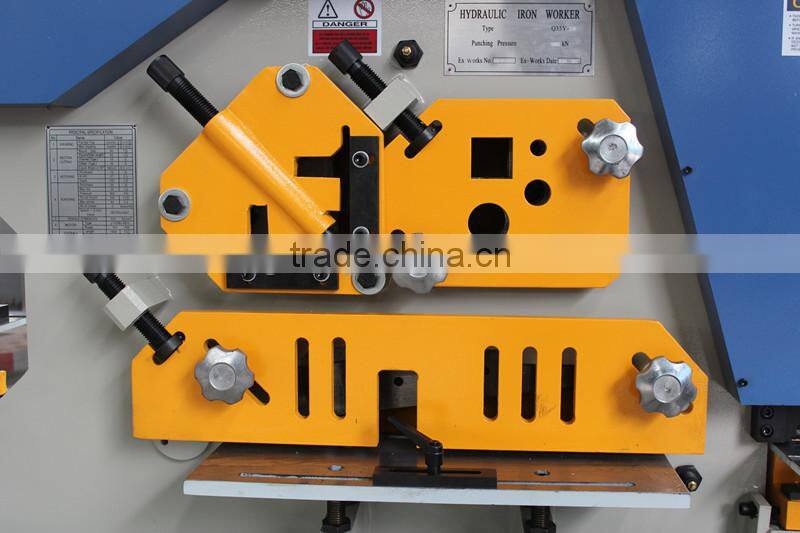

2. hydraulic cutting iron bar cutting machine

Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,

channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.

Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable holddown device for accurate plate cutting.

Large 15squaring arm with inlaid scale.Special antidistorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.

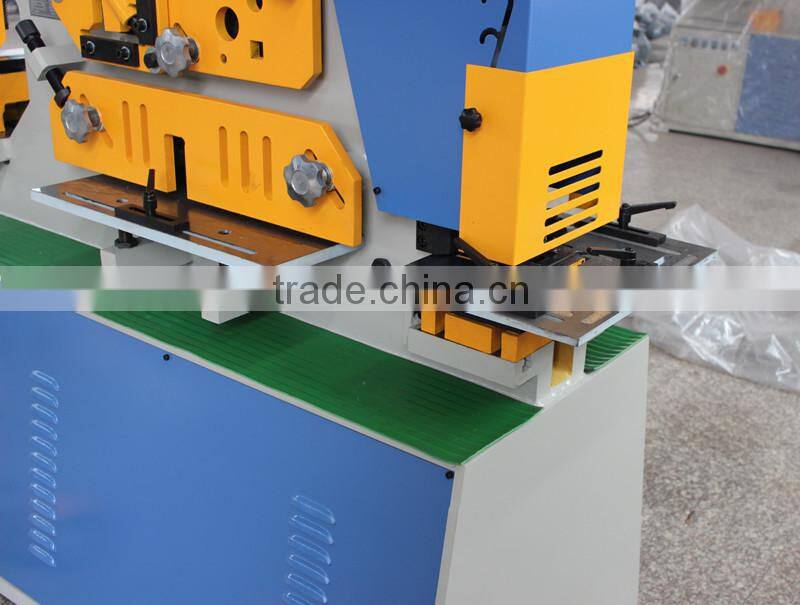

3. hydraulic punching-shear machine Notching

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for

precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate,

angle iron and much more. The notching station also has an oversized table with material stops.

This section of the machine can also be outfitted with the optional vee notcher.

4. hydraulic turkey ironworker machine Bending

Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty,

function, capability and maintenance

Hydraulic Combination punching-shear machine Technical feature:

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-35	Q35Y-40	Q35Y-50	Q35Y-60
Working Pressure(Ton)	55	75	110	140	175	200	250	300
Max. Cutting Thickness (mm)	16	20	25	26	30	35	40	45
Plate Strength (N/mm²)	lower than 450	lower than 450	lower than 450	lower than 450	lower than 450	lower than 450	lower than 450	lower than 450
Shear Angle (degree)	7	8	8	8	8	8	8	8
Shearing Size Of One Stroke T*W(mm)	16250 8400	20330 10480	25330 16600	26330 20600	30400 20600	35400 25700	40400 30750	45400 30800
Ram Stroke (mm)	80	80	80	80	80	100	100	100
Stroke Times (per minute)	8	8	8	8	8	8	8	8
Throat Depth (mm)	300	355	400	600	600	600	600	600
Punching Thickness (mm)	16	20	25	26	28	35	40	40
Max. Punching Diameter (mm)	25	30	35	38	40	40	40	45
Power Of Main Motor (kw)	4	5.5	7.5	11	11	15	18	18
Overall Dimensions LWH (mm)	16407301770	18608001990	23559602090	268010402300	272010802400	277012402450	300014402480	305015502500
Weight Of Machine (kg)	1770	2200	4800	6200	7000	9200	12800	13500

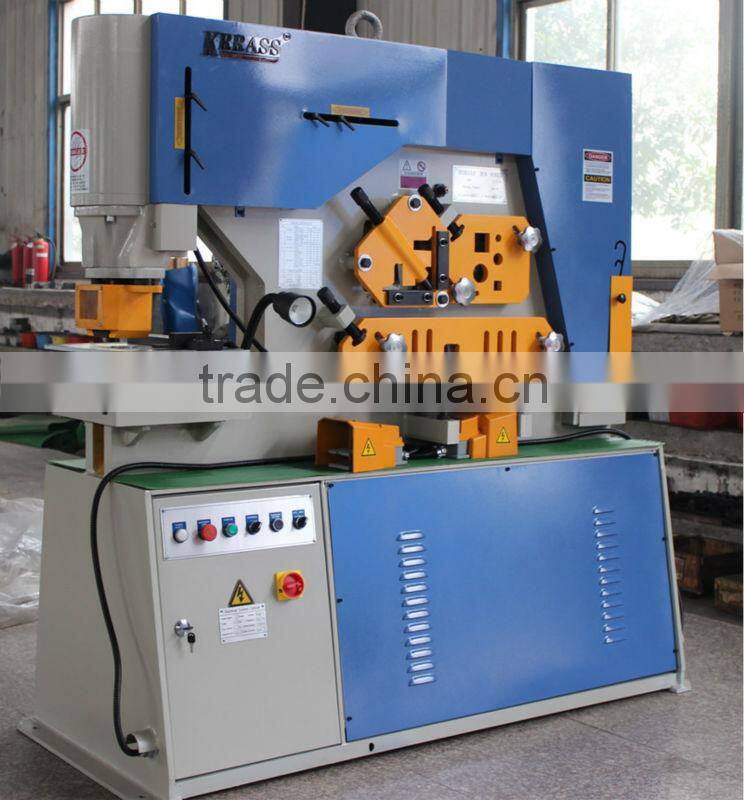

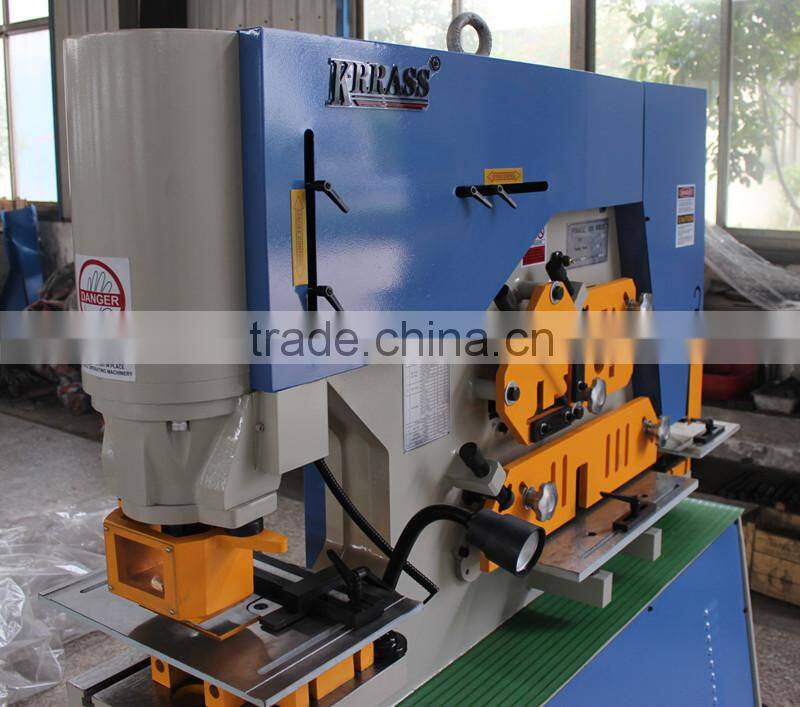

angle bar cutting machine hydraulic photos with different colors:

WELECOME DO FACTORY INSPECTION for Best Selling KRRASS CE&ISO Q35Y-30 hydraulic ironworker,metal hole punch and shear,angle iron guillotine shearing machine

Notes: please choose the model you want to use, then we can give you a quote asap.
