Adjustable brightness P5 Indoor led video screen rental for events and theater stage
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JC | Model Number: | JC-FSI-PH4MM |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, p5 indoor led large screen display | Screen Dimension: | 512mmx512mm |
Product Description
Adjustable brightness P5 Indoor led video screen rental for events and theater stage
P5 SMD indoor full color Led screen
1.Long lifespan,Competitive price
2.Large view angle
3.High brightness
4.CE,ROHS,FCC

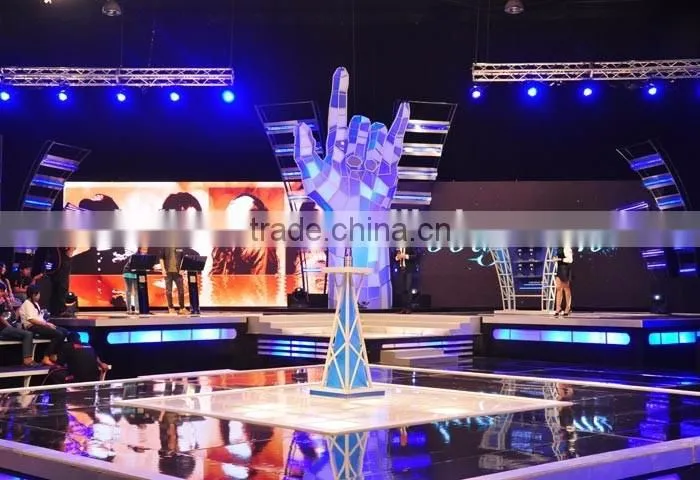

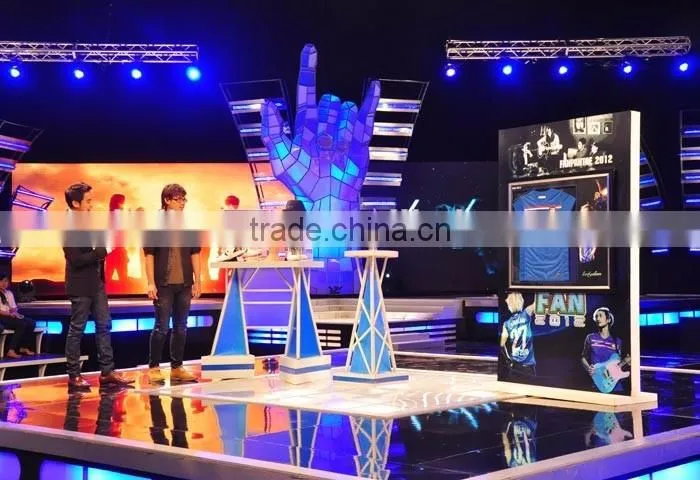

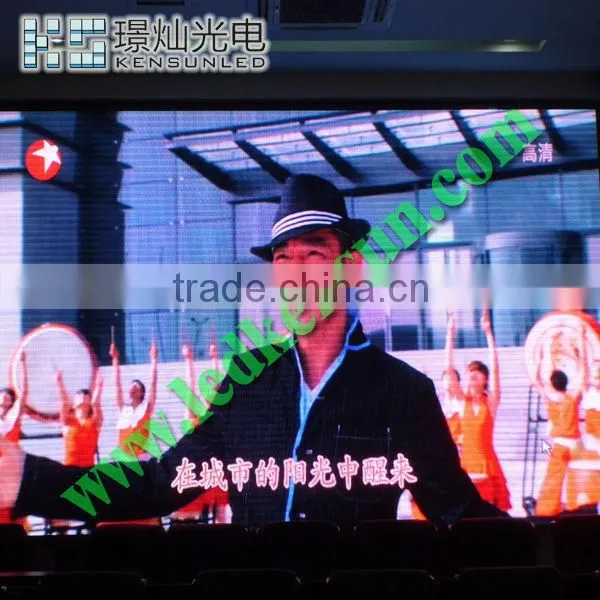

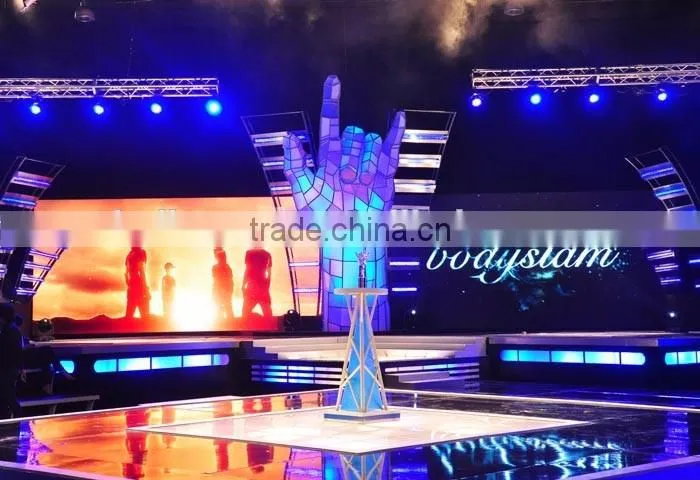

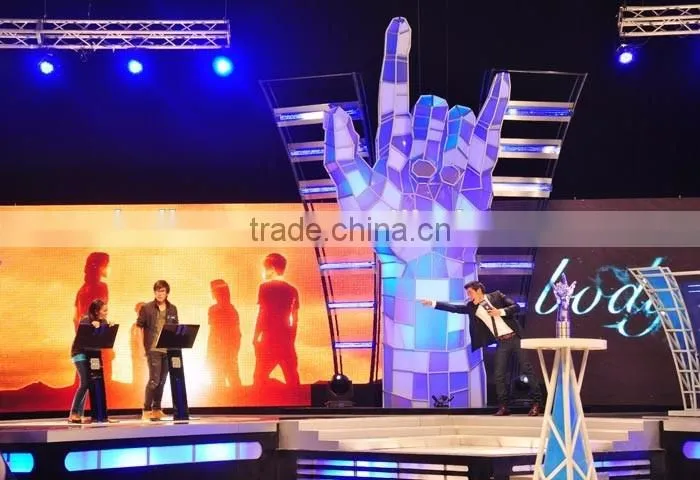

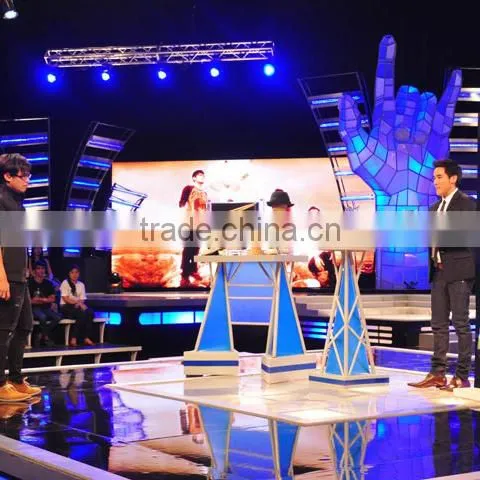

Indoor Rental LED Display Screen could be used in indoor environment such as municipal mansion, enterprise hall, show room, cinema, stage, with various real-time signal sources and the SMD
encapsulation technology, its purpose is to play the important news or events or TV program .
1) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
2) No mosaic due to excellent flatness and nice uniformity of light-emitting.
3) Wide viewing angles and the horizontal angle can reach 140° , The images effect will not change largely in the range.
4) High density make the images softer and vivider.
5) Single-lamp maintenance with low cost.
6) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
7) Environmental-friendly and energy-saving.
Advantage
- 1. Wide application: it can be used for any rental application of stage show: such as main rental led display, side screen, floor screen, arc screen stage design etc.
- 2. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
- 3. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
- 4. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
- 5. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
Pixel Information | Pixel Pitch | 5mm |
Pixel Density | 40000 Pixels/m2 | |
Pixel Configuration | 1R1G1B | |
LED Wavelength | Red: 615 nm - 635 nm | |
Green: 520 nm - 535 nm | ||
Blue: 465 nm - 475 nm | ||
LED Module | Module Size(mm) | 160 (Width) × 160 (Height) |
Module Resolution | 32(Width) × 32 (Height) | |
Cabinet | Cabinet Size(mm) | 640 (Width) ×640(Height) |
Cabinet Resolution | 128 (Width) × 128 (Height) | |
Total QYT Module Per Cabinet | 4 (Width) ×4(Height) | |
Cabinet Weight | 30kg/m2 | |
Cabinet Material | Die-casting Aluminum LED Display | |
Power | Input Voltage | 100-240V AC, 50/60Hz |
Max Power Consumption | 1100 Watt/m2 | |
Avg. Power Consumption | 650 Watt/m2 | |
Brightness | ≥3500cd/m2 | |
Brightness Uniformity | Luminance Discrepancy < 5% | |
Best Viewing Angle | Horizontal:140°,Vertical:70° | |
Viewing Distance | 5 - 15 meters | |
Ambint Conditions | Temperature Range | Working:-20deg. to +60deg |
Operating Humidity | 10%90%RH | |
Ingression Protection Grade | IP30 | |
Processing | Scanning Mode | 1/8 scanning |
Refresh Frequency | 600-1200HZ, Adjustable(depends on control system) | |
Signal Input | DVI, Composite Video for Live Video | |
Supported Networking | Through LAN/WAN, RS 232/RS485 | |
Controller | Linsn or Nova |
