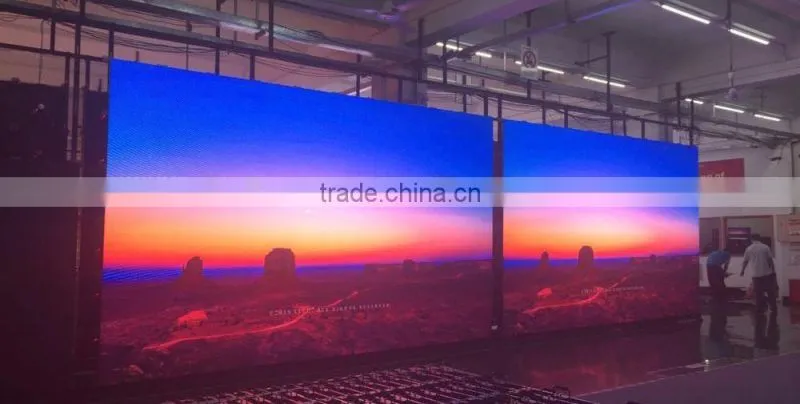

SMD3528 ph5mm led big screen clear photos led screen indoor large display
1. Bravo contrast ratio, high resolution/high definition
2. Super light, then it can be installed by one person
3. Super consistency and no mosaic
4. Other Product Models: P3.84mm, P4mm, P4.8mm,P5mm, P5.33mm,P6mm.
5. CE,CCC,RoHS,UL,ISO9001
6. Only weight : 9KG/panel. thickness less than 83mm
1. Super Thin Design
Thickness less then 83mm, with this slim design, can make you work easier.
2. Light Weight
One Cabinet only weights 9 KG, 34KG for one square meter.
3. Fast and simple Assembly
No tools needed, one person can install at least 70 cabinets per hour. One person can finish the whole
process alone.

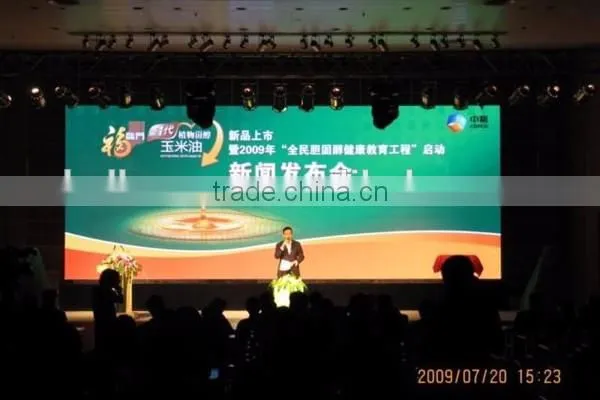

Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
1.Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the information billboard in Airport, Railway station, and big shopping mall, concert and ect.
2.The brightness of indoor LED signs is adjustable so as to ensure different environment.
3.Indoor SMD LED signs include PH4mm, PH5mm, PH6mm, PH7.62mm, PH10mm and PH12mm. P6mm and P7.62mm are most popular pixel pitch.
4.We make best design with high cost- efficiency according to the actual needs of our customers and we can offer OEM service as well.
5.We produce advertising LED display, rental LED display, traffic LED display, highway LED display, stadium LED display, curve shape LED display, text information LED display and so on.
Pixel configuration |
SMD3528 1R1G1B 3 in 1 |
|
LEDs configuration |
Red:wave length: 625~630nm;300-400mcd |
|
Pixel pitch(mm) |
5 |
|
Pixel density |
40000 |
|
Calibrated brightness(cd/sqm,nit) |
3200 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R: G: B = 30%:60%:10% |
|
Color temperature |
3,500° -9,500° K(adjustable) |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
Horizontal: 160° (80° off center); Vertical: 160° (80° off center) |
|
Readability viewing angle |
Horizontal/ Vertical: 170° (85° off center) |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>1200 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP54 backside |
|
LED Drive |
Constant-current drive |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature(Celsius degree) |
-30-65' |
|
Storage temperature(Celsius degree) |
-35-70' |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Servicing |
Front and back serving optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 V AC single phase(50-60Hz) |
|
Maximum power consumption(W/SQM) |
800 |
|
Average power consumption(W/SQM) |
320 |
|
Screen operation mode(scan/static) |
1/8 |
|
Module configuration |
Length |
32 |
Height |
32 |
|
Module dimensions(mm) |
Length |
160 |
Height |
160 |
|
Cabinet configuration |
Length |
4 |
Height |
4 |
|
Cabinet dimensions(mm) |
Length |
640 |
Height |
640 |
|
Width |
170 |
|
Screen configuration |
Length |
4 |
Height |
3 |
|
Screen dimensions(m) |
Length |
2.5600 |
Height |
1.9200 |
|
Screen Size |
SQM |
4.9152 |
Recommend Optimal Viewing Distance: Minimum & Maximum |
Min |
3 |
Max |
68 |
|
Resolution ratio(dots/pixels) |
Length |
512 |
Height |
384 |
|
Aspect Ratio(L:H) |
1.33333 |
|
Packaging configuration |
2 standard cabinets in a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM) |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
Packing quantities |
6 |
|
Packing volume(CBM) |
2 |
|
Packing Dimensions(mm) |
Length |
745 |
Height |
845 |
|
Width |
520 |
|
Packing weight(KG) |
net |
184 |
gross |
249 |
|
