SMD high brightness p6 outdoor led screen advertising display
1, With good lightening accordance and no mosaic
2,Can play different formats of image files, flash, WAV/MIDI, video signal from
TV, video signal from video and other equipment
3, Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced
4,High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment
5,Uses real pixels rather than virtual pixels, better viewing effect
1. Wide application field&short ROI time:Commercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction.
2. High Contrast:7000:1,which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip: Supplied by Ni-chia of Japan to ensure the long lifetime and high brightness of our LED screen system.
4.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen’s investment.
5.Long-term Brightness:7500-nit brightness( for outdoor full color) (1200-2700 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
Future of led screen:
1. High refresh rate --- up to 4000Hz, ensure to make high definition led video display perfectly.
2. Easy installation and dismantling --- quick lock and self-position design, do not need other assistant tools to assemble and disassemble the panels.
3. Transparency ---unique design of panel, allow the smoking, lighting, laser and sound effects to pass through the screen to make your stage more amazing.
4. Protection level: IP65 --- this led display can prevent dust and rain from entering; can withstand strong winds and extreme weather conditions.
- Pixel pitch: 6 mm
- Encapsulation: SMD35351024pixel dots
- Pixel density: 27777 pixel dots/m²
- Brightness of white: 6,500CD/m² at least
Description |
Technical parameter |
|
Unit module |
Module size |
192*96mm |
Pixel pitch |
6mm |
|
Pixel density |
27777dots/sqm |
|
Pixel configuration |
1R1G1B |
|
Led specification |
SMD2828 |
|
Pixel resolution |
W32:dots*H:32dots |
|
Cabinet |
Dimension |
576mm*576mm*80mm |
Quantities of module |
18pcs |
|
Power supply |
3pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
12kg |
|
Best viewing distance |
6-150m |
|
Temperature |
Storage: -35°C~+85°C |
|
Working: -35°C~+85°C | ||
Thickness |
12cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. | ||
Power |
Working voltage |
AC220V/110V±10% |
Average power consumption |
300-400W |
|
Max. Power consumption |
≤1000W/sqm |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/16scanning |
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 8000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥10,000hours |
|
Life span |
≥100,000hours |
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
Tolerance of modules clearance≤0.6mm | ||
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Software |
LED media player |
|
Usually, there are three tyeps of package design.

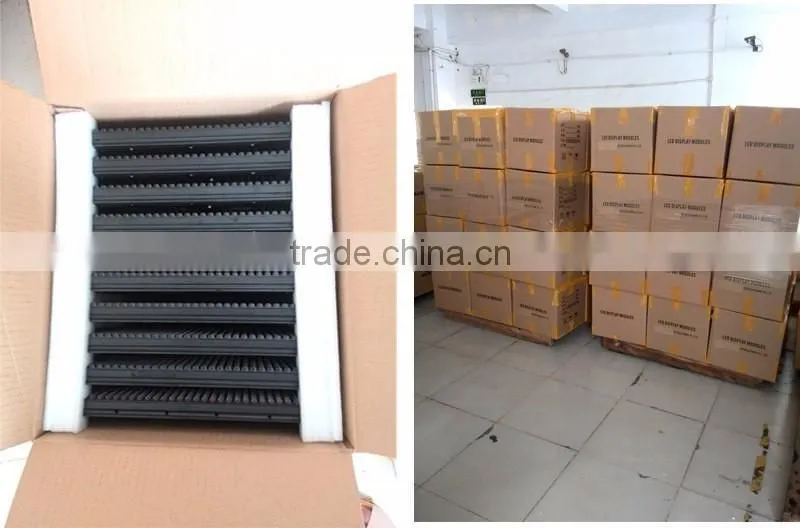

Firstly, we pack the LED display in the paper carton.

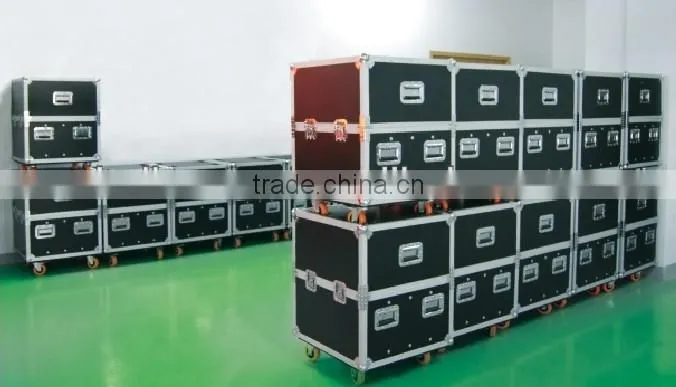

Secondly, we will pack the LED display in the flight case if customer request for frequent movement.

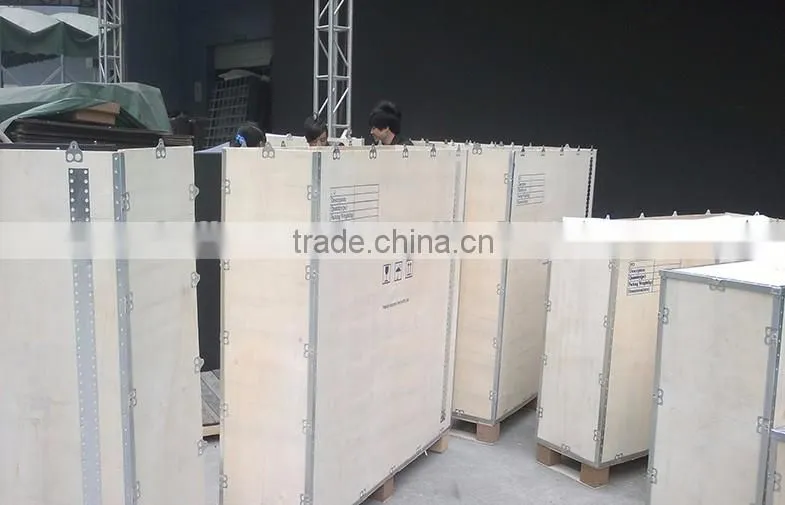

Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
