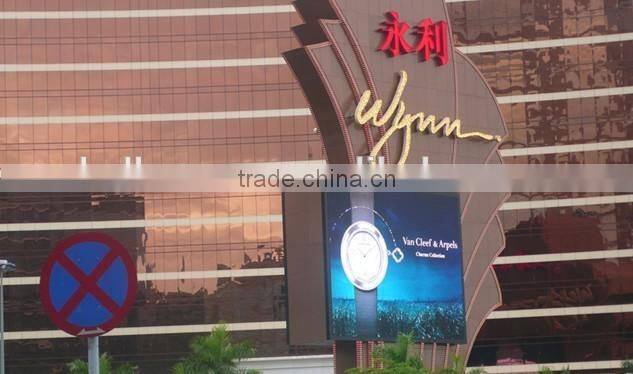

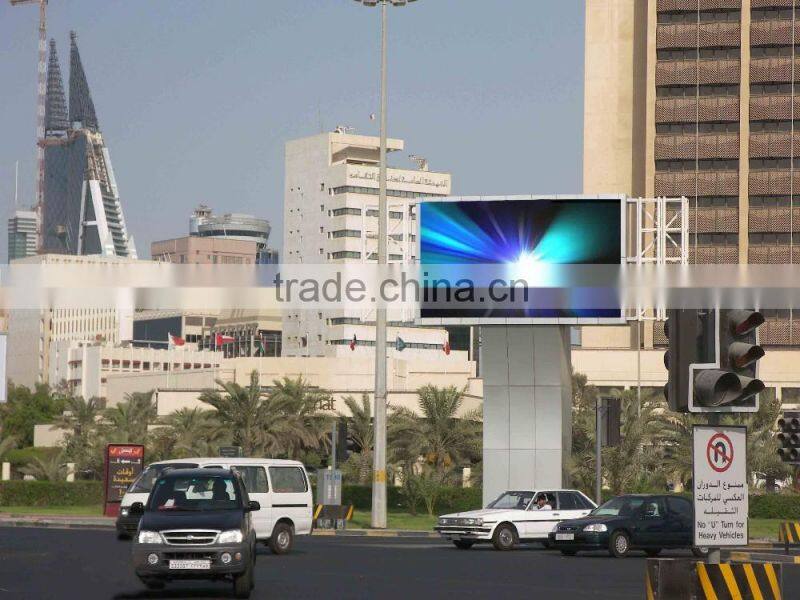

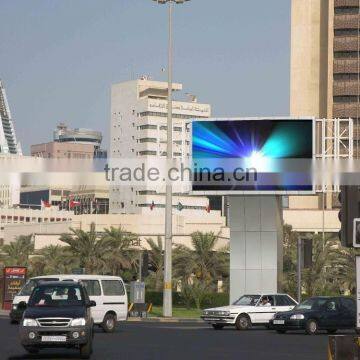

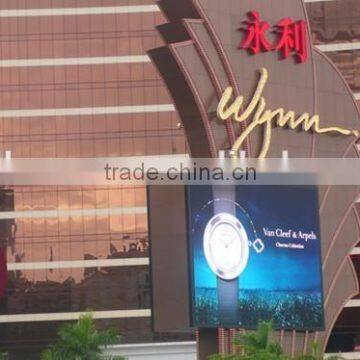

Big Advertising Billboard P6 outdoor led display with 192x192mm 1/8 scan
Shenzhen Jingcan Opto-Tec Co.,Ltd is a high-tech factory which is professionally engaged in LED display and LED stagebackground lights scientific researching and designing, fabricating andmarketing. We are rich in experienced technicians and sales teams who offercustomers integrated service including professional pre-sales technicalstrategies, skillful technology service, patient after-sales service and safetytransportation service as well.
JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
In addition to being one of the top LEDsuppliers in China, JINGCAN led factory provide advanced technology LEDsolutions and best customer service for our both new and regulate clients.JINGCAN orientation is QUALITY& INTEGRITY which is the basement to guideJINGCAN make a promisingly prosperous future.
We have a professional engineer team who can offer domestic and international LED display installation and maintenance service for life long of the products.
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
- Pixel pitch: 6 mm
- Encapsulation: SMD35351024pixel dots
- Pixel density: 27777 pixel dots/m²
- Brightness of white: 6,500CD/m² at least
Description |
Technical parameter |
|
Unit module |
Module size |
192*96mm |
Pixel pitch |
6mm |
|
Pixel density |
27777dots/sqm |
|
Pixel configuration |
1R1G1B |
|
Led specification |
SMD2828 |
|
Pixel resolution |
W32:dots*H:32dots |
|
Cabinet |
Dimension |
576mm*576mm*80mm |
Quantities of module |
18pcs |
|
Power supply |
3pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
12kg |
|
Best viewing distance |
6-150m |
|
Temperature |
Storage: -35°C~+85°C |
|
Working: -35°C~+85°C | ||
Thickness |
12cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. | ||
Power |
Working voltage |
AC220V/110V±10% |
Average power consumption |
300-400W |
|
Max. Power consumption |
≤1000W/sqm |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/16scanning |
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 8000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥10,000hours |
|
Life span |
≥100,000hours |
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
Tolerance of modules clearance≤0.6mm | ||
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Software |
LED media player |
|
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
