P5mm Big Outdoor Full Color LED Display Screen

P5mm Big Outdoor Full Color LED Display Screen thumbnail-1
P5mm Big Outdoor Full Color LED Display Screen thumbnail-2
P5mm Big Outdoor Full Color LED Display Screen photo-1
P5mm Big Outdoor Full Color LED Display Screen photo-2
US$ 465 - 1,300 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JC
Model Number:
JC-FSO-PH5MM
Contact Supplier Request Quote Chat Now
Shenzhen Jingcan Opto-Tec Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JC
Model Number JC-FSO-PH5MM
Usage Outdoor
Tube Chip Color Other, PH12mm video image full color arc outdoor led display
Display Function Graphics
Pixels Other, PH12mm video image full color arc outdoor led display
Screen Dimension 960mmx960mm



P5mm Big outdoor full color LED display screen



Quick Details:



1. GPS location
2. Outdoor waterproof IP65
3. CE ROHS ETL SGS SAA Fcc UL
4. Low power consumption





Product Description



1. CNC + Die Casting process cabinets

The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.

2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.

3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.

4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.



Function and Advantages:

1.The cabinet is made of Die-Casting aluminium , so can be spliced with no crack. The thickness of the cabinet is only 80mm. The assembling can be much quicker and more efficient for no tools is needed, which help customers to transportand mount without any difficulties ,reduce the cost of use greatly!
2.Have obvious competitiveness in quality and price in the international LED market .
3.The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.
4. Make use of the excellent protection technology and reached the index of IP65, can work normally in any weather condition!
5. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.
6.Suitable for outdoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.

LED Application:



Advertising media,  sports stadiums,  airport station integrated information dissemination,  business
establishments,  public area.



Specification



Style P5
Pixel Pitch 5mm
Physcal Pixel 2048
Brightness 1800 cd/m2
Pixel Configuration 1R1G1B
LED Encapsulation SMD3528(Black)
Resolution of Module 32 X 32
Size of Module 320 x 160
Power Supply Quantity 1 PC
Power Consumption Per Square Meter 550W
Size of Cabinet (Width X Height) 576 X 576
Cabinet Material Die-Cast (AL)
Cabinet Weight 13 Kg
Ingress Protection (Front / Rear) IP 43
Pixels Per Panel 8192
Pixels Matrix Per Square Meter 40000
Pixel Matrix Per Pannel 320 x 160
Driving Components MBI 5151
Scan Mode 16/1
Refresh Rate 2500
Current Ampere 60 A
Iuput Voltage (Nominal) 110-240 V
Iuput Power Frequency 50-60 HZ
Input Power (Max) Per Square Meter 950
Operating Temperature Range -20~60

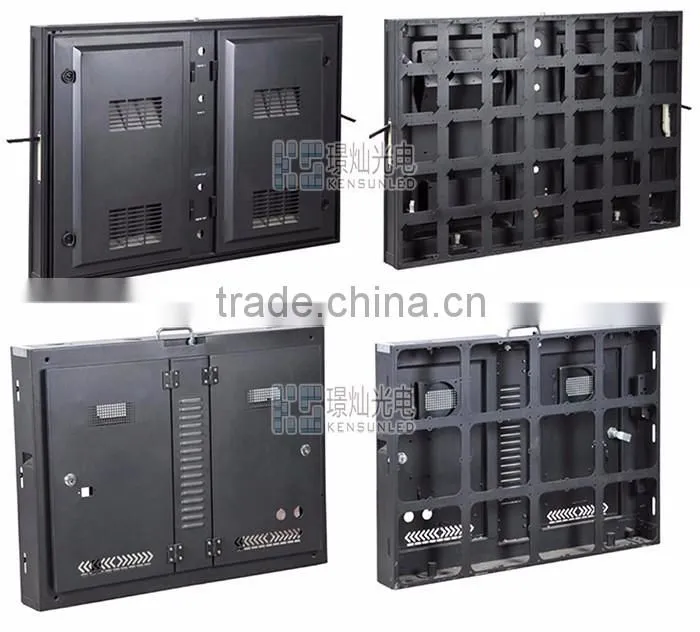

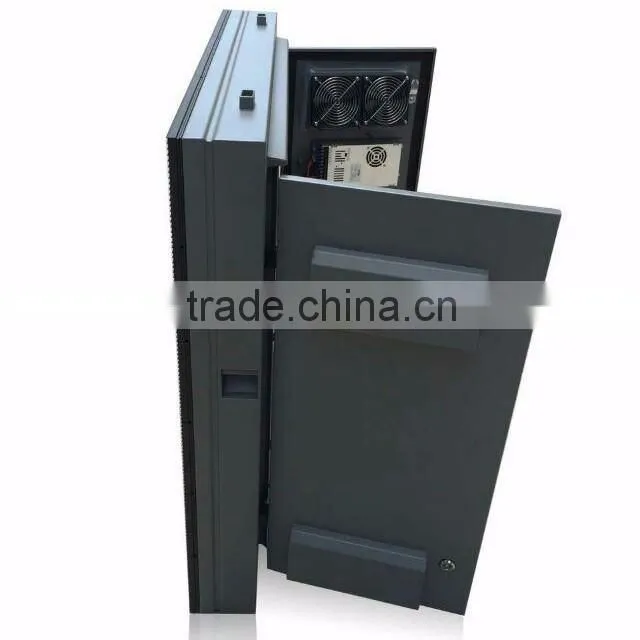

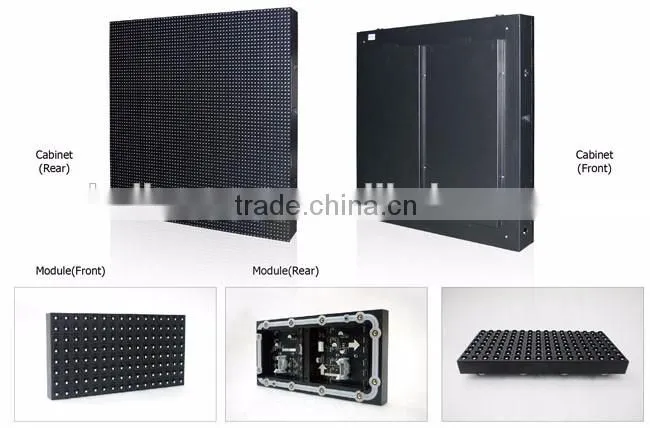

Detailed Images



P5mm Big outdoor full color LED display screenP5mm Big outdoor full color LED display screen



P5mm Big outdoor full color LED display screen



P5mm Big outdoor full color LED display screen





Production Flow

P5mm Big outdoor full color LED display screen
