Home > Products > LED cabinets > P10 Ventilation Advertising Outdoor LED Display with Energy Saving 50% Big outdoor full color LED display screen
P10 Ventilation Advertising Outdoor LED Display with Energy Saving 50% Big outdoor full color LED display screen
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Granite Outdoor Furniture
- 4 seater garden sofa sets
- 4 Piece Black Patio Set with Steel Frame and Gray Cushions, KD Outdoor Garden Furniture set
- Rattan Wicker Chair Coffee Table Set, 4pcs Garden Set,Outdoor Furniture Patio Furniture
- Brand New Outdoor Garden Rattan Sofa Set Outdoor Furniture Rattan Sofa Set Garden Furniture
- Outdoor Furniture Set PE Rattan Wicker Chair Coffee Table Set 3pcs Patio Bristo Set
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JC | Model Number: | JC-FBO-PH16MM |
Product Description

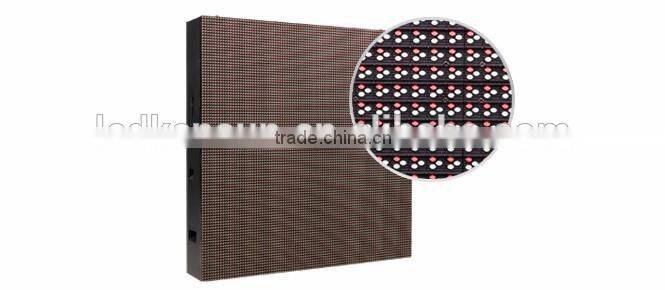

P10 Ventilation Advertising Outdoor LED Display with Energy Saving 50% Big outdoor full color LED display screen
1. Light weight, 15kg per panel
2. Thickness 83mm
3. Fast lock, easy to maintain and dismantle, tools free, labor cost saving
4. Excellent contrast ratio, high definition
5. 36 months warranty, life long free tech-support
6. CE and RoHS approval
7. Waterproof IP65
8. P6, P8, P10, P12, P16 available

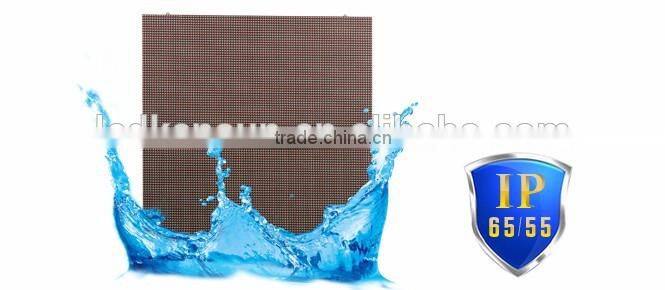

All weather proof, stable and reliable
IP65/IP55 rating for both waterproof and sunscreen, it is fully suitable for outdoor all-weather use. Good performance of dust-proof, moisture proof and corrosion ensures long-term use in harsh outdoor environments.

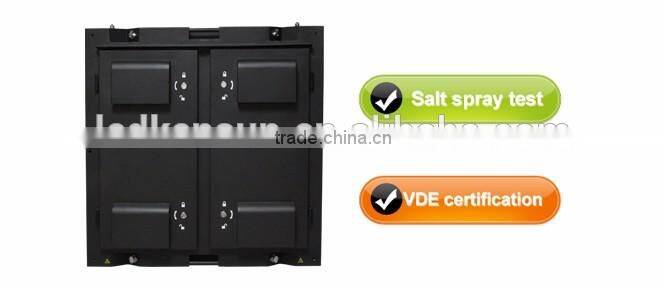

High-quality materials, safety certification
Adopts high-quality flame retardant materials and dual-use sheet metal for anti-UV and safer operational environment. In the meanwhile, L10D has passed rigorous testing and authentication, such as salt spray test, VDE certification etc. Durable plugs allows insertion and removal over 2, 000 times.

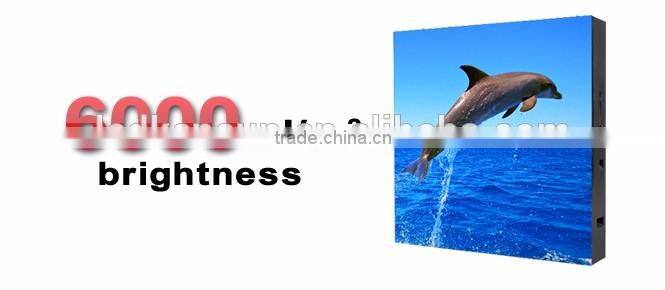

Excellent display quality, perfect picture
Up to 6000cd / m ² brightness, low-grayscale processing, even in direct sunlight, the picture is still clear.
strict quality management, more professional
The selection of LED lamps and chips is strictly controlled by the quality control, and the wavelength range is controlled at 5 nm, to ensure color consistency and high quality imagery.

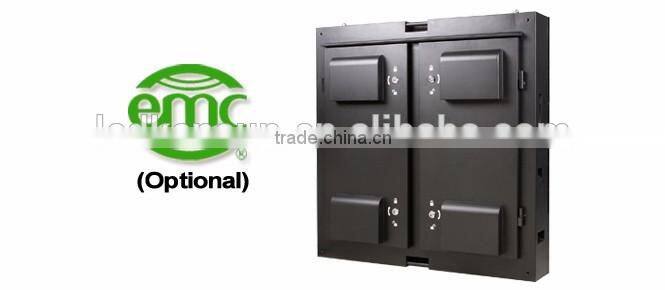

EMC certification, safety and health
Products are designed in strict accordance with the requirements of the design to minimize radiation to reduce the impact on the environment and the harm to human body.

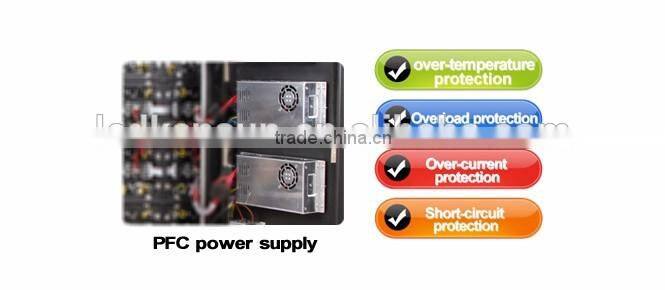

Environmental protection, energy efficiency
Adopt efficient PFC power supply, synchronous rectification to achieve a variety of functions, over-temperature protection, overload protection, over-current protection, short-circuit protection features that make conversion efficiency up to 90%, to ensure the stability of the LED display operation.
Pixel Pitch | 6mm |
Module Size | 192*192mm |
Module Resolution(pixels) | 32*32 |
Cabinet Size | 960mm×960mm |
Panel Resolution(pixels) | 128×128 |
Pixel Configuration(RGB) | SMD 3 in 1 |
Pixel Density(pixels) | 27777 |
Brightness(cd) | 7000 |
Best Viewing Distance(m) | 6-50 |
Average Power Consumption(W) | 400 |
Waterproof Level | IP65 |
Drive Method | 1/8scan |
LED SPEC | 2323 |
Viewing Angle | Horizontal≥160°vertical≥120° |
Environment temperature | Working Temperature-30℃~ +80℃,Storage Temperature -40℃~ +100℃ |
Video Frame Rate(Hz) | ≥ 60HZ |
Display Refresh Rate(Hz) | ≥ 2000HZ |
Grey Level(colors) | 16.7million |
MTBF | ≥50,000 hours |
Lifespan | ≥100,000Hours |
Working Voltage | 220V±15% OR 110V±15% |
Wavelength | R 620-625 G 520-525 B 470-475 |
Graphics Card | DVI Graphics card |
Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
Control System | LINSN |
Software | LED studio 10.0 |
Installation | Wall mount, hung and stand structure |
