Home > Products > Indoor led screens > P4 Super Light HD LED Screen Panel P4 For Indoor Show rental led display

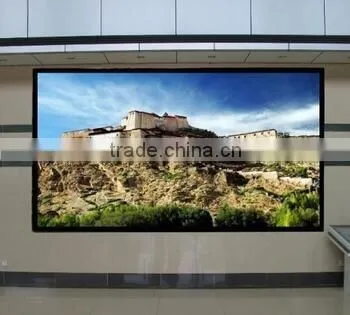

P4 Super Light HD LED Screen Panel P4 For Indoor Show rental led display
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
-
60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
-
80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
-
60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
-
2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
-
Led flood light, led Gas Station Lamp, LED canopy light 100w
-
120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JC | Model Number: | JC-FSI-PH4MM |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, P4 Super Light HD LED Screen Panel | Screen Dimension: | Customized Size |
Product Description
P4 Super Light HD LED Screen Panel P4 For Indoor Show rental led display
1,Advertising LED display screen
LED display,with its unique advantages, has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.Traditional advertising can only show pictures, But LED display can perfect combine text, pictures, video, and sound with high resolution, high brightness and full color! LED display Advertising can easily attract the attention of pedestrians, and also are easy to remember,which can generate greater advertising effectiveness. Led display advertising now are applied in main street, shopping mall, Plaza Park, outstanding buildings, landmarks, airports, stations and so on.
2,Stadium LED display screen
Led screen are used in stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation, as well as commercials advertising.
The common cases are football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium, etc.
3,Transportation LED display screen
In the busy streets of city or on the highway, we can see LED display screen, these screens are generally controlled by a unified control center, in conjunction with other traffic monitoring equipment, automatic display traffic flow or traffic jam information. Also screens display weather, traffic regulations, to remind drivers to drive safely, and has the effect of signpost. The main application areas are in the city's main roads, road density lots, highways and other places.
4,Stage rental LED display screen
LED rental screens can easily installed and removed, also easy to transport.LED rental screens now are widely used in stage show, concert,theater, party,and other entertainment event as background, it can be live show and replay,and its so big that audience far away from the stage can see the performance on the stage clearly, creating a magnificent , highly infectious atmosphere, combined with highquality sound, giving a perfect visual feast.
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time: 5-15 working days
5.2 years warranty, lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period, only charge the material costs fees.
We offer a 1-3 year warranty service according different order, and to provide free technical guidance. We have a professional service team; they are always online waiting to serve you. During the warranty period, all damaged parts could be replaced free of charge
Pixel Pitch | 4mm |
Module Size | 128mm ×128mm |
Module Resolution(Pixel) | 32dots ×32dots |
Pixel Density | 62,500 dots |
LED Type | SMD 3 in 1 |
Pixel Configuration | 1R1G1B |
Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
Drive Mode | Dynamic 1/16 Duty Constant Current |
Cabinet Size | 640 ×512 ×135mm |
Cabinet Resolution | 160dots ×128dots |
Brightness | ≥ 1,200cd |
Contrast | ≥2000:1 |
Viewing Angle | 140°(Horizontal )/140°(Vertical ) |
Minimum Viewing Distance | 3m |
Grey Scale | 10bits/1024levels |
Color Capability | 16,777,216 |
Color Temperature | 5000-9300K |
Average Power consumption | 400W |
Working Voltage | AC 220V/110V s±15% 50-60 HZ |
Frame Frequency | 60-85HZ |
Refresh Frequency | 240-1000HZ |
Brightness Correction | Pixel, Module, Cabinet Correction |
Operating Temperature | Static:-40°C~+85°C Working:-20°C~+60°C |
Operating Humidity | 10-90% RH |
LED Lifespan | 100,000 hours |
MTBF | ≥50,000 hours |
Computer Operation System | Win 98/ Win XP/ Win 2000 |
Video Signal Input | RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
Video Signal Output | RF, S-Video, GB, RGBHV, YUV, YC etc. |
Graphics Card | DVI Graphics Card |
Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
Control System | LINSN OR DB-STAR |
Software | LED studio 10.0 |
Waterproof Level | IP31 |
Installation | Wall mount, hung and stand structure |
Out of Control Rate | 0.01 % |
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
