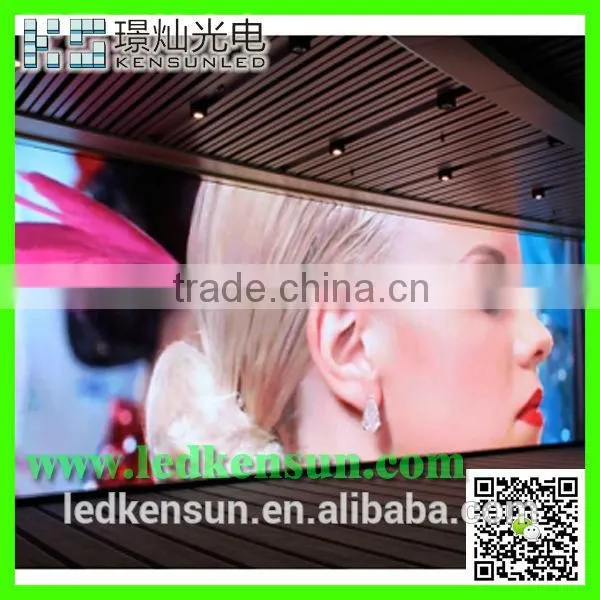

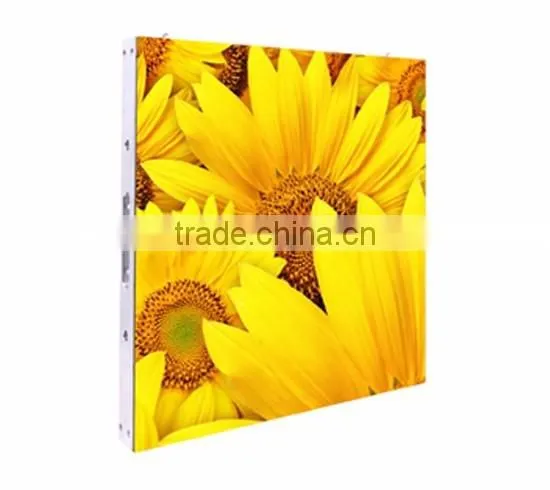

SMD rental P5 outdoor led screen P5 rental led display indoor
1. 32 × 32 = 1,024 dots per module;
2. 160 × 160 mm module size;
3. 1/8 scan constant current;
4. Not less than 3,500 nits/sq.m;
5. 5V drive voltage;
6. About 0.2 kg/pc.
Higher cost performance. Lower maintenance cost . Combined with the control system which has more than 14bit processing ,effecting a higher gray level. Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment. More faster to assemble or disassemble it without any tool. It uses SMD2121 LED light, Taiwan Epistar chip and full glass fiber interior heat dissipation thickened ground lead, so that the electricity current and brightness can be adjusted on line, and the grey scale of the message display signs will not be influenced.
1. CE RoHS certificate
2. 36 months warranty and Life long free tech-support
3. Excellent contrast ratio, high resolution/high definition
4.Perect uniformity and no mosaic
5. Light weight and easy to install
6. Available models:P4, P5, P6, P7.62, P8, P10, P12, ect.
Application:

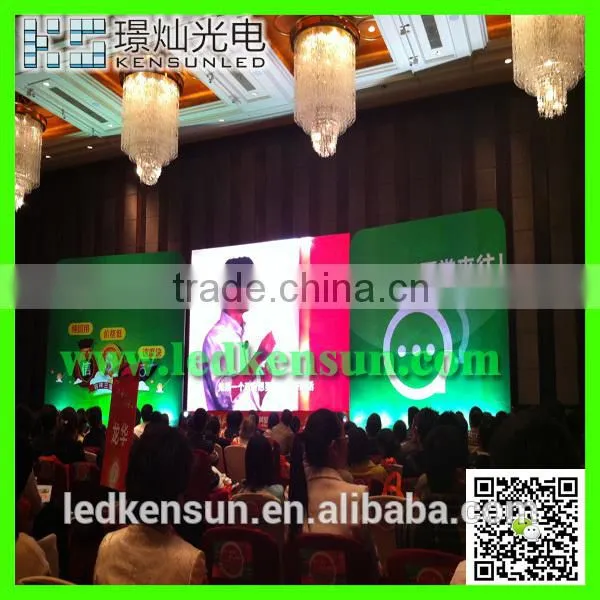

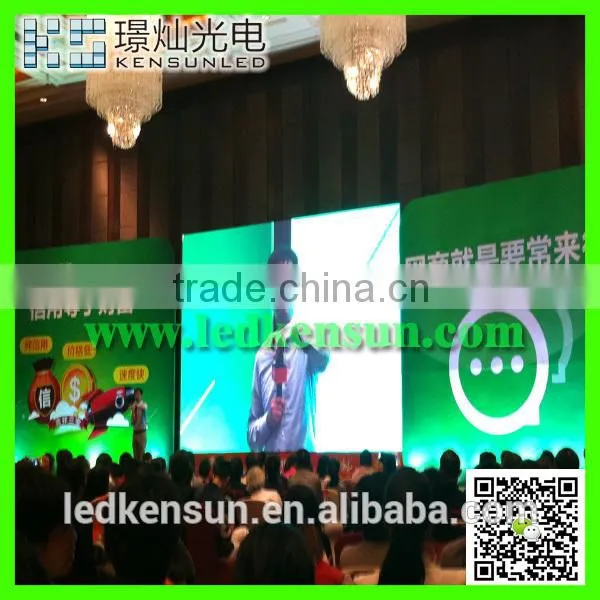

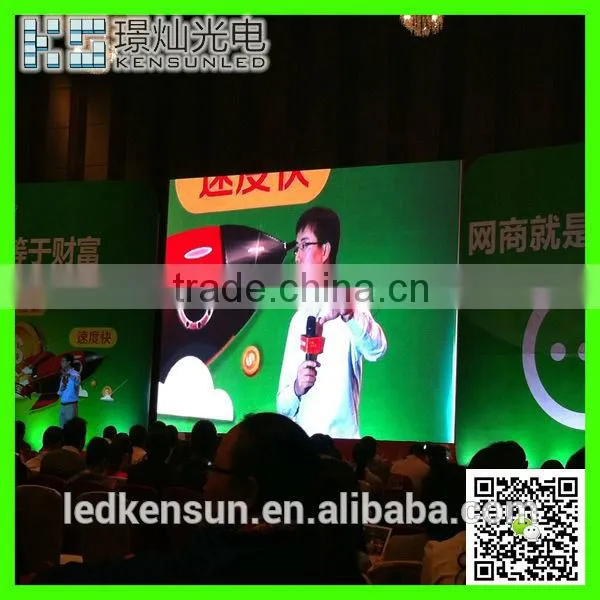

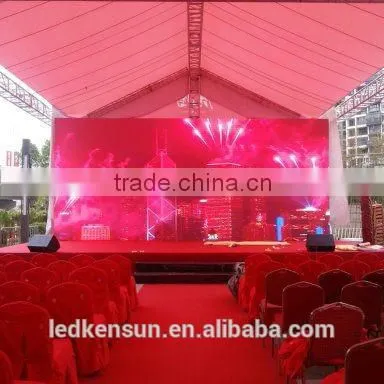

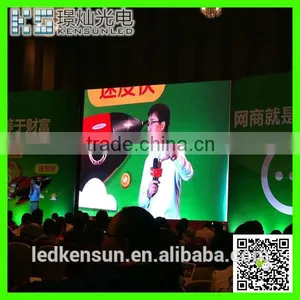

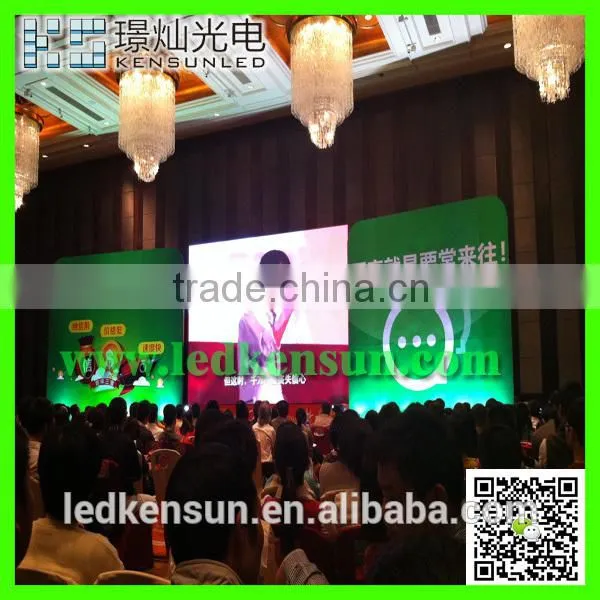

Commercial advertising, stadium, TV studio, mobile media, night club, entertainment events, business establishments;
Advantage:
1. High Contrast ratio: 4000:1
2. First-class LED chip:
3. Clear vivid image quality:
4. Long life time of more than 70, 000 hrs.
5. Easy Installation & Operation
Pixel Density(pixel/) |
40000 |
White Balance Brightness (cd/) |
≥1200(adjustable) |
Max Power Consumption |
300W/cabinet |
Average Power Consumption |
150W/cabinet |
Color Temperature |
3200-9300(adjustable) |
View Angle |
Horizontal 110°;Vertical 80° |
Best Viewing Distance(m) |
5m—100m |
Display Work Method |
1/12 scan |
Digital Processing |
14 bit |
Gray Scale |
65536 levels per color |
Refresh Frequency (Hz) |
≥1200 |
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, |
Waterproof |
No |
Working Temperature(ºC) |
-20~+45 |
Humidity(RH) |
10% - 80% |
Stored Temperature (ºC) |
-30~+60 |
Lifetime (50%Brightness)(Hours) |
≥100,000 |
Input Voltage(VAC) |
AC 220(or 110V) |
Input Power Frequency(Hertz) |
50 to 60 |
Data Connection |
Super CAT6 Cable or Fiber |
Operating System |
Windows(98/2000/XP/Vista) |
Blind Spot Rate |
<0.00001 |
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
Earth Leakage Current(mA) |
<2 |
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
