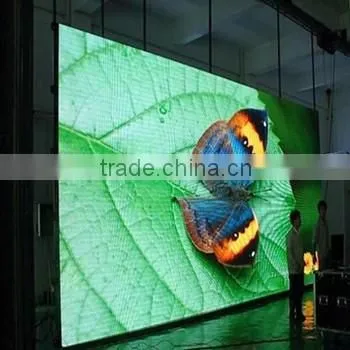

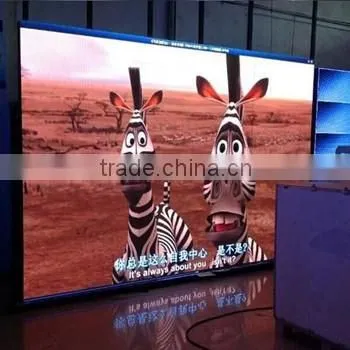

full color LED video wall/Electronic LED display/Advertising LED screen P7.62
- Pixel pitch: 7.62mm
- Encapsulation: SMD 3535
- Module resolution (L x H): 32X16mm = 512 pixel dots
- Pixel density: 17222 pixel dots/m²
- Brightness of white: 6,500CD/m² at least
Pixel configuration |
SMD3528 1R1G1B 3 in 1 |
|
LEDs configuration |
Red:wave length: 625~630nm;300-400mcd |
|
Pixel pitch(mm) |
7.62 |
|
Pixel density |
17222 |
|
Calibrated brightness(cd/sqm,nit) |
1700 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R: G: B = 30%:60%:10% |
|
Color temperature |
3,500° -,500° K(adjustable) |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
Horizontal: 160° (80° off center); Vertical: 160° (80° off center) |
|
Readability viewing angle |
Horizontal/ Vertical: 170° (85° off center) |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>1200 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP54 backside |
|
LED Drive |
Constant-current drive |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature |
-30-65' |
|
Storage temperature |
-35-70' |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Servicing |
Front and back serving optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 V AC single phase(50-60Hz) |
|
Maximum power consumption(W/SQM) |
550 |
|
Average power consumption(W/SQM) |
220 |
|
Screen operation mode(scan/static) |
1/8 |
|
Module configuration(Pixels quantities of the module) |
Length |
32 |
Height |
16 |
|
Module dimensions(mm) |
Length |
244 |
Height |
122 |
|
Cabinet configuration |
Length |
4 |
Height |
6 |
|
Cabinet dimensions(mm) |
Length |
975 |
Height |
732 |
|
Width |
170 |
|
Screen configuration |
Length |
4 |
Height |
4 |
|
Screen dimensions(m) |
Length |
3.9014 |
Height |
2.9261 |
|
Screen Size |
SQM |
11.4159 |
Recommend Optimal Viewing Distance: Minimum & Maximum |
Min |
5 |
Max |
104 |
|
Resolution ratio(dots/pixels) |
Length |
512 |
Height |
384 |
|
Aspect Ratio(L:H) |
1.33333 |
|
Packaging configuration |
2 standard cabinets in a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM) |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
Packing quantities |
8 |
|
Packing volume(CBM) |
4 |
|
Packing Dimensions(mm) |
Length |
1080 |
Height |
937 |
|
Width |
520 |
|
Packing weight(KG) |
net |
428 |
gross |
578 |
|
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
