High Definition 3D P3 Stage LED Screen / Full Color LED Sign For Indoor
- Seamless connection;
- Eliminate noise for its noiseless design;
- With working lifespan at least 100000 hours;
- High contrast masks, no dazzle, with better contrast ratio;
Physical density: 10322dots per sq.ft (111111dots per sq.m);
Module pixel configuration of W 80 × H 80 dots;
Module size is W 9.45 X H 9.45 inch (W 240 × H 240 mm);
More than 960Hz refreshing frequency and 14bit grey scale;
120 °Horizontal viewing angle and 120° vertical viewing angle;
Driving method is 1/16 scan constant current;
Led lamp lifespan is more than 100000 hours;
Less than 1mm module plainness;
More than 90% of pixel & module lightness uniformity.
Detailed Description:
Seamless connection;
Eliminate noise for its noiseless design;
With working lifespan at least 100000 hours;
High contrast masks, no dazzle, with better contrast ratio;
Excellent heat dissipation, noiseless, preference for indoor use;
Wide viewing angle, adjustable brightness for its vertical of 120 deg;
Fast get through input/output signal;
Support adjustable color temperature within 2500k010000K.
Popular Application:

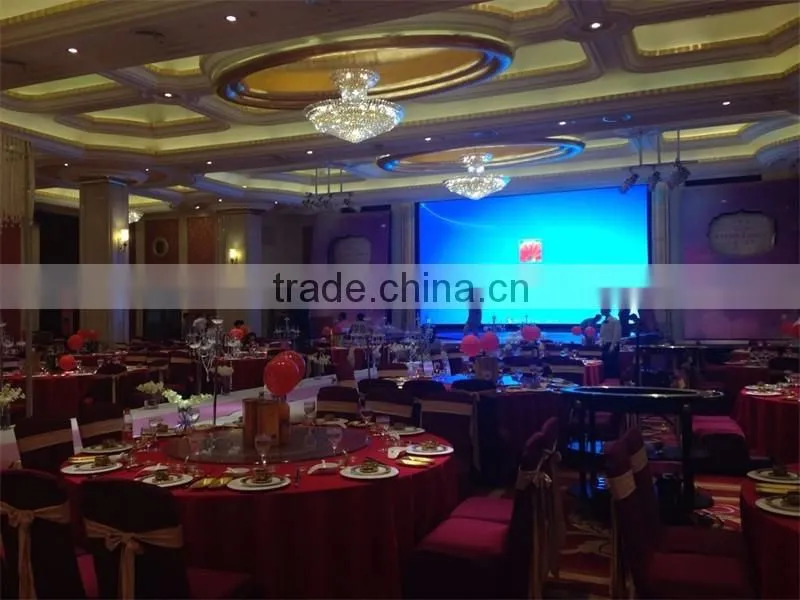

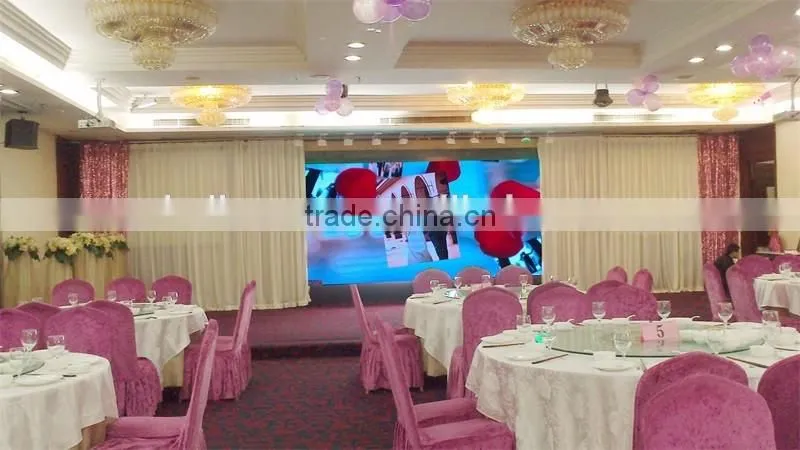

Train station/bus station/shopping center/airport/exhibitions/car shows/fashion shows/concerts/ceremonies/etc
Red chip(wavelength range: 620-630nm, 5nm) |
Brightness range:120-180mcd |
|
Green chip(wavelength range: 460-470nm, 4nm) |
Brightness range: 400-550mcd |
|
Blue chip(Wavelength range: 520-530nm, 4nm) |
Brightness range: 60-90mcd |
|
module |
Led type |
SMD 3 IN 1:SMD2121 |
Pixel pitch (mm) |
3mm(0.12 inch) |
|
Module resolution (W X H) |
W 80 x H 80 dots |
|
Module dimension(W x H inch) |
W 9.45 x H 9.45 inch |
|
cabinet |
Module quantity(W × H) |
W 2 × H 2 |
Cabinet resolution(W × H) |
W 160 × 160 dots |
|
Cabinet dimension(W x H inch) |
W 18.9 x H 18.9 inch |
|
Cabinet area(sq.ft) |
2.48 sq.ft (0.23sq.m) |
|
Pixel density(dot/m2) |
10322dots/sq.ft(111111dots) |
|
Brightness |
168 CD/sq.ft (1800 CD/sq.m) |
|
Cabinet flatness(inch) |
≤0.08inch (0.2mm) |
|
Maintenance |
Back Access |
|
Cabinet material |
Die-casting Aluminum |
|
Optical parameters |
Single-point brightness correction |
available |
Single-point color correction |
available |
|
Brightness(nits) |
≥1000(color temperature 6500K) |
|
Color temperature(K) |
3200—9300 adjustable |
|
Viewing angle (Horizontal/Vertical) |
120°/120° |
|
Luminous point center distance deviation |
<3% |
|
Color uniformity |
≥97% |
|
Contrast ratio |
4000:1 |
|
Electrical parameters |
Max power consumption |
111.48w /sq.ft (1200 W/m2) |
Average power consumption |
39-58W/sq.ft |
|
Voltage range |
AC85~264V,47-63(Hz) |
|
Security Features |
GB4943/EN60950 |
|
Processing performance |
Frame Rate(Hz) |
50/60 Hz |
Drive mode |
Constant Current Driver, 1/16 scanning |
|
Gray levels |
16384 |
|
Refresh rate(Hz) |
≥960 |
|
processing |
≥14 bit |
|
Module comes with power failure |
Save luminance, Color correction, module data |
|
Video playback capability |
2K, 4K Ultra-high-definition video |
|
Use parameter |
Life time(hrs) |
50,000H |
Operating temperature / humidity |
-10 – 40℃ / 10%-80%RH(non-condensing) |
|
Storage temperature / humidity |
-20 – 60℃ / 10%-85%RH(non-condensing) |
|
Certification |
CCC/FCC/TUV/CE/ETL |
|
