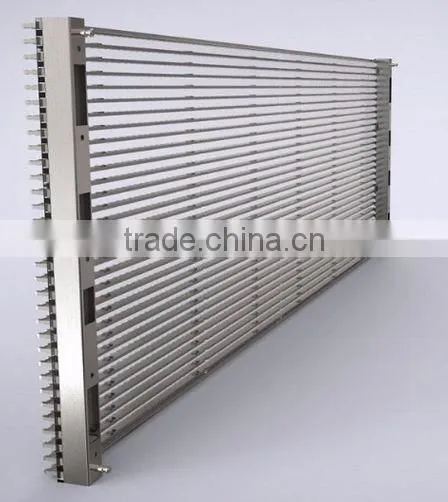

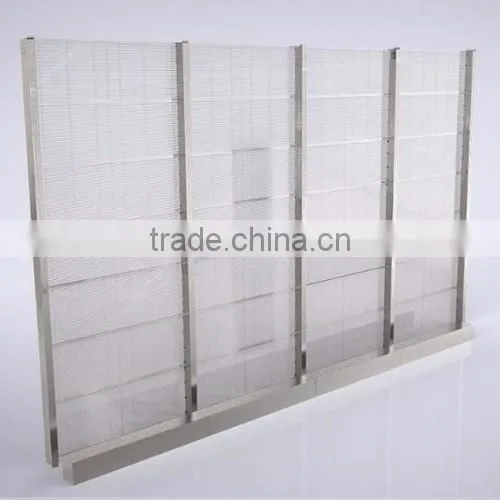

P25 Aluminum Outdoor Transparent LED Screen Curtain LED Advertising Display
1. Ultra thin and light weight (only 35Kg/panel), portable handy
2. Aluminum cabinet CNC process with high precision
3. Modular design, make it easy to maintain
4. HD show without water ripple on program broadcasting
5. Easy to assemble and dismantle with fast locks on each cabinet
6. High gray level and good color uniformity with brand IC, led lamp
7. Energy-saving without fans design, natural cooling effect
1. 3 Highs: high gray scale, high refresh, high contrast, with vivid display effect;
2. High brightness & Waterproof Brightness up to 5,000nits, IP65 waterproof level. It provides a perfect solution for outdoor stage use.
3. 2 Aging tests: 48 hours for led module test and 72 hours for led screen test to ensure the perfect quality.
4. Fast Lock System & Natural Cooling System Design .Fast lock system enables installation and dismantle to be much faster: an average worker can finish 50- 70 panels per hour. Natural cool system design results in good heat dissipation and less power consuming.
5. Various applications: suit for hanging up, piling and fixing installation. Usage: indoor information publish, indoor advertising, etc.
Applications:
Stadium perimeter, entertainment events,Commercial advertising, mobile media, night club, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Colour temperature |
5000~9000 k |
Pixel structure |
φ3 oval lamp, 1R1G1B |
Pixel pitch |
25mm |
Pixel density |
1600 dots/ |
Luminance |
5000cd/ |
Module dimension |
1000mm(W) * 17mm(H) |
Module resolution |
40 pixel(W) * 1 pixel mm(H) |
Cabinet dimension |
1000 * 1000mm |
Cabinet resolution |
40* 40 |
Cabinet area |
1 sq. meter |
Optimal visual distance |
>20m |
Visual angel |
120 / 70 degree (H/V) |
Max power consumption |
≤600w / |
Average power consumption |
≤300w / |
Brightness adjustment |
Adjust according to the environment |
brightness software (0%-100%adjustable) | |
Gray scale |
point by point 4096 gray grade levels of |
each color, 16 bits γ correction available | |
Drive mode |
Static, constant current |
Frame frequency |
≥60HZ |
Refresh frequency |
≥1500HZ |
Input voltage |
AC110V220 volts |
Operation temperature |
-40℃~ +65℃ |
Operation humidity |
10%~90% |
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
Control system |
DVI card + master control card + receiver card |
MTBF |
>5000 hrs |
Life span (50% brightness) |
100, 000 hrs |
Malfunction dot rate |
1/10000 |
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
Cabinet material |
Epoxy paint coated, aluminum / iron |
Application: |
Rental / Permanent installation available |
1. Pre-sales service:
a) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
b) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
2. After-sales service:
a) Service principles: response in time, solve problems as soon as possible and ensure the use.
b) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
c) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
d) Under normal use and storage, Our Company will be responsible for the equipments.
Repair Service for LED Display Lifelong time
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
