P10 Glass led screen with high transparent rate indoor flexible led curtain display
Main Characteristics:
1. Good visualization:
Glass based design allows the light to pass through the glass without any influence to the building structure around..
2. Ultra-thin, and ultra-light.
With only 8mm width and 12kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.
3. Frameless structure
Asram glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.
4. Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5. Saving lighting costs of the whole building.
Besides good advertising effect, Asram LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6. Wide use range.
Applications:

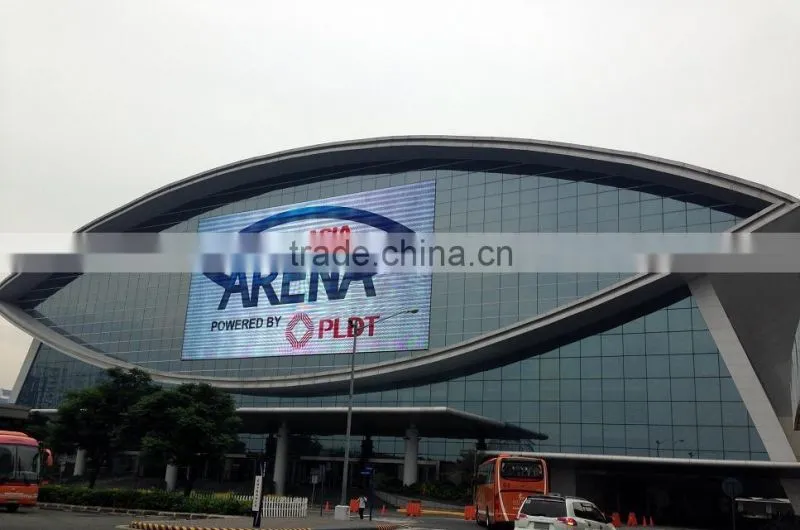

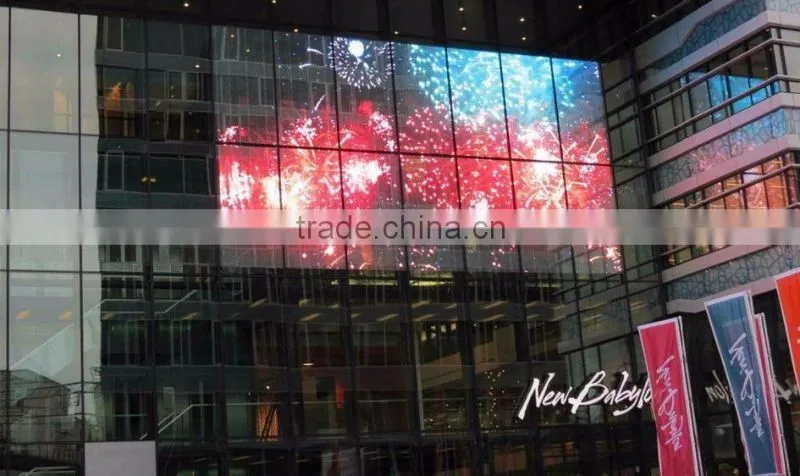

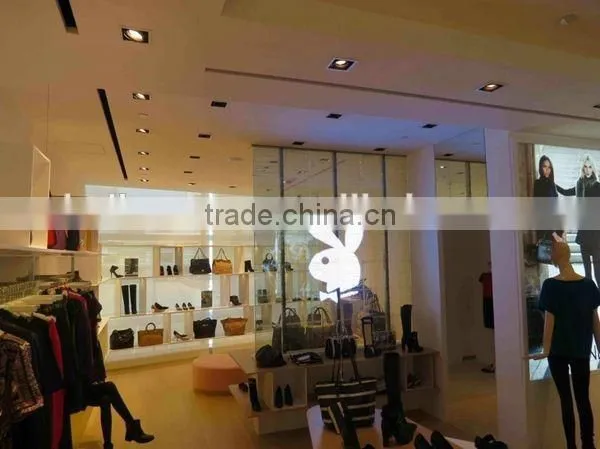

Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
Our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for 2 full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free
spacification
Part Number |
JC-FSO-PH10MM |
Resolution |
32(H)×16(V) |
Pixel Pitch |
10mm |
LED Configuration |
1R1G1B 3-IN-1 SMD |
Pixel Density |
10,000pixels/ m2 |
Module Size |
320*160mm |
Driving IC |
MBI5024 |
Driving Method |
1/4 Scan, Constant Current |
Cabinet Weight |
42kg/sq.m. |
Mechanical Ratings | |
Hanging Weight Support |
2T |
Surface Flatness |
Gap<0.5mm |
Optical Ratings | |
Brightness |
>1,800cd/ m2 |
View Angle |
150°/150° |
Gray Scale |
8bits input, correction with 14bits |
Display COLOR |
16.7M |
Brightness Adjustment |
0~100% |
Power Supply | |
Operation Power |
90~260V 50~60Hz |
Max. Power Consumption |
600W/ m2 |
Average Power Consumption |
200W/ m2 |
Control System | |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental | |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
5000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |

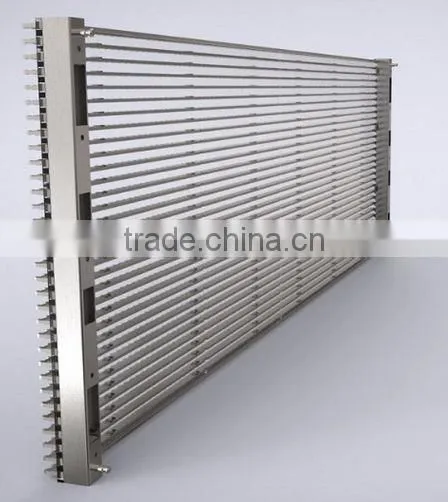

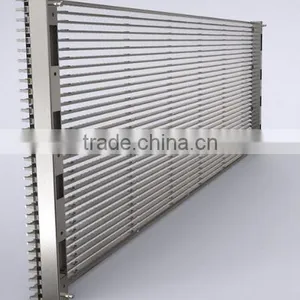

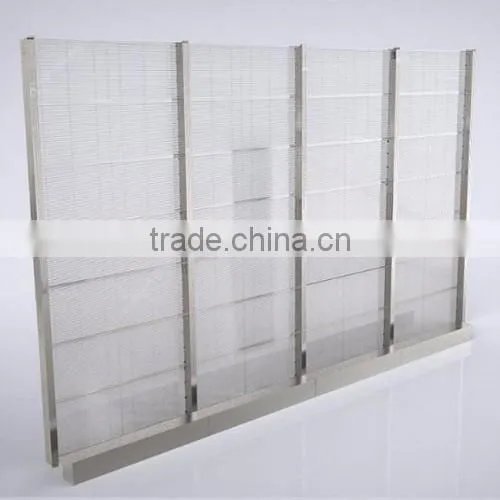

Product picture

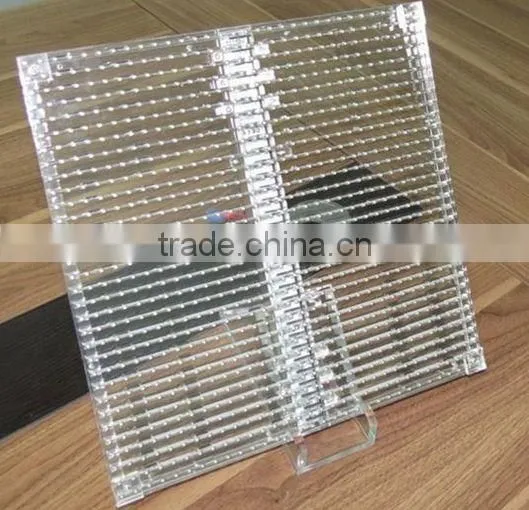

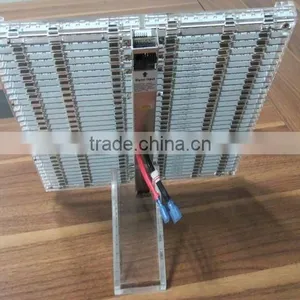

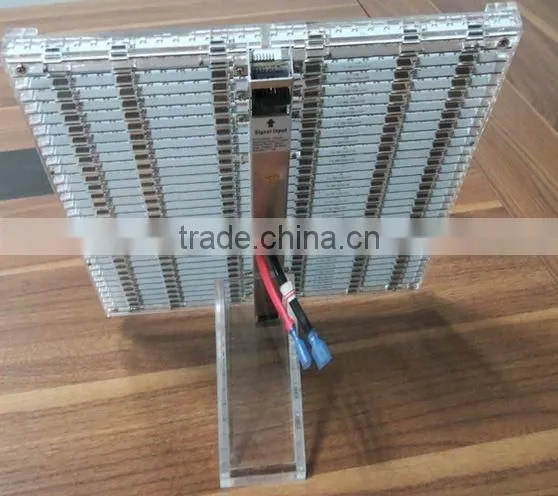

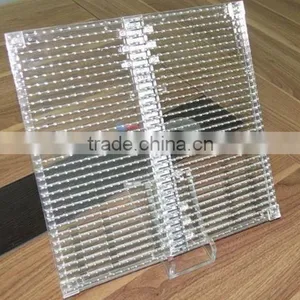

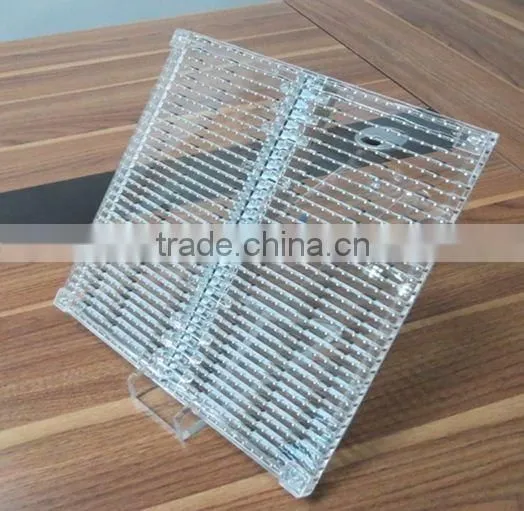

Product module

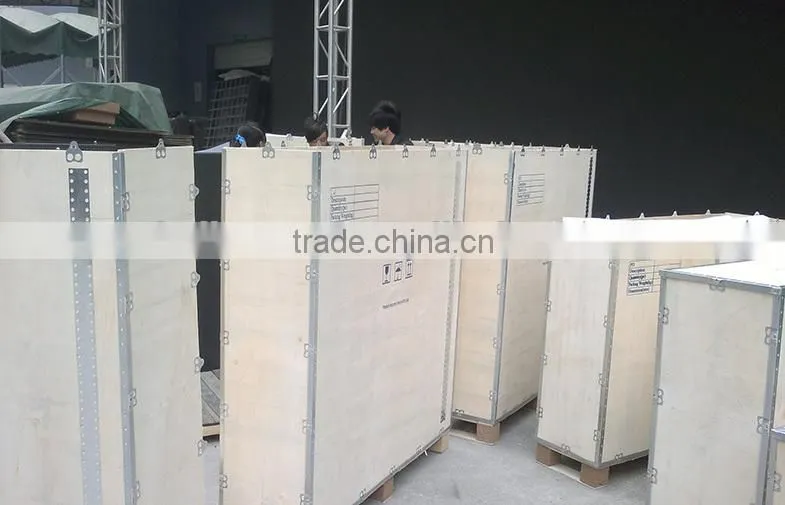

Packing case
Certification
