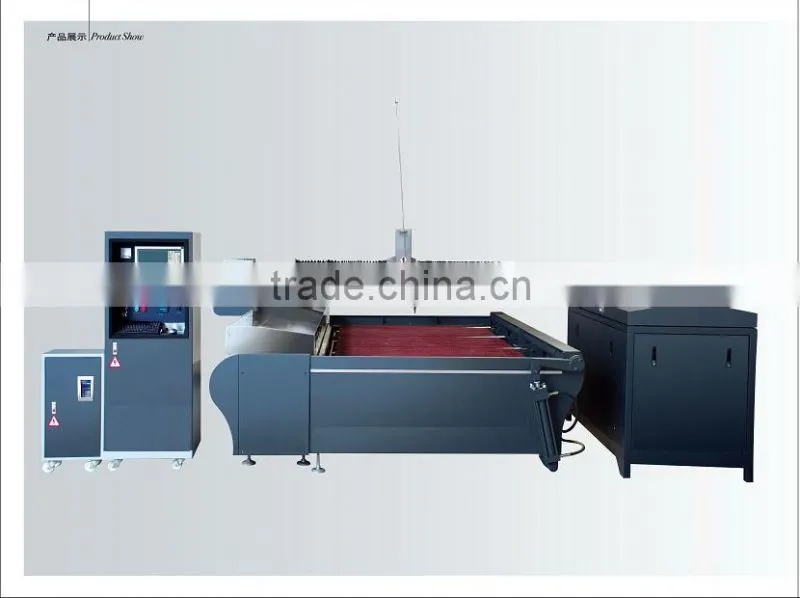

High Pressure 300mpa Water Jet Cutting Machine

Name: High Pressure 300mpa Water Jet Cutting Machine
Brand: TIANJUN
Price: USD $6,100 - 7,000 / Unit

FOB Price

USD $6,100 - $7,000 / Unit

1 Unit(Min.Order)

Supply Ability 4 Unit / Units per Month
Port Guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

TIANJUN

Model Number:

TJJ300

Product Description

Specifications

High Pressure Water Jet Cutting Machine
Pressure: 300mpa
CNC water jet machine
stone cutting machine for Medallion
water cut

System features

Cod.

Component

WORKINGTABLE WITH travel:3000*2000 (have seven size)

HITH PRESSURE INTENSIFIER PUMP 17.5KW

CNC NUMERICAL CONTROL INDEPENDENTLY DEVELOPED

PRESSURIZED ABRASIVE TANKING kg 20 WITH MINIHOPPER

I CUTTING HEAD IMPORT FROM ENGLAND

INDEPENTLY DEVELOPED SOFTWARE WITH AUTOMATIC NESTING

DESCRIPTION OF THE EQUIPMENT

WORKING TABLE

WORKING TABLE AREA

OUTSIDE TABLE DIMENSIONS

X- AXIS

3000 MM

X- AXIS

3050MM

Y- AXIS

2000MM

Y- AXIS

2050MM

Z- AXIS

150MM

Z- AXIS

150MM

WORKING TABLE HEIGHT

1000MM

CUTTING ACCURANCY

0.2MM

Voltage/Frequency

380V/50HZ

REPEATIBILITY

0.01MM

RAPID TRAVERSE SPEED

0~ 12M

TABLE STRUCTURE

CANTIEVER STRUCTURE: convenient for loading material

SPECIAL DESIGN: two holes with the tank for cutting jet water out while jet water reach 1000mm

Catcher net fixed the water tank for the cutting pieces

MOVEMENT SYSTEM

GUIDEWAYS: adopt high precision beeline scroll guide line and Germany Ball bearing line screw (X, Y axis ), ensure high precision of machine running

Machined: X axes and Y axes adopt FUJI servo system import from Japan, ensure machine high sensitiveness, high accuracy, high speed, high production

SPECIAL DUSTPROOF DESIGN: like organ frame fixed in the Guideway to support and guarantee maximum rigidity against flexion, torsion, vibration and resonance.

Location of the linear units inside the table frame for maximum protection,

Self -lubrication and self -cleaning device on the side of the linear

Unit carriages, lubricating the guides while they move 10000KM

Motorized CNC movement of the Z axis

Crossbeam is steel structure, ensure machine smooth, cutting surface smooth .make the machine easy to maintenance

Mini sand box place on the X axis can load 20KG sand automatic supply for cutting

HIGH PRESSURE INTENSUIFER PUMP

Domestic three –plunger high pressure reciprocating Pump

Motor power (HP)

18.5KW

Water consumption (L/MIN)

Orifice diameter (mm)

0.20~0.33

Max high pressure (MPA)

300

Model

TJJ300

High Pressure Water Jet Cutting Machine
Pressure: 300mpa
CNC water jet machine
stone cutting machine for Medallion

Water jet machine

CE CERTIFICATE

KMT surcharge

water cut

QUALITY CONTROL:

STONE FAIR:

OUR CUSTOMERS COVER:

OUR COMPANY:
