2014 KMT supercharger water jet granite cutting machine

Specifications

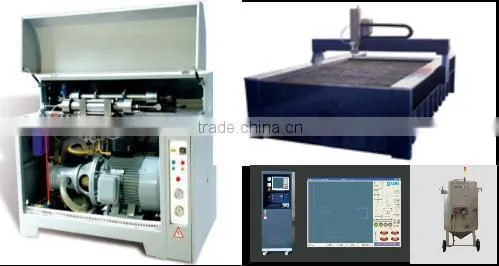

Water jet granite cutting machine
Pressure:420mpa
CNC water jet machine
Medallion cutting machine
KMT supercharger

420MPA Super-high Pressure Water-jet Cutting Equipment



We can provide 9 types of this machine according to the size of your stone:

TJY-1.2*1.0 ,TJY- 1.6*1.5 ,TJY- 2.0*1.5 , TJY-2.5*1.5 , TJY-2.5*2.0 , TJY-3.0*1.5 , TJY-3.0*2.0 , TJY-4.0*1.5 , TJY-4.0*2.0.  With high pressure pump, original USA ACC INTENSIFIER. Cutting more accuracy and stable performance.



Basic Characteristics
S.N.	Component Parts
1	General configuration of a complete set of the machine: main machine, cutting platform and numerical control system
2	effective cutting area of the workbench: 4000mm * 2000mm
3	Structure: cantilever, convenient for loading and unloading materials, servo motor for direct drive shaft-arm cutting to ensure cutting precision
4	High-pressure pump power: 37 KW, use of KMT supercharger imported from Germany
5	Independent research and development of numerical control system, multi-threaded operation achieved under WINDOWS XP
6	Stainless Steel sandbox with load of 20KG
7	The main part of the cutting blade is imported from the United Kingdom
8	It can be seamlessly connected with the AUTO CAD to directly transform DWG files into G codes
Specific Description of the Equipment
Working table
Effective Cutting Area of the Workbench
X-axis		4000 MM
Y-axis		2000MM
Z-axis		150MM
Maximum Size of the Workbench
X-axis:4050mm		Y-axis: 2050mm		Z-axis: 150mm
Height of the Workbench		1000MM	Cutting Accuracy	plus or minus 0.2MM
Control Accuracy		plus or minus 0.01MM	Repeat Positioning Accuracy	plus or minus 0.01MM
Rapid Positioning Speed		10000mm/min	Voltage/Frequency	380V/50HZ
Cutting Platform
Guideway:using the high-precision linear rolling guideway and ball screws without gaps with Taiwan's nuts or domestic ground ball screws without gaps to ensure high cutting precision.
X-axis and Y-axis: using the servo motor imported from Japan to drive the cutting to ensure cutting accuracy
Dust-proof design: internal black organ-style dustproof cover against dust and water to ensure the cleanness of the screw guideway, so as to ensure cutting accuracy and easy cleanness and maintenance of the equipment.
Centralized automatic lubrication system: when the guideway runs 10000KM, the lubrication system will automatically conduct lubrication, to ensure correct operation.
Automatic manual-operation system: to achieve long-range operation, ensuring the operator's safety and convenience.
Pneumatic unloading valve: instant on-off without resistance, accurate and effective unloading of the pressure of the system, to achieve operation without load and no-load start of the air knife.
HIGH PRESSURE PUMP
The use of original German imported KMT supercharger with stable pressure increase to ensure stable cutting pressure
Power of main machine (HP)   37KW
Water consumption (L/MIN)    3.7
Diameter of the nozzle (gem) (mm)  0.20~0.33
Maximum pressure (MPA)   420
Model TJY420
Way of Direction-changing        Electronic Direction-changing
One Power Storage Device
Two Water Filte
Wa rster Pump and Oil Pump, one for each
One High-pressure Water Switch
One Fuel Tank
Hydraulic Pressure Meter, Fuel Pressure Meter, High-pressure Water Control Button, and High-pressure Oil Control Button, one for each
Air-cooled System, no other cooling systems
One High-pressure Pipe             (7~ 10 meters)











Water Jet Machie material parts details:



Water Jet Machine packaging photos:

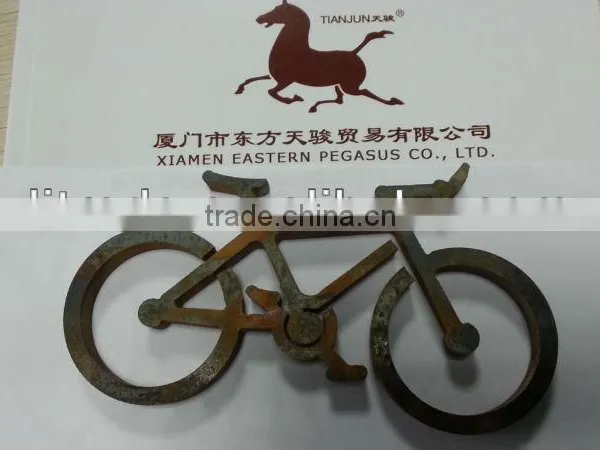

  Water jet final products can be:
