New Styrofoam Polystyrene Moulding Machine
- Shanghai or Ningbo
- T/T Money Gram Credit Card
You May Like
-
Accuracy Expanded Polystyrene Foam Machine
-
New Styrofoam Polystyrene Boxes Making Machine
-
Longwell High Quality EPS Decoration Polystyrene Cornice Machine Quality Choice
-
EPS Shape Molding Machine For Lost Foam Casting
-
Longwell Hot Sale EPS Machine EPS Foam Box Making Machine Supplier's Choice
-
ICF Insulated Concrete Forms Mould for Building
Product Details
| Condition | New | Product Type | Other, polystyrene moulding machine | |
| Place of Origin | Zhejiang, China | Brand Name | Longwell | |
| Model Number | LWS-1400A | Voltage | 380V | |
| Power(W) | 14.1KW | Dimension(L*W*H) | 4600*2140*3100mm | |
| Weight | 4900KG | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

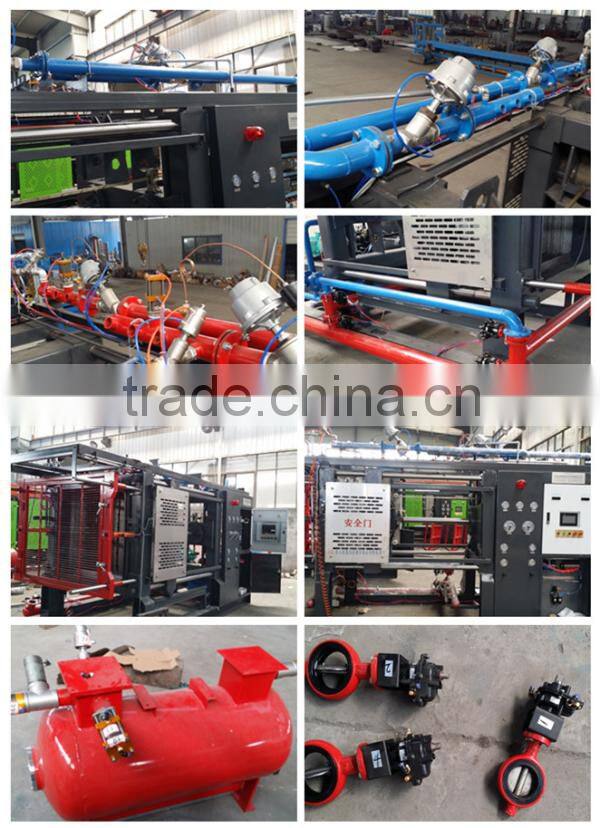

New Styrofoam Polystyrene Moulding Machine
Advantage:
-1 year quality guarantee, spare part for free
- 2 engineers go to install EPS production line
I. EPS shape production line mainly includes 3 parts:
1. EPS pre-expander: it’s used to make EPS raw material to foamed beads
2. EPS shape molding machine: it’s used to make foamed beads to kinds of shaped products like foam box, electric & electronic package, ICF, helmet, seed tray, decoration cornice and etc.
3. Mould:it’s hang in the shape molding machine to make different products.
Working flow of New Styrofoam Polystyrene Moulding Machine
A.EPS pre-expander
It turns eps raw material (expanded polystyrene) to big and light foam beads through steam heating. With PLC and touch screen to realize full automatic production for feeding, heating and ejecting foam beads.
ITEM | LWS-1100B | |
Expansion Chamber | Diameter | DN1100 |
Volume | 1.4m3 | |
Usable Volume | 1.0m3 | |
Steam | Entry | DN50 |
Consumption | 6-8kg/cycle | |
Pressure | 0.6-0.8Mpa | |
Compressed Air | Entry | DN25 |
Consumption | 0.9-1.1m3/cycle | |
Pressure | 0.5-0.8Mpa | |
Drainage | Upper Drain Port | DN100 |
Down Drain Port | DN100 | |
Material Conveying Line | DN150 | |
Capacity | 10.5g/l 350kg/h | |
15g/l 580kg/h | ||
20g/l 800kg/h | ||
30g/l 950kg/h | ||
Connected Load/Power | 19.5KW | |
Expanded Density | 10-40kg/m3 | |
Density Tolerance | <±2% | |
Overall Dimension | 2900*4500*5900(mm) | |
Weight | 3200kg | |
B. EPS molding machine
The machine applies PLC and touch screen with advanced molding technique can produce various shapes of EPS products, the vacuum and hydraulic system can increase molding speed and reduce cooling time.
Item | LWS-1200A | LWS-1400A | LWS-1600A | LWS-1800A |
Mould size | 1200*1000mm | 1400*1200mm | 1600*1350mm | 1760*1460mm |
Produce size(mm) | 1050*850*350 | 1200*1050*350 | 1420*1200*350 | 1580*1320*350 |
Minimum mould thickness | 200mm | 210mm | 220mm | 230mm |
Stroke speed | 210mm/second | 190mm/second | 140mm/second | 140mm/second |
Steam entry | DN65 | DN80 | DN80 | DN80 |
Water entry | DN65 | DN65 | DN65 | DN65 |
Compressed air entry | DN40 | DN40 | DN50 | DN50 |
Vacuum pump capacity | 165m3/h | 230m3/h | 280m3/h | 280m3/h |
Power | 10.6kw | 14.1kw | 14.5kw | 14.5kw |
Machine size(mm) | 4500*1840*2900 | 4600*2140*3100 | 5000*2300*3400 | 5000*2450*3600 |
Weight | 4600kg | 4900kg | 5700kg | 6000kg |

Application of New Styrofoam Polystyrene Moulding Machine
C. Moulds
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
Shipment:
By sea from Shanghai or Ningbo port
By train from Ningbo station
By truck from Kashgar, Urumuqi or other checkpoint
1. Take our valued client as priority, make sure equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' needs, such as different design, different brand parts, different colors, more function and etc
3. Engineers go to clients' factory to install machines in time.
4. More spare parts given to clients for free to ensure the factory working without suddenly stop
We are EPS machinery supplier in Hangzhou China, the manufacturing base of EPS machine, with nearly 20 years' experience in EPS industry. We are specialized in EPS machinery design and turn-key project, and have helped many clients building new EPS factories around the world, such as Spain, England, Iran, Turkey, Libya, Tajikistan, Uzbekistan, Bangladesh and etc.
Persisting to the principle of "supplying good quality and long well services for our business", we'll strive for high efficiency, passion, integrity to provide customers with superior products and services. Our professional technicians and responsible sales always give you fast response for your questions and complaints 7*24h.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to building long well and friendly business relationships with clients from all over the world.
Q: Does your machine have CE certification?
A: Yes,our machine with CE certification.
Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
Q: Installation and commissioning?
A: We will send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
