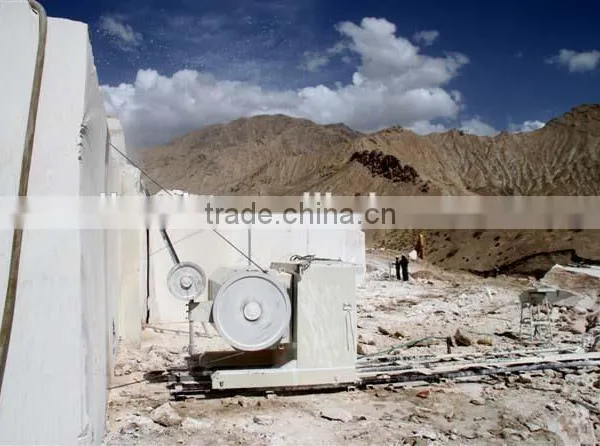

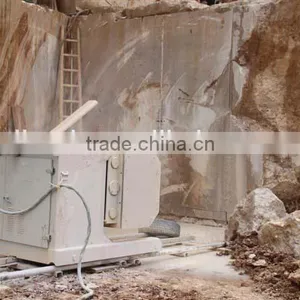

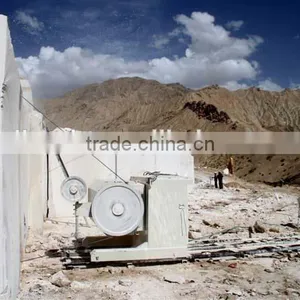

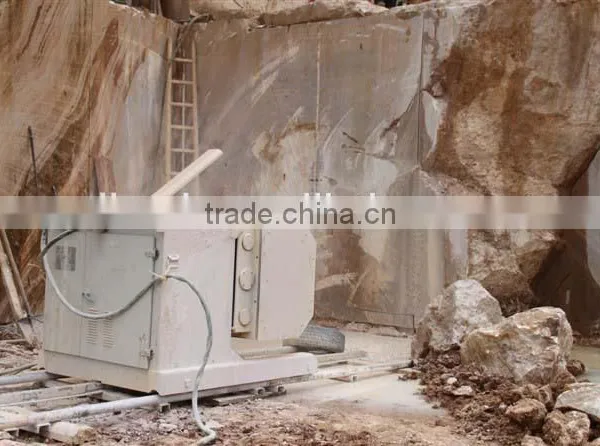

Quarry Diamond Wire Saw Machine, Both for Granite and Marble Quarry work.
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
Different models of diamond wire saw machine offered
TJTB-90 Diamond Wire Saw Machine | ||
Model |
|
TJTB-90 |
Main Motor Power |
kW |
90 |
Total Power |
kW |
95 |
Feeding Power |
kW |
2.2 |
Rotary Cutting Head Motor Power |
kW |
0.75 |
Cutting Head Lateral Moving Motor Power |
kW |
0.75 |
Cutting Head Rotation |
° |
360 |
Cutting Head Adjustment Distance |
mm |
450 |
Lateral Movement Of Cutting Head |
mm |
1800 |
Main Guide Wheel Diameter(Granite) |
mm |
800 |
Main Guide Wheel Diameter(Marble) |
mm |
900 |
Rail |
mm |
2000*3 |
Rotation Speed |
r/min |
1400 |
Linear Speed |
m/s |
0-40 |
Wire tension |
|
Auto-controlled |
Allowable Working Temperature |
° |
-15°C to +40° |
Power Voltage |
V |
380±10% |
Power Frequency |
HZ |
50 |
Overall Dimension(L*W*H) |
mm |
1900*1600*1500 |
Net Weight |
kg |
2800 |
| 75KW Diamond Wire Saw Specifications | |||||||
| Total Power | 78.5KW | ||||||
| Driving Power | 75kw=100HP | ||||||
| Feeding Power | 2.2kw | ||||||
| Rotary cutting head motor power | 1.1kw | ||||||
| Cutting head lateral moving motor power | 0.75kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 740/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=2000, W=1700, H=1400 | ||||||
| Net Weight | 3.0T | ||||||
| 55KW Diamond Wire Saw Specifications | |||||||
| Total Power | 58kw | ||||||
| Driving Power | 55kw=74HP | ||||||
| Feeding Power | 1.5kw | ||||||
| Rotary cutting head motor power | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.55kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 960/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=1800, W=1600, H=1400 | ||||||
| Net Weight | 2.8T | ||||||
| 45KW Diamond Wire Saw Specifications | |||||||
| Total Power | 48kw | ||||||
| Driving Power | 45kw=65HP | ||||||
| Feeding Power | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.55kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 960/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=1800, W=1500, H=1400 | ||||||
| Net Weight | 2.5 | ||||||
| 37KW Diamond Wire Saw Specifications | |||||||
| Total Power | 40kw | ||||||
| Driving Power | 37kw=50HP | ||||||
| Feeding Power | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.55kw | ||||||
| Cutting head rotation | 360° | ||||||
| Cutting head adjustment distance | 400mm | ||||||
| Lateral movement of cutting head | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm | ||||||
| Rail | 2m*3 | ||||||
| Rotation speed | 960/min | ||||||
| Linear speed | 0-40m/s | ||||||
| Wire tension | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | ||||||
| size | L=1700, W=1500, H=1400 | ||||||
| Net Weight | 2.0T | ||||||
Main guide wheel:

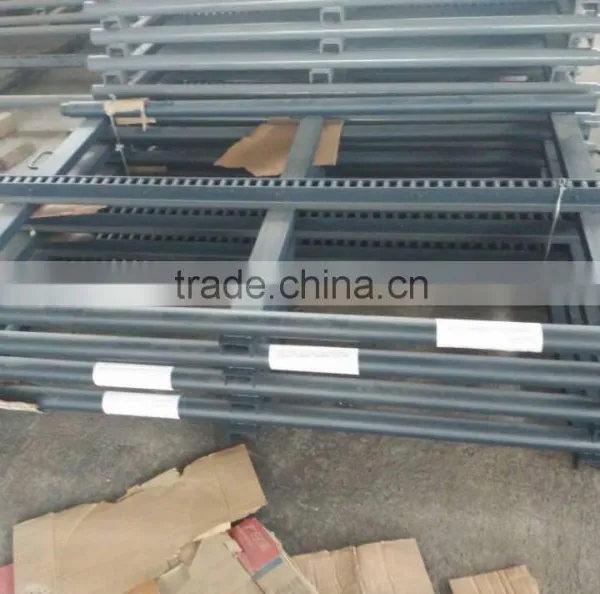

Rails
Packaging:
The diamond wire is offered here as well:
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
