With CE, TJSN Double Blade Stone Cutting Machine for Mining Work
1.This machine is a modification of original double-blade mining machine. The rising and falling of main spindle is controlled by the hydraulic pressure advantages are small gap,a little wear,no vibration,stable structure and high cutting precision;the service life of cutter head is increased.
2.The cylindrical guide rall is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.
Technical Data:
Name |
Unit |
TJSN-1360/1900 |
TJSN-1500/2000 |
Diameter of blade |
mm |
2200-3600 |
2200-3600 |
Scope of cutting depth |
mm |
850-1550 |
850-1550 |
Scope of cutting width |
mm |
1360-1900 |
1500-2000 |
Power of main-drive |
kw |
45*2 |
45*2 |
Water consumption |
m3/h |
5 |
5 |
Total power |
kw |
97.7 |
97.7 |
Approximate weight |
kg |
6500-8000 |
6500-8000 |
Overall dimension(L*W*H) |
mm |
3600*1500*2700/3000 |
3600*1700*2700/3000 |
Name |
Unit |
TJSN-1950/2450 |
TJSN-2600/3100 |
Diameter of blade |
mm |
2200-4800*2 |
2200-4800*2 |
Scope of cutting depth |
mm |
850-2200 |
850-2200 |
Scope of cutting width |
mm |
1950-2450 |
2600-3100 |
Power of main-drive |
kw |
45/55*2 (blades size upto 4m, should get 55KW motor) |
45/55*2 (blades size upto 4m, should get 55KW motor) |
Water consumption |
m3/h |
5 |
5 |
Total power |
kw |
98.5/118.5 |
98.5/118.5 |
Approximate weight |
kg |
9500-10500 |
10500-12500 |
Overall dimension(L*W*H) |
mm |
4200/5100*2100*3100/3650 |
4200/5100*2700*3100/3650 |
Machine advantage:
1. After cutting, the quarry surface will be more tidy.
2. Less stone waste.
3. Total lower investment for the whole project.
4. Faster work, higher efficiency.
5. Easier operation.
Machine working way:
First set up the rails stable on the ground, then put the machine working on it, after cutting the four sides of block, you can use the diamond wire saw machine for cutting the bottom of block, then get the block you need.
Widely used in local Chinese quarry work, and hot selling to Russia, Saudi Arabia and other countries, hope can be well used in your mining work as well.

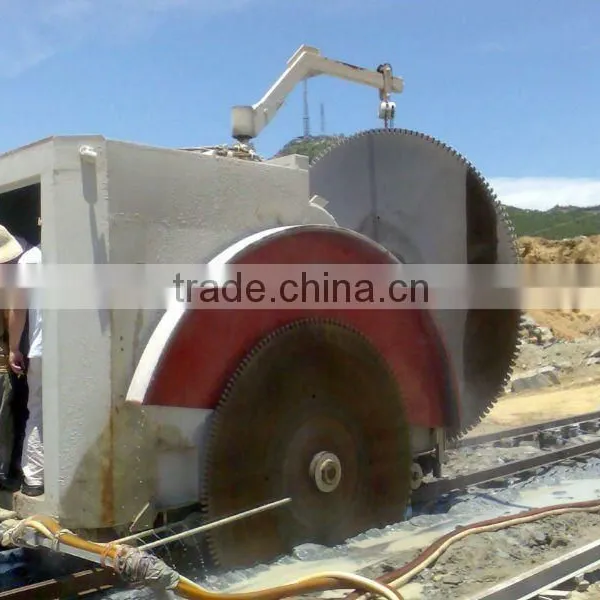

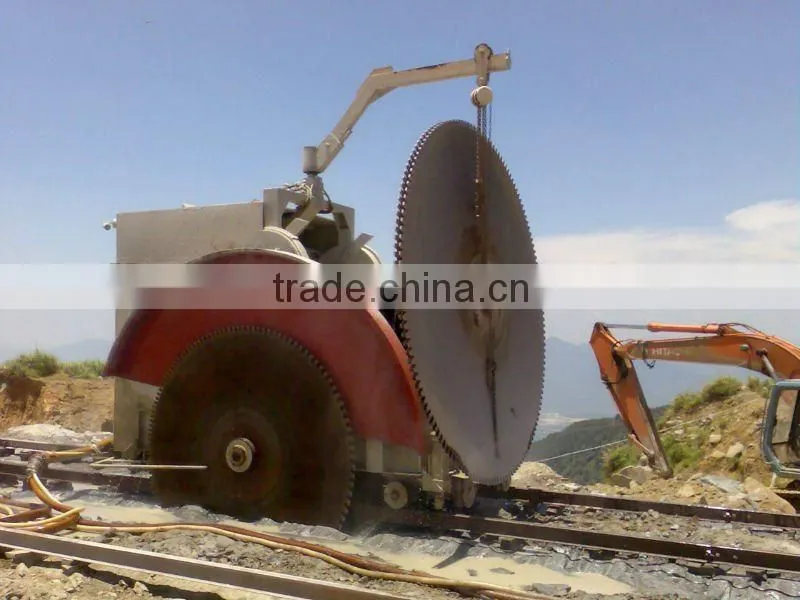

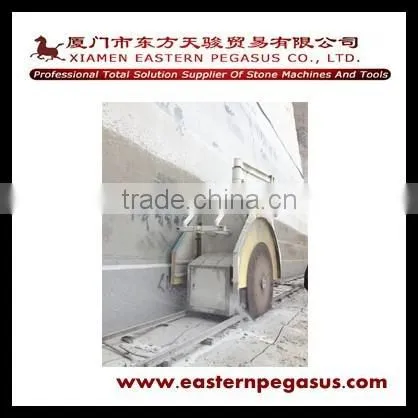

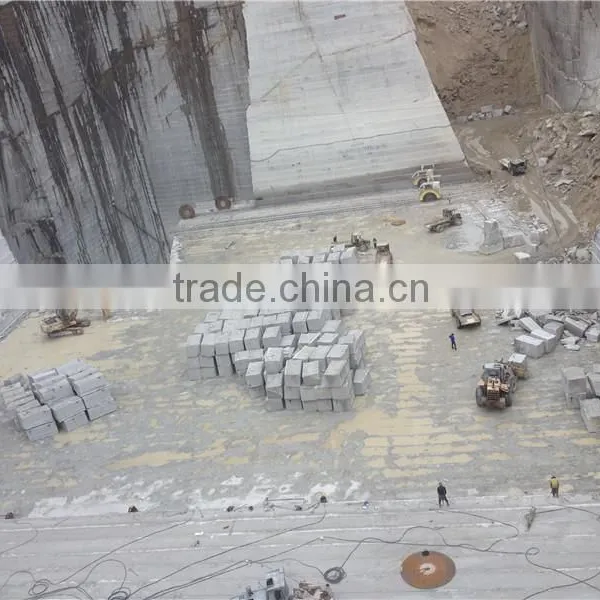

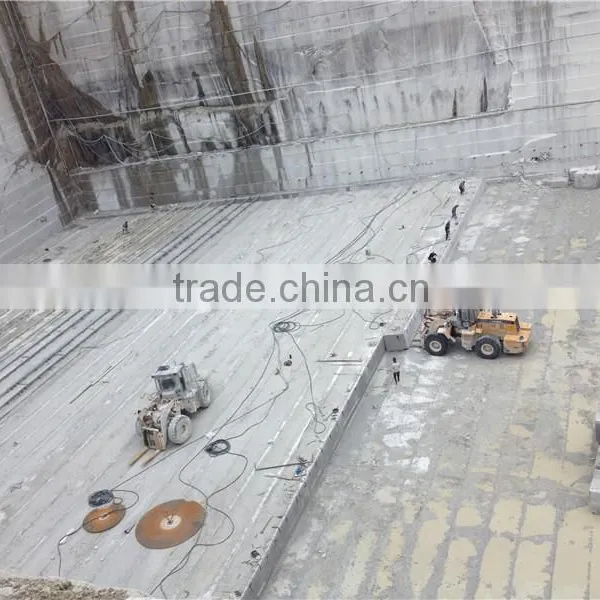

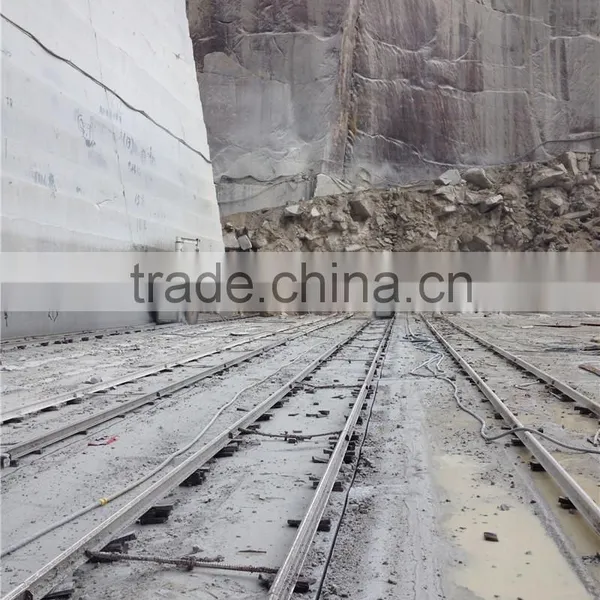

Machine quarry working photos:
Machine packaging photos:Serve the relatived blades as well.
