Stone cutting machine, tile cutting machine

Specifications

Stone cutting machine
Imported from China,good quality
Worktable upturning angle: 0-85degree
Edge cutting machine
CE

TJQH Automatic tile cutting machine,stone cutter





Description:

• Generally this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. Specialist for stone edge cutting work.
• The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine.
• It is particularly applicable for cutting valuable and large stone plates

• Technical data
  Name			Unit	TJQH-600			TJQH-400
  Blade diameter			mm	Φ350-Φ600			Φ350-Φ400
  Worktable dize (Max. cutting size)			mm	3200×2000			3200×2000
  Blade up/down stroke			mm	220			120
  Main motor			kw	15			11
  Feeding motor			kw	1.5			1.5
  Slicing motor			kw	1.1			1.1
  Motorized blade tilt angle				/			/
  Worktable rotation angle(by hydraulic)				90° or 360°			90° or 360°
  Worktable upturning angle				0°--- 85°			0°--- 85°
  Water consumption			m3/min	4			4
  Voltage/Frequency			V/HZ	380V/50HZ			380V/50HZ
  Dimensions(L×W×H)			mm	6000*4700*2800			5800*4700*2800
  Weight			kg	6000			5500



• Please check this website to see how it works:    /v_show/id_XMjA4MjI1NzQw.html

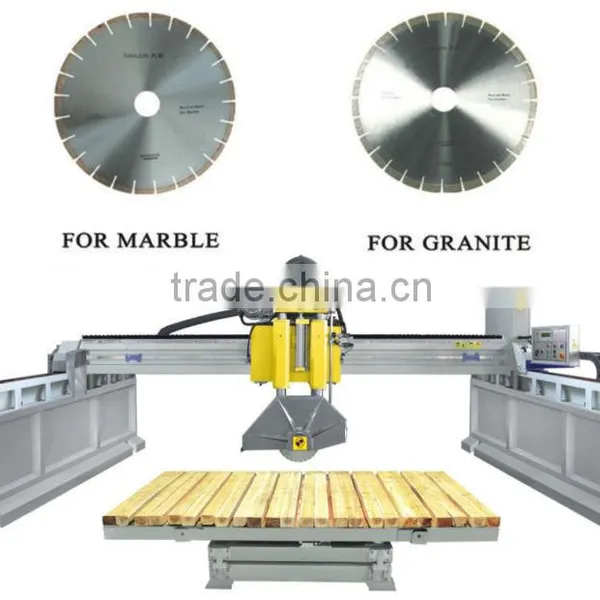

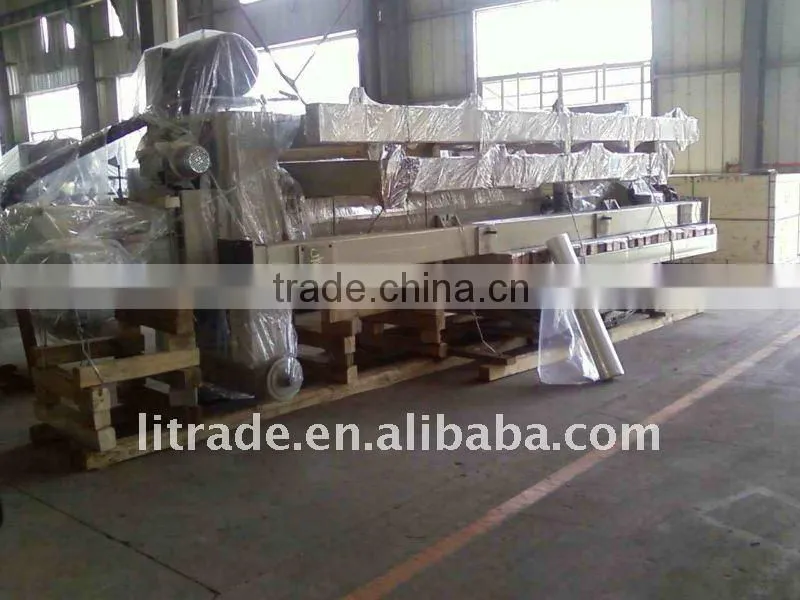

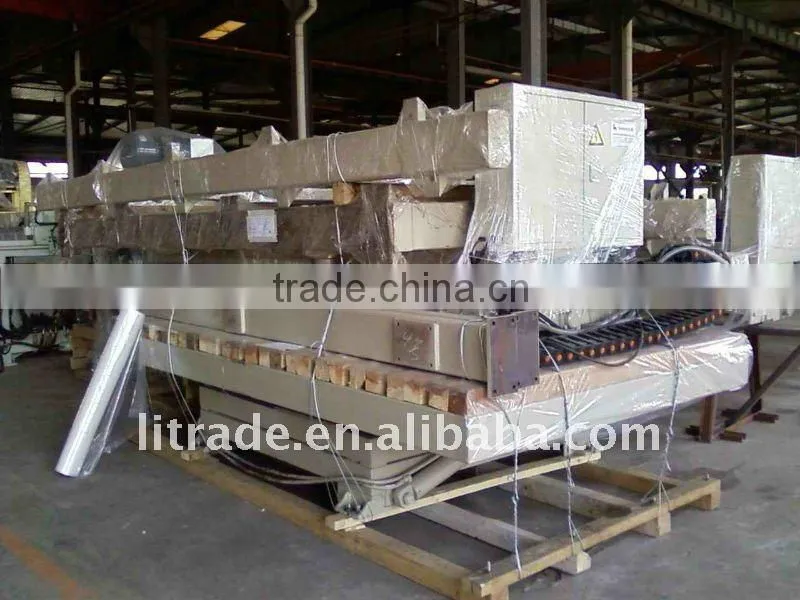

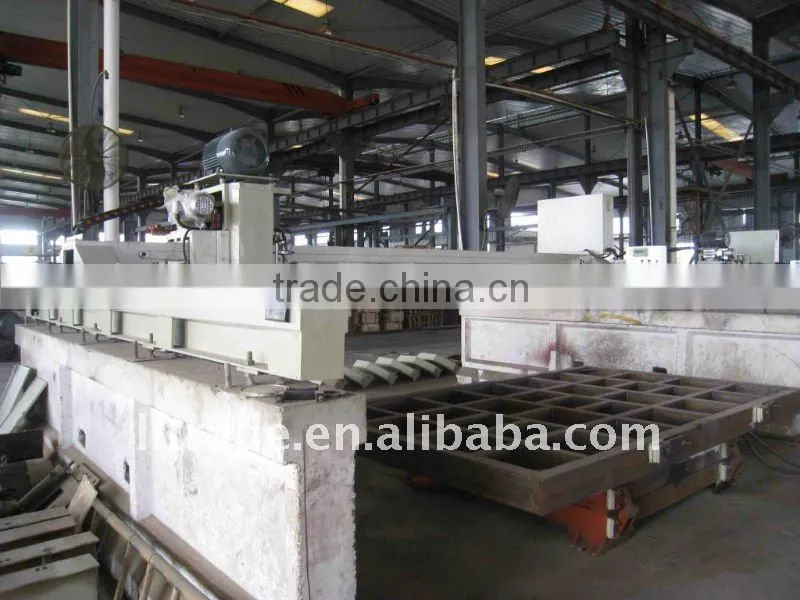

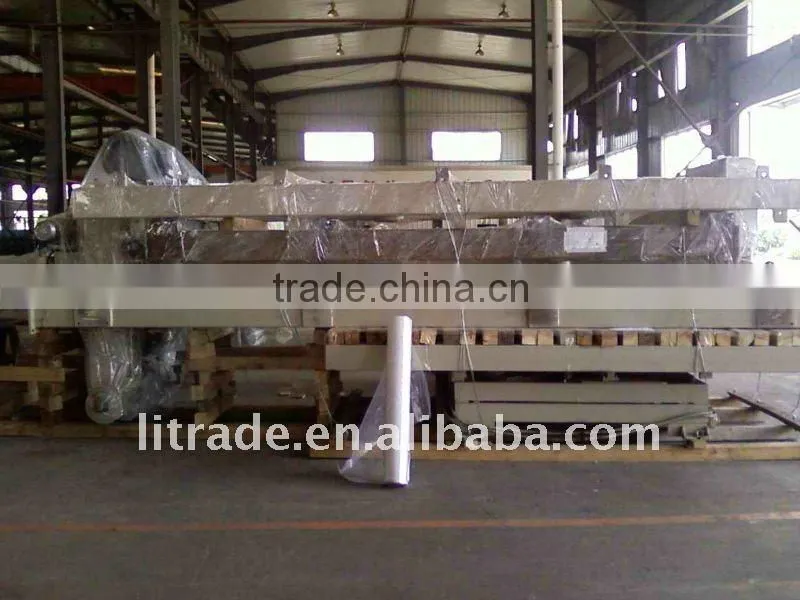

Stone edge cutting machine photos:

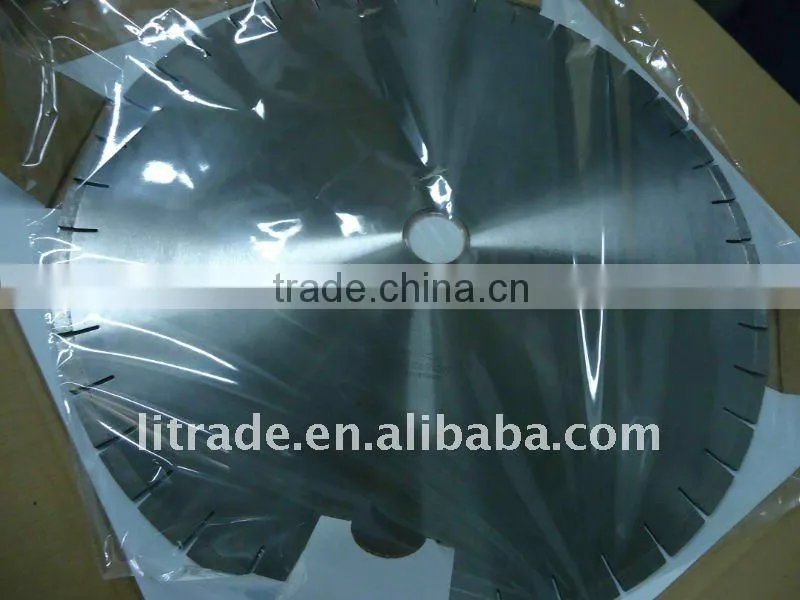

With diamond disc, blade.
