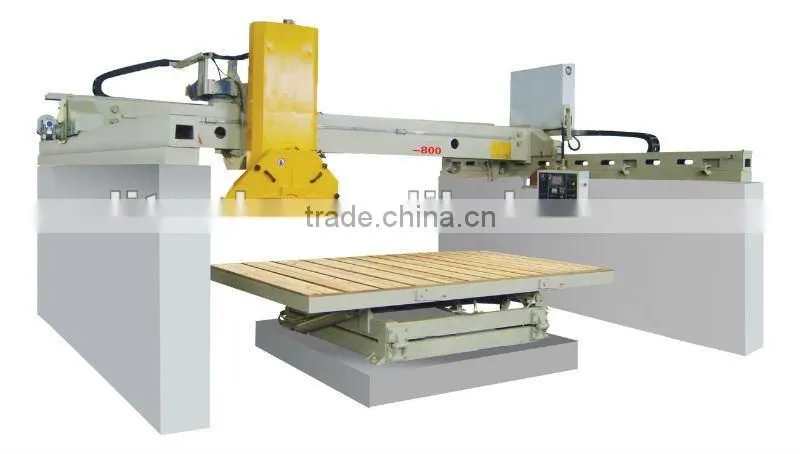

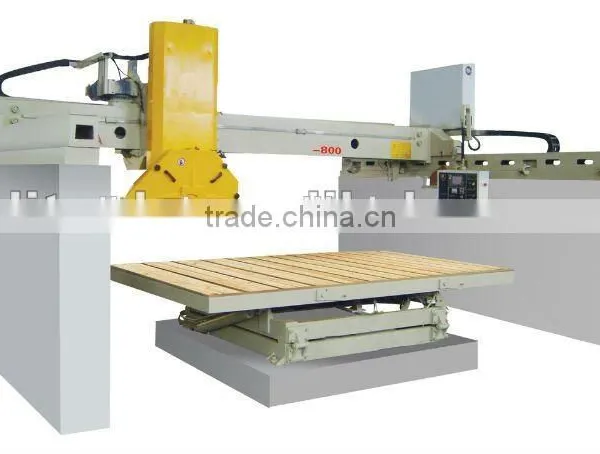

Bridge Type Cutting Stone Machine

Bridge Type Cutting Stone Machine thumbnail-1
Bridge Type Cutting Stone Machine thumbnail-2
Bridge Type Cutting Stone Machine photo-1
Bridge Type Cutting Stone Machine photo-2
US$ 23,500 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, Granite and marble
Contact Supplier Request Quote Chat Now
Xiamen Eastern Pegasus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, Granite and marble
Place of Origin Fujian, China
Brand Name Tianjun
Model Number TJQH-800
Voltage 380V
Power(W) 18.5KW
Dimension(L*W*H) 6300*4700*2800MM
Weight 6800KG
After-sales Service Provided Engineers available to service machinery overseas

45 degree tile cutting machines,bridge type edge cutting machine



Description:

1.Bridge movement  by means of precise linear guide ways

2.Z axis movement by lead screw

3.Magnetic rule for slicing measure

4.Stable structure



 Technical data
Name Unit TJQH-800
Blade diameter mm Φ800
Worktable dize (Max. cutting size) mm 3200×2000
Blade up/down stroke mm 400
Main motor kw 18.5
Feeding motor kw 2.2
Slicing motor kw 1.1
Motorized blade tilt angle   0°--- 45°
Worktable rotation angle(by hydraulic)   90° or 360°
Worktable upturning angle   0°--- 85°
Voltage/Frequency V/HZ 380V/50HZ
Dimensions(L×W×H) mm 6300×4700×2800
Weight kg 6800

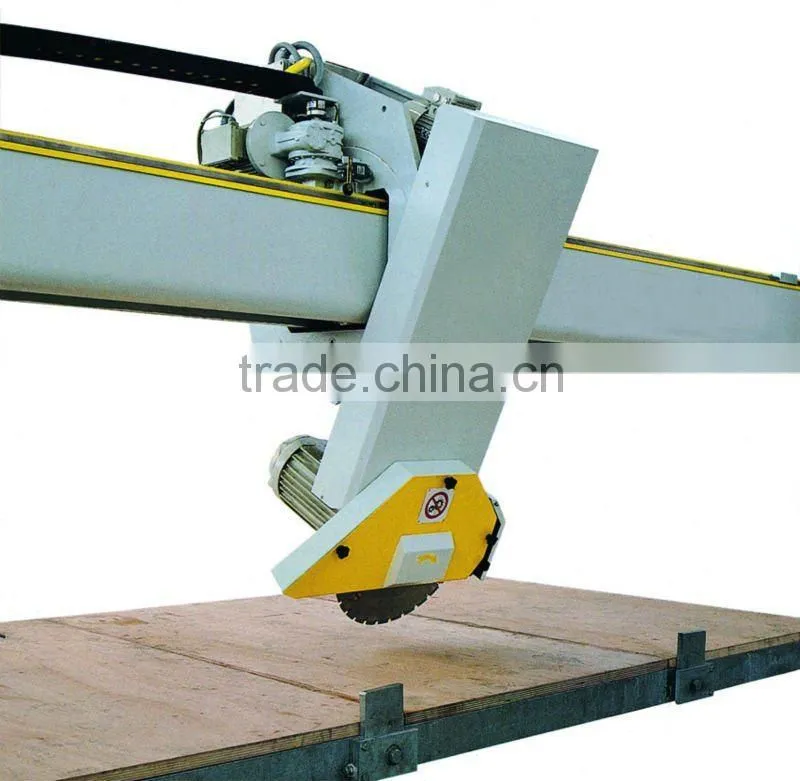

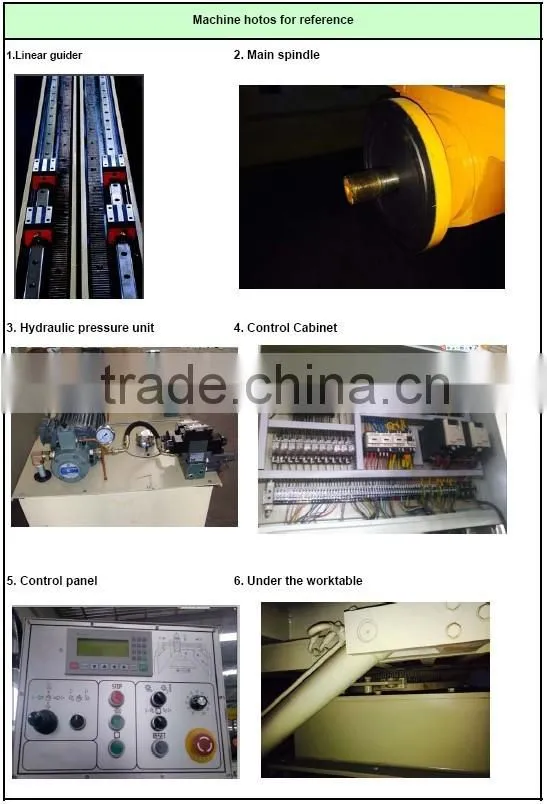

Bridge type cutting stone machine

Bridge type cutting stone machine



Bridge type cutting stone machine



Bridge type cutting stone machine



Bridge type cutting stone machine



Bridge type cutting stone machine



Bridge type cutting stone machine



Bridge type cutting stone machine





Bridge type cutting stone machine
