LCMQ-220B Gantry Type Stone Cutting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Tian Jun
Model Number:
LCMQ-250
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJXD-2200 Block Line Wire Saw Machine(separate),machine for Cutting Marble SlabUS$ 40,000 - 50,000MOQ: 1 Set -
Block,portal Two-Way Stone CutterNegotiableMOQ: 1 Set
-
Stone Cutting Machine, Block Cutting Machine, Multi-blade Cutting MachineUS$ 15,000 - 20,000MOQ: 1 Unit
-
LCZD-160 (hydraulic Up/down) High Efficiency Multi-blade Stone Cutting MachineUS$ 17,500 - 18,500MOQ: 1 Set
-
TJZJ Portal Efficient Multi Blade Stone Cutting MachineUS$ 12,000 - 14,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Tian Jun
Model Number
LCMQ-250
Specifications
Stone Cutting Machine1.High automation level
2.With excellent machining ability
3.Stable performance
4.High efficiency

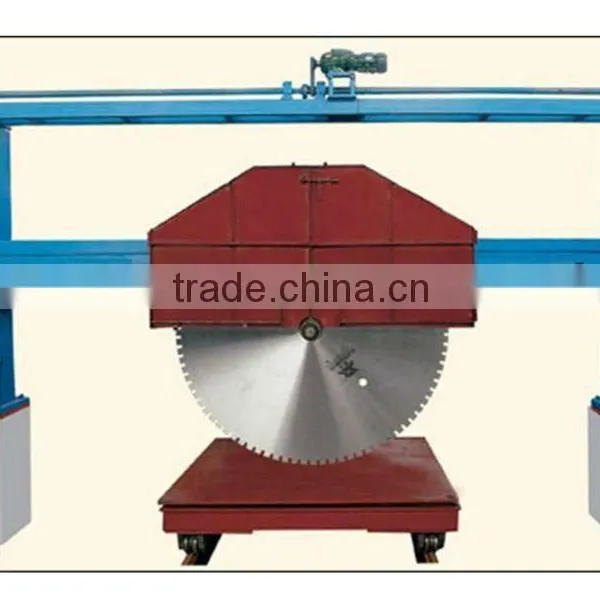

LCMQ-220B Gantry Type Stone Cutting Machine
LCMQ-220B Big Blank Material Leveling Machine is an improved set of equipment based on the gantry type stone cutting machine, and is provided with a heavy-type trolley to conduct leveling on blank materials. Its size can be as big as 3500mm×1800mm×2000mm.
Technical data:
| Name | Unit | LCMQ-220B | |||
| Blade diameter | mm | Φ1600, Φ1800,Φ2000,Φ2200 (Choose one type) | |||
| Blade vertical stroke | mm | 2000 | |||
| Max cutting size | mm | 3000×1800 ×2000 | |||
| Water consumption | m3/min | 8 | |||
| Main motor power | kw | 30 | |||
| Dimensions(L×W×H) | mm | 5000×5800x5800 | |||
| Voltage/Frequency | V/HZ | 380V/50HZ | |||
| Weight | kg | ≈10500 | |||
