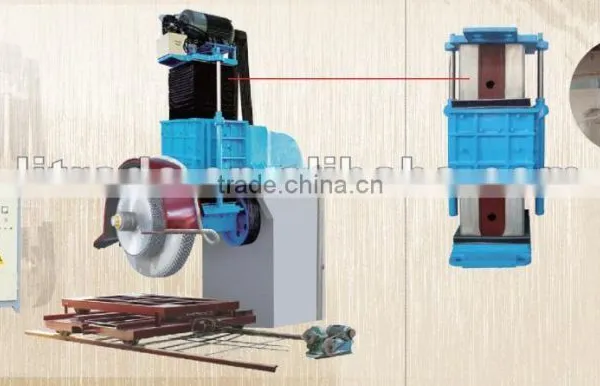

LCZD-160 (hydraulic up/down) high efficiency multi-blade stone cutting machine

Specifications

Multi-blade stone cutting machine
1.Higer efficiency,
2.Longer life-span,
3.And lower maintenance rate.
.

LCZD-160 (hydraulic up/down) high efficiency multi-blade stone cutting machine



It adopts large-area contacting rails and double hydraulic cylinder up-and-down movement to improve the moving up speed. Overall protection of this machine has greatly enhanced stability of the machine to make sure the higer efficiency, longer life-span and lower maintenance rate.



Technical data
Name		Unit	LCZD-160
Number of Blades		pc	12(6-Φ1600, 6-Φ940)     16(8-Φ1600, 8-Φ940)   20(10-Φ1600, 10-Φ940)
Blade vertical stroke		mm	1000
Max. cutting size		mm	3500*1300*650                                                    3500*1300*850
Main motor power		kw	65/75/90
Water consumption		m3/h	16
Dimensions(L×W×H)		mm	8500*4000*5500
Weight		kg	≈9000
Voltage/Frequency		V/HZ	380V/50HZ
Cutting efficiency: 8 large and 8 small combination saw 24 hours cutting 300m2



Stone cutting machine working in mulit-blade cutting







Serve the stone cutting blades and segments as well, different sizes offered.
