XJ450Workover Rig1.Convenient for installation, operation and maintenance
2.Double drum drawworks
3.Rotary driving system

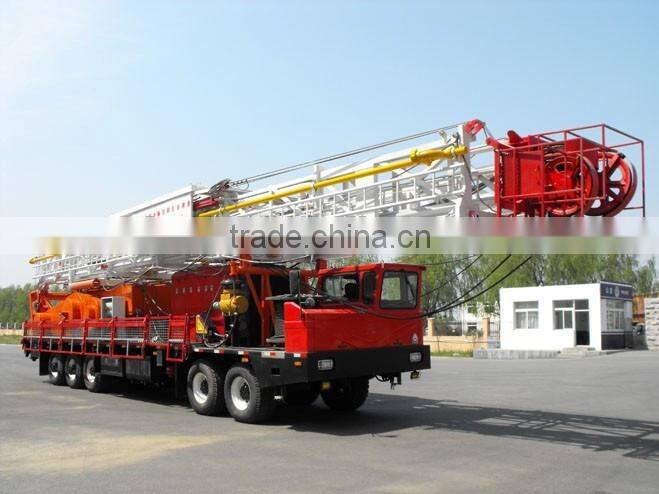

XJ450 self-propelled Workover Rig
Product Explanation:
1.XJ450 (80t) workover rig is mainly used for medium & shallow well workover , oil testing, fishing and pump check operations.
2.It is equipped with a lifting system and a rotary operating system. It is widely applied in many fields.
3.It can be used for workover, lateral drilling and water well drilling operation if equipped with a rotary table and relevant parts.
4.Featuring reasonable layout, compact structure, easy transportation, convenient operation and maintenance.
Product Features:
1. A hydromatic brake is often used, and Eaton water-cooled brake or air tong brake is also available.
2.5 forward 5 reverse speeds rotary drives equipped with torque release device.
3. Rod hanger is available.
Main Parameters of workover rig
MODEL |
XJ450(80t) |
Nominal service depth (ft)(27/8″EUE tubing) |
18000 |
Nominal workover depth (ft)(27/8″DP) |
15000 |
Drilling depth (ft)(41/2″DP) |
5000 |
Max. hook load (lbf) |
250000 |
Rated hook load (lbf) |
180000 |
Engine model |
C15 |
Engine power (hp) |
540 |
Hydraulic transmission box model |
S5610HR |
Transmission type |
Hydraulic + mechanical
|
Effective height of mast (ft) |
102,108 33 |
Traveling system |
5×4 |
Drilling line diameter (in) |
1 1” |
Hook speed (ft/s) |
0.66~3.93 |
Chassis model/Drive ways |
XD50/10×8 |
Approaching/departure angle |
26°/17° |
Min. ground clearance (in) |
12 |
Max. gradient ability (%) |
26% |
Min. turning diameter (ft) |
108 |
Rotary table model |
ZP135 |
Traveling block model |
YG110 |
Swivel model |
SL110 |
Overall moving dimension (ft) |
61×10×14 |
Main unit mass (lb) |
110000 |
