Help CenterXJ550 Truck Mounted Workover Rig(100T)
Related Products
Specifications
XJ550Workover Rig1.Convenient for installation, operation and maintenance
2.Reasonable layout
3.Rod hanger is available

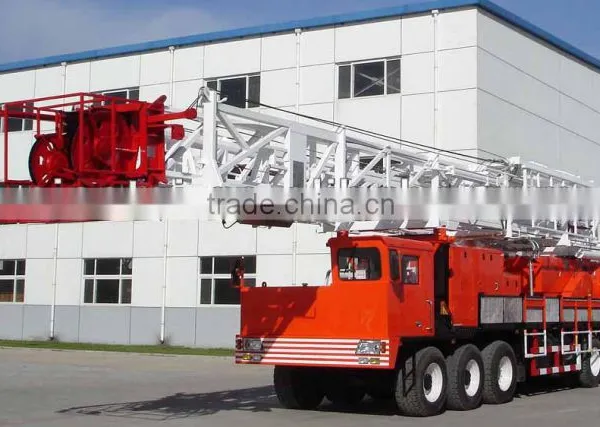

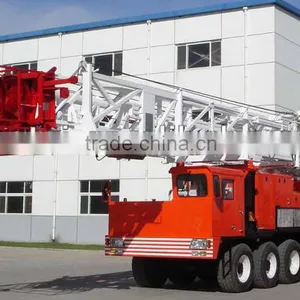

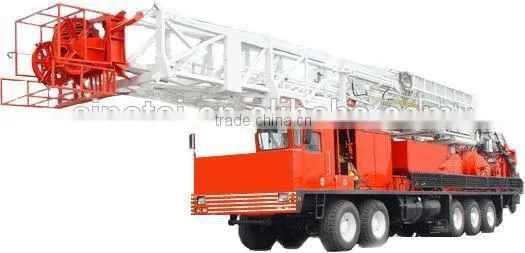

XJ550 truck mounted Workover Rig (100T)
Product Explanation:
XJ550 workover rig, with 1350kN/30348 of max. static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations. It is equipped with a lifting system and a rotary operating system. It is widely applied in many fields. It can be used for workover and lateral drilling operations if equipped with a rotary table and relevant parts. Reasonable layout, compact structure, easy transportation, convenient operation and maintenance.
Product Features:
1. 10×8 self-propelled chassis.
2. A hydromatic brake is often used, and Eaton water-cooled disc brake or air tong brake is also available.
3. 5 forward 5 reverse speeds rotary drives equipped with torque release device.
4. Rod hanger is available.
Main Parameters Of Workover Rig
MODEL |
XJ550(100t) |
Nominal service depth (ft)(27/8″EUE tubing) |
23000 |
Nominal workover depth (ft)(27/8″DP) |
19000 |
Drilling depth (ft)(41/2″DP) |
6600 |
Max. hook load (lbf) |
300000 |
Rated hook load (lbf) |
220000 |
Engine model |
C15 |
Engine power (hp) |
540 |
Hydraulic transmission box model |
S5610HR |
Transmission type |
Hydraulic + |
Effective height of mast (ft) |
35102,108 |
Traveling system |
5×4 |
Drilling line diameter (in) |
1” |
Hook speed (ft/s) |
0.66~4.6 |
Chassis model/Drive ways |
XD50/10×8 |
Approaching/departure angle |
26°/18° |
Min. ground clearance (in) |
12 |
Max. gradient ability (%) |
26% |
Min. turning diameter (ft) |
108 |
Rotary table model |
ZP135 |
Traveling block model |
YG135 |
Swivel model |
SL135 |
Overall moving dimension (ft) |
61×10×14 |
Main unit mass (lb) |
120000 |
