Home > Manufacturing & Processing Machinery > Petroleum Equipment & Machinery > Oilfield Shale Shaker > API GLW355*1250N Drilling Mud Separator

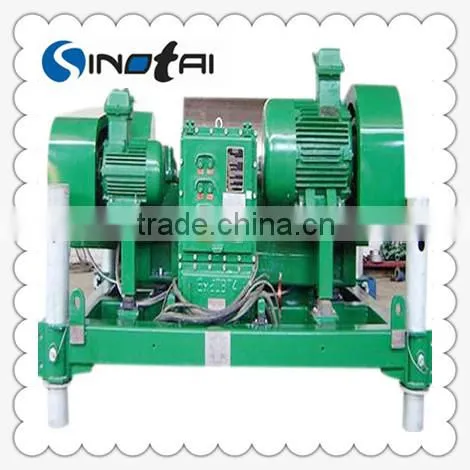

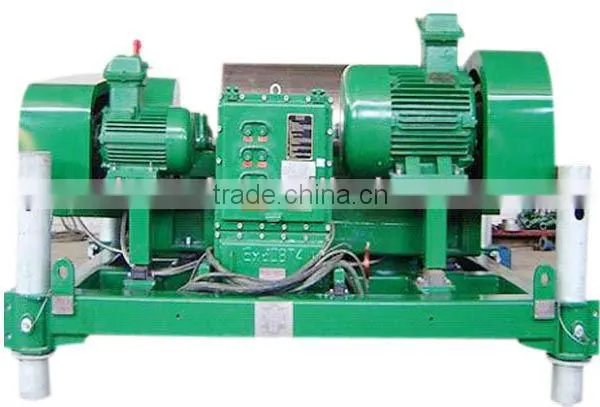

API GLW355*1250N Drilling Mud Separator

Name: API GLW355*1250N Drilling Mud Separator
Brand: Sinotai
SKU: 119557429
Availability: InStock

API GLW355*1250N Drilling Mud Separator thumbnail-1

API GLW355*1250N Drilling Mud Separator photo-1

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Centrifuge

Production Capacity:

High

Contact Supplier Request Quote Chat Now

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Centrifuge

Production Capacity High

Place of Origin China

Brand Name Sinotai

Model Number LWF450*842N

Voltage 380V

Dimension(L*W*H) 2360*1850*1750mm

Weight 2550kg

Certification api

Warranty 12 months

Specifications

1.LWF450*1000N drilling mud separator;2 Main Drive :22kw-4p; 3 two motors;4 API

Centrifuge

Main feature:

LW centrifuge is driven by two motors.

The main motor drives the drum and the outer casing of differential through belts while the auxiliary motor, after the differential shifting speed, drives the spiral propeller.

This will make the drum and the spiral propeller rotate inthe same direction with a certain differential speed.

Technical Parameters:

Model	LWF450×842N	LWF450×1000N	GLW355×1250N	GLW355x1250
Bowl Diameter	450mm	450mm	355mm	355mm
Rotary Speed	1800r/min	1800r/min	3200r/min	0~3200r/min
G-Force	815	815	2035	2035
Separation point	5~7μm	5~7μm	2~5μm	2~5μm
Main Drive	22kw-4p	30kw-4p	30kw-4p	37kw-4p
Back Drive	5.5kw-4p	7.5kw-4p	7.5kw-4p	7.5kw-4p
Max capacity	≤40m3/h	≤60m3/h	≤40m3/h	≤40m3/h
Weight	2550kg	2700kg	2950kg	3000kg
Dimension	2360x1850x1750mm	2600x1860x1750mm	2900x1850x1750mm	2900x1950x1750mm
