Home > Manufacturing & Processing Machinery > Drilling Rig > Oilfield Drilling Rig > 5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200)

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200)

Name: 5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200)
Brand: SINOTAI
SKU: 119538287

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200) thumbnail-1

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200) thumbnail-2

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200) thumbnail-3

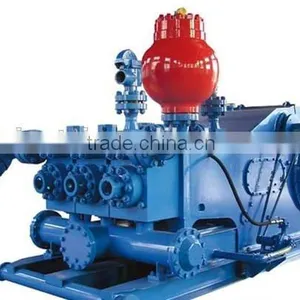

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200) photo-1

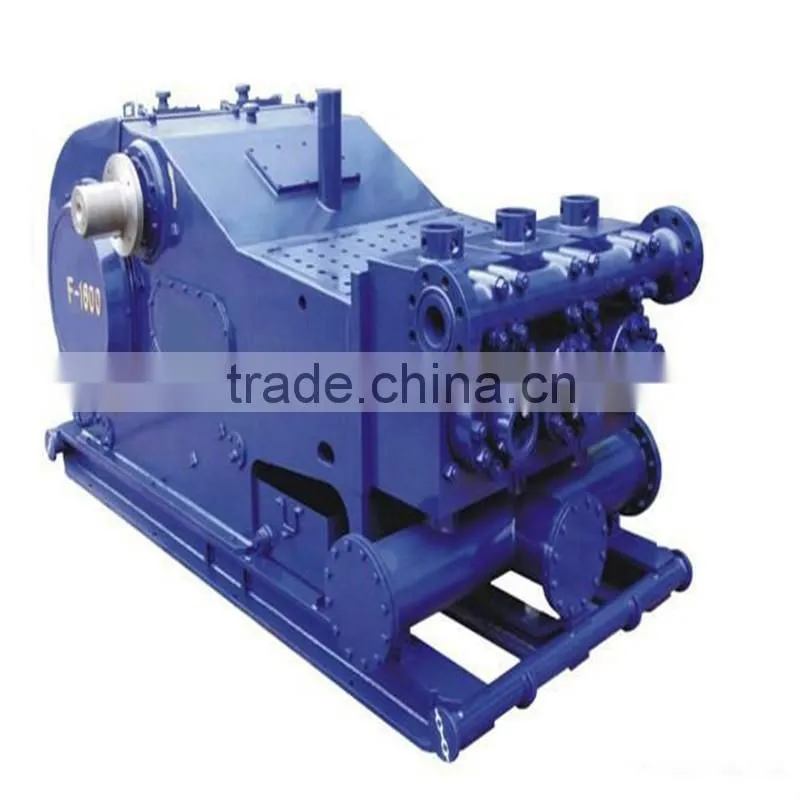

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200) photo-2

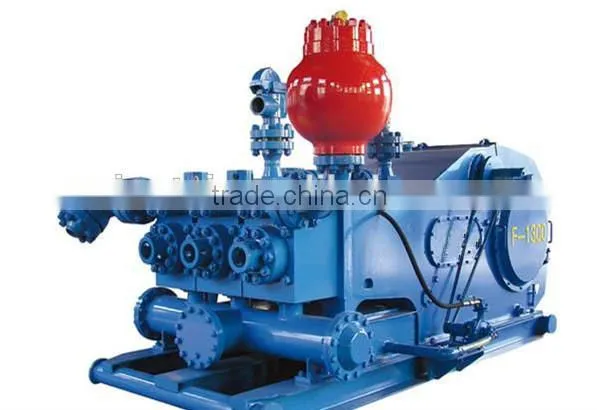

5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200) photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

SINOTAI

Contact Supplier Request Quote Chat Now

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name SINOTAI

Model Number F-500/800/1000/1300/1600/2200

Certification API

Warranty 1 year

After-sales Service Provided Overseas service center available

Product Description

Main features :

1. F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying perfor-mance effectively and extended the lifetime of expendable parts in the fluid end greatly.

2. The power end uses combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and promote the service life of power end.

3. This series mud pump are strictly manufactured according to API Spec 7k “the Equipment Specification of Well Drilling and Repairing”, and are tested accordingly when leave factory.

Technical Parameters

The main technical performance and specification :

Model	F-500	F-800	F-1000	F-1300	F-1600	F-2200
Type	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting
Rated Power	373kw/500HP	596kw/800HP	735kw/1000HP	969kw/1300HP	1193kw/1600HP	1618kw/2200HP
Rated Speed	165SPM	150SPM	140SPM	120SPM	120SPM	105 SPM
Stroke(mm/inch)	190/7 1/2"	228.6/9"	254/10"	305/12"	305/12"	356/14"
Max.Liner Dia.	170/6 3/4"	170/6 3/4"	170/6 3/4"	180/7"	180/7"	230/9"
Gear Type	Herringbone	Herringbone	Herringbone	Herringbone	Herringbone	Herringbone
Valve Pot	API-5#	API-6#	API-6#	API-7#	API-7#	API-8#
Gear Ratio	4.286:1	4.185:1	4.207:1	4.206:1	4.206:1	3.512:1
Suction Inlet	203/8"	254/10"	305/12"	305/12"	305/12"	305/12"
Discharge Inlet	4"Flange 5000 psi	5 1/8"Flange 5000 psi	5 1/8"Flange 5000 psi	5 1/8"Flange 5000 psi	5 1/8"Flange 5000 psi	5 1/8"Flange 5000 psi
Lubrication	Forced & Splash	Forced & Splash	Forced & Splash	Forced & Splash	Forced & Splash	Forced & Splash
Max. Pressure	27.2Mpa	34.5Mpa	34.5Mpa	34.5Mpa	34.5Mpa	35Mpa
Max. Pressure	3945 psi	5000 psi	5000 psi	5000 psi	5080 psi	5000 psi
Overall Size(in)	14410686	1567966	1638970	17412178	181129106	236"136"108"
Weight(kg)	9770	14500	18790	24572	24791	38800
Note: 1. Ratings are based on 100% volumetric efficiency and 90% mechanical efficiency. 2. Recommended strokes and input powers are under continuous operations.

Detailed Images

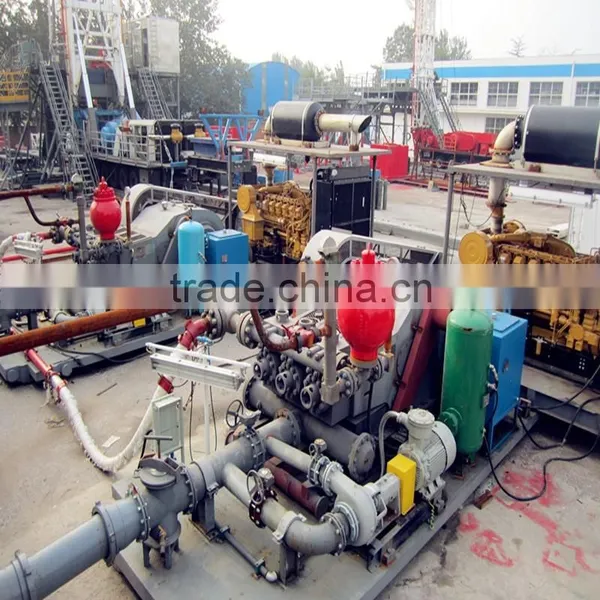

Successful Cases

Recommend Products

Packaging & Shipping

Packaging: standard export package or as consumer’s request

Shipping: air transportation, water way transportation, railway transportation, road transportation

Our Services

1. Reply with 24 hours

2. Specialist online service

3.Wesupply drilling equipment,drilling tools,wellhead tools,down hole tools; Production equipments, Progressing Cavity Pumps, Electrical submersible pump; OCTG, etc.We can also supply the products and service according the special requirement of the customers.
