Specifications

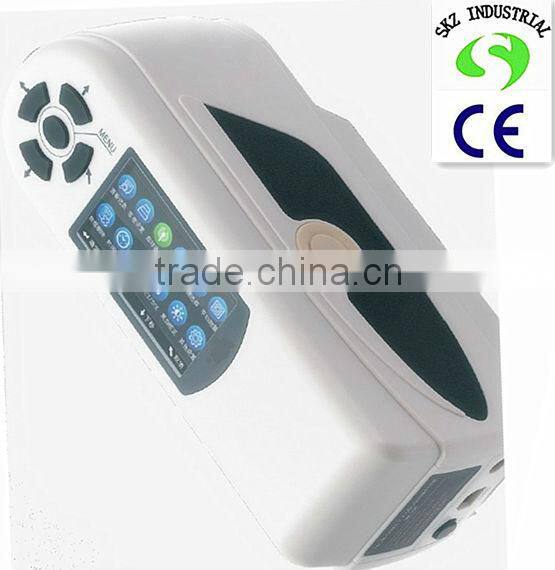

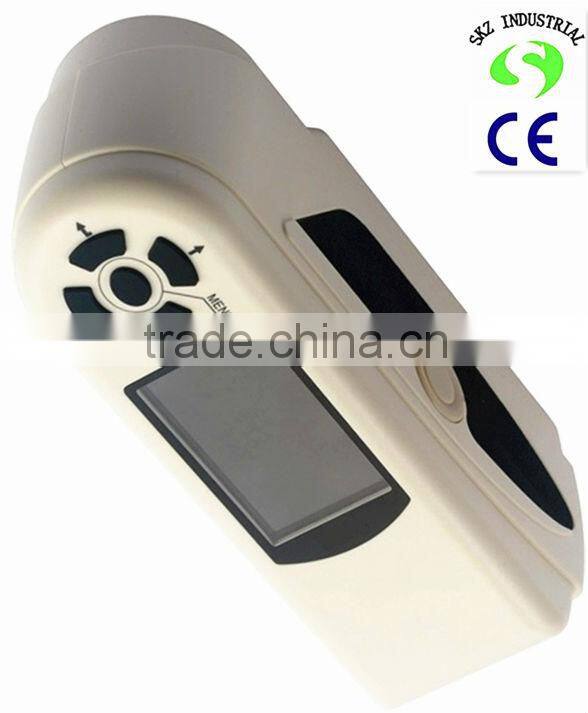

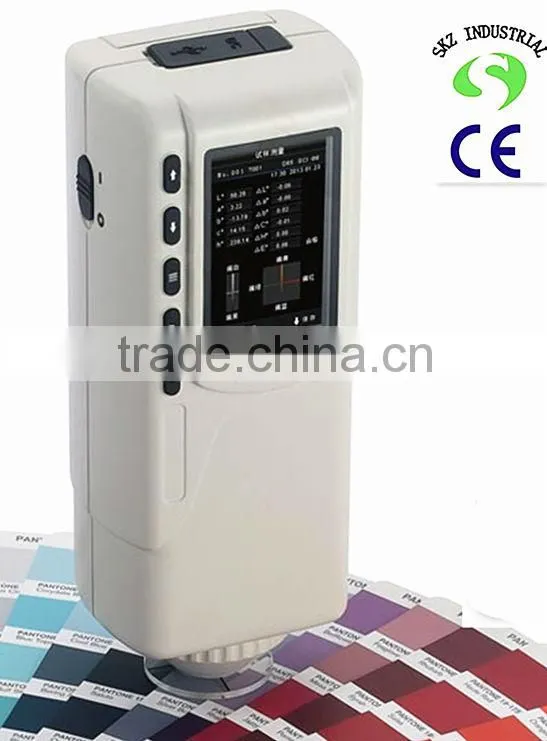

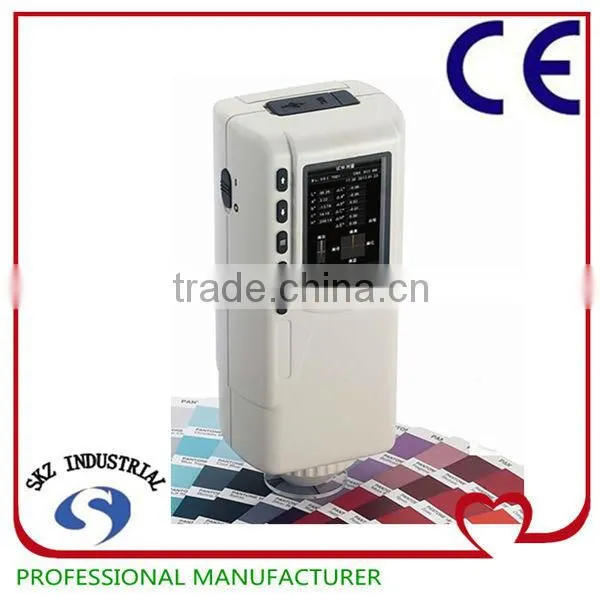

Portable to measure color differences, equipped with quality management software which can connect with computer.Protable Color Meter yellowness meter
-portable colorimeters widely used for plastic, electronic, paint, ink, print, paper, food, medical, cosmetic industries, Can be equipped with quality management software connect with computer.
Function/Model | SKZ102C-1 | SKZ102C-2 | SKZ102C-3 |
Illuminating/viewing geometry | 8/d | 8/d | 8/d |
Measuring Aperture | 4mm | 8mm | 8mm/4mm |
Detector | Silicon photoelectric diode | Silicon photoelectric diode | Silicon photoelectric diode |
Measuring light source | LED blue light excitation | LED blue light excitation | LED blue light excitation |
Light source | D65 | D65 | D 6 5, D 5 0, A |
Errors between each equipment | ≤0.50ΔE*ab | ≤0.40ΔE*ab | ≤0.40ΔE*ab |
Color Space | CIE L*a*b*C*H*, CIE L*a*b*, CIE XYZ | CIEL*a*b*C*h*, CIEL*a*b*, CIEXYZ | CIEL*a*b*C*h*,CIEL*a*b*, CIEXYZ,CIE-RGB, CIEL*u*v*,CIEL*C*h, yellowness, whiteness. |
Color Difference Formula | E*ab ,L*a*b*, E*C*h* | E*ab, L*a*b*, E*C*h* | E*ab, L*a*b*, E*C*h* ECIE94, Ehunter |
Locating | Illumination Locating Cross Locating | Illumination Locating | Camera Locating Illumination Locating |
White/Black Calibration | Manual | Manual | Automatic/Manual |
Storage | 100 pcs standard samples; 5000 pcs test samples. | 100 pcs standard samples; 8000 pcs test samples. | 100 pcs standard samples; 8000 pcs test samples. |
Repeatability | Standard deviation within ΔE*ab 0.08; Measurement conditions: Average of 30 measurements of standard white plate | Standard deviation within ΔE*ab 0.08; Measurement conditions: Average of 30 measurements of standard white plate | Standard deviation within ΔE*ab 0.08; Measurement conditions: Average of 30 measurements of standard white plate |
Weight | 450g | 500g | 500g |
Size | 205×67×80 mm | 205×70×100 mm | 205×70×100 mm |
Power source | Rechargeable lithium-ion battery 3.7VDC@3200mAh | Rechargeable lithium-ion battery 3.7VDC@3200mAh | Rechargeable lithium-ion battery 3.7VDC@3200mAh |
Battery life | 5 years, more than 1.6 million times | 5 years, more than 1.6 million times | 5 years, more than 1.6 million times |
Charging time | 8 hours--100% electricity | 8 hours--100% electricity | 8 hours--100% electricity |
Measuring times after recharge | 3000 times in 8 hours | 3000 times in 8 hours | 3000 times in 8 hours |
Operating temperature/humidity range | 10~40°C,relative humidity 0~85% with no condensation
| 10~40°C,relative humidity 0~85% with no condensation
| 10~40°C,relative humidity 0~85% with no condensation
|
Data interface | USB | USB | USB |
Extended aperture (optional accessory) | Switchable dual face measurements: a large area stabilize surface and small area convex surface. | Φ8 extended aperture, available for measuring concave surface. | Φ8 extended aperture, available for measuring concave surface. |
Printer (optional accessory) | Miniature thermal printer | Miniature thermal printer | Miniature thermal printer |
