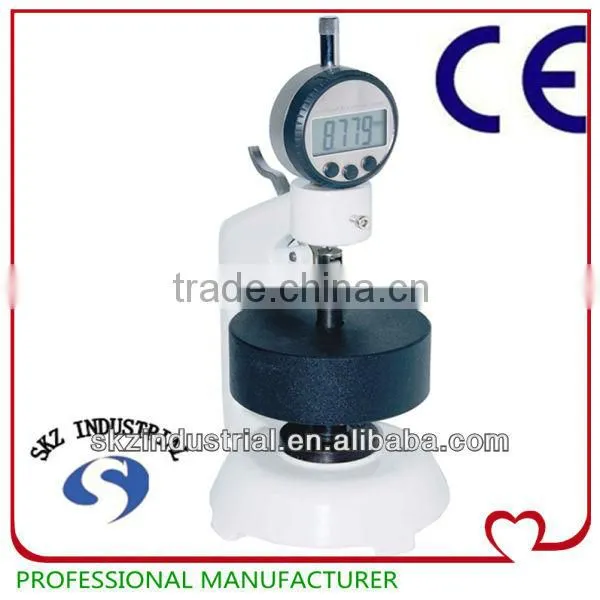

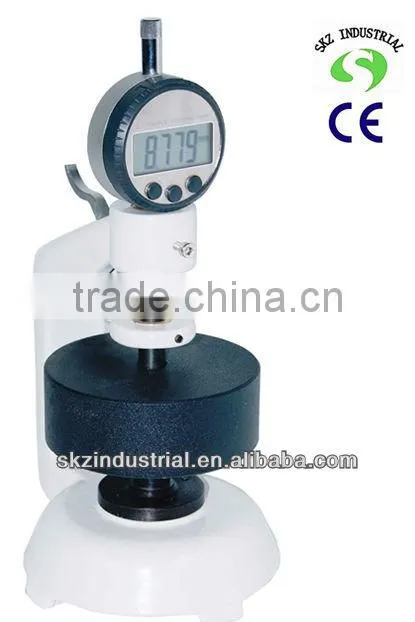

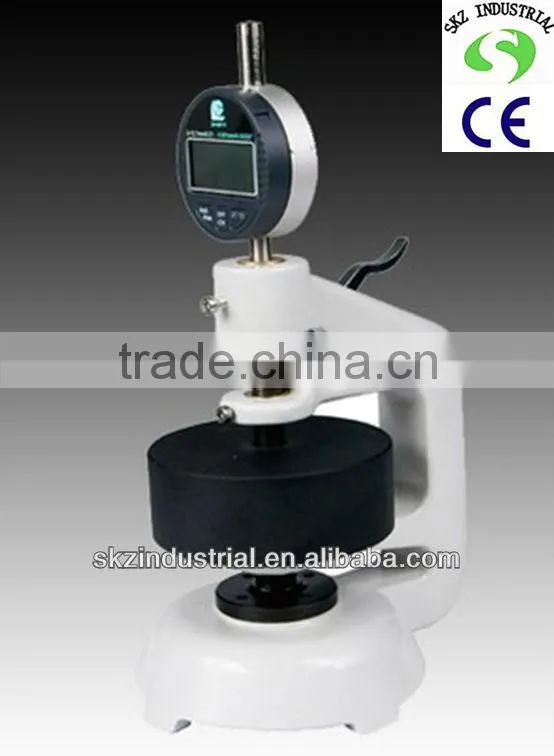

Paper Digital Thickness Tester

Paper digital thickness tester

It is applying to test the thickness of paper and cardboard.

Standard:

ISO 534:2005: Paper and board -Determination of thickness, density and specific volume

ISO 438:1980. Paper -- Determination of bulking thickness and apparent density

GB/T451.3: paper and board-Determination of thickness

Technical characters:

1, Measure range: 0-6mm,

2. indicator display range: 0-12.7mm

3, Accuracy: 0.001mm or 0.01mm (paper board)

4, Measuring area: 200mm²

5, Pressure: 100 Kpa,

6, Value error: ±2.5um or ±0.5%

7, Dimension: 80×120×120 (mm)

8, Weight: 5kg
