Specifications

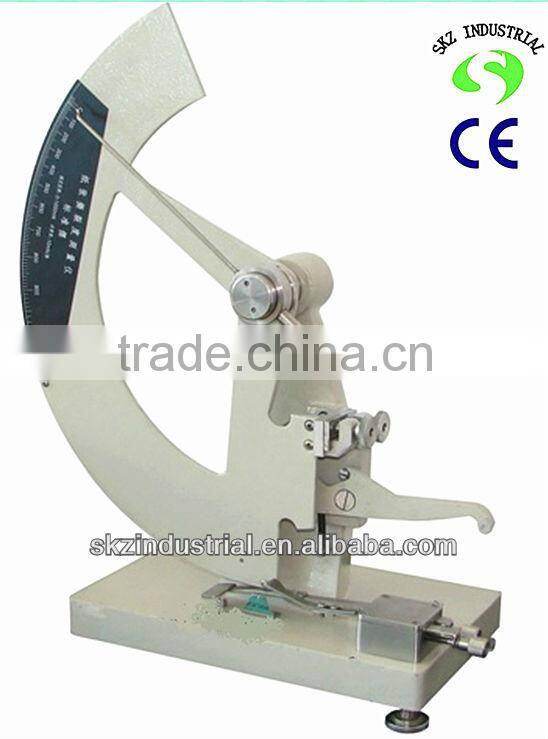

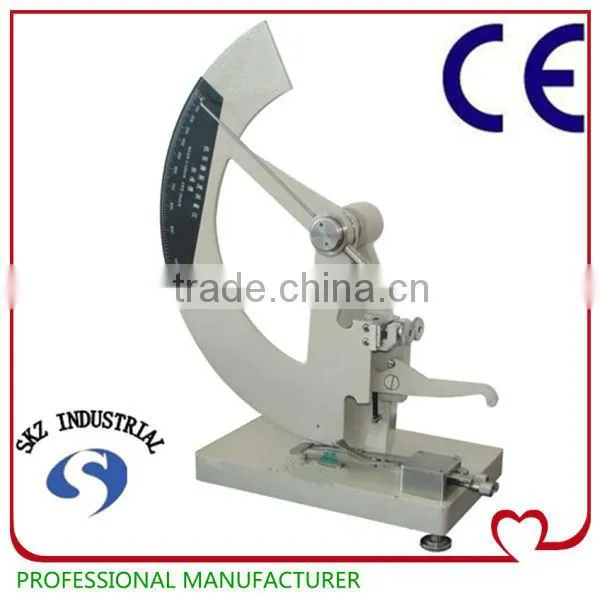

Test paper, cardboard and plastic tearing strength, Dial or LCD displays. ISO 1974, ASTM D689-03, ISO6383/2-1983.Paper and board tearing strength tester
It is designed according to ISO 1974(paper--tearing strength test method), GB455.1, It is the special instrument for paper tearing strength test. It is the ideal test instrument for papermaking, scientific research and quality-control department.
Technical parameter:
parameter | index | |
Test range |
| (10~1000)Mn, Standard arm and Light arm are the standard fittings. Lightest arm special customization according to need. |
Standard arm | (10~1000)mN,degree minimum: 10mN | |
Light arm | (10~500)mN, degree minimum: 5mN | |
Lightest arm | (10~200)mN, degree minimum: 2mN | |
Veracity | Error | Maximum range20%~80% ±1%, out range±0.5%FS |
Repeat error | Maximum range20%~80% ≤1%, out range≤0.5%FS | |
Tearing arm | (104±1)mm | |
Beginning angle for tearing | 27.5±0.5 | |
Tearing distance | (43±0.5)mm | |
Specimen size | (25×15)mm | |
Clamp distance | (2.8±0.3)mm | |
