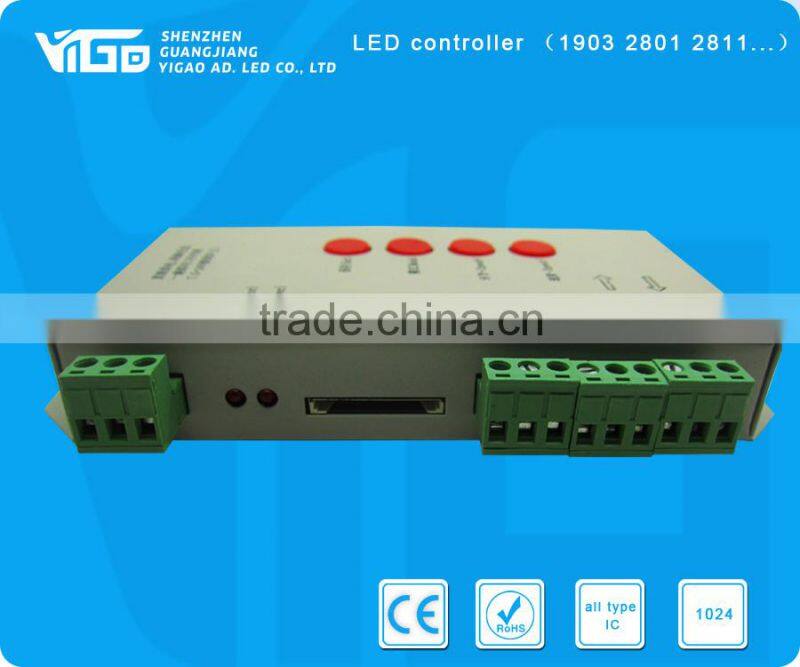

Programmable T1000s full color led controller/led sd card dmx controller

1.Multiple T-1000S led sd card dmx controller  can be cascaded together and work synchronous.

2.T-1000S one TTL(SPI) signal and one RS485 signal port output,can control 2048 pixels;

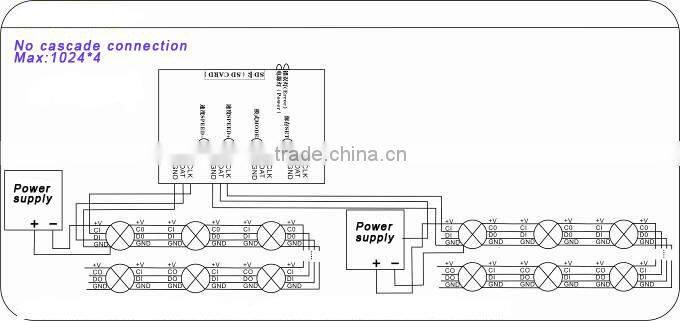

3.When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller.

If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.

4.If you need to use RS485 signal you need to connect controller A with LED A (DMX+), controller B with LED B(DMX-),

5.When you need to built a new project the led sd card dmx controller  type for the software is:T-1000-IC model.
