2015 High-performance remote led controller
Packaging & Delivery
| Packaging Detail: | 1pcs in box |
| Delivery Detail: | 5-15 Working Days |
Specifications
RGB LED Remote Control with Receiver
1. Work temperature: -20-60
2. Input: DC5/12/18/24V
3. Output: 3*4A
4. 433Mhz
2015 High-performance remote led controller Technical Parameters:
1. working temperature: -20-60°C
2. supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)
3. output: 3 channels
4. connection mode: common anode
5. external dimension: L89ΧW70ΧH28mm
6. packing size: L145ΧW95ΧH50 mm
7. net weight: 160g
8. gross weight: 195g
9. static power consumption: <1W
10. output current: <4A(each channel)
11. output power: 5V:<60W, 12V:<144W, 24V:<288W
2015 High-performance remote led controller for use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not
occur between connecting wire before you turn on the power;
2. There are six keys on the remote controller panel, the funtion of each key as follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button,there are 21 modes of change for you to choose;
B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;
B-: The step of the brightness subtract 1 by each pressing;
S+: The step of the speed change add 1 by each pressing,a total of 100 steps.
S-: The step of the speed change subtract 1 by each pressing.

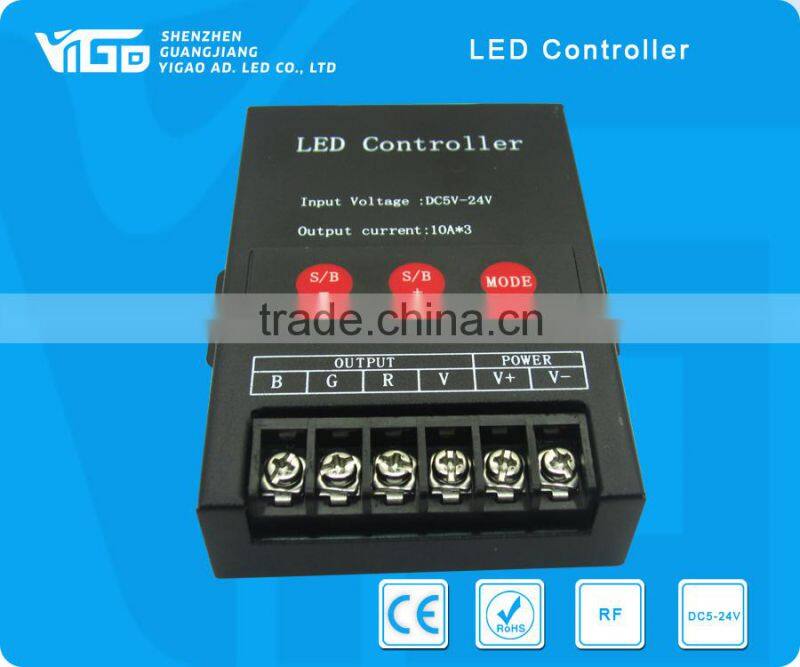

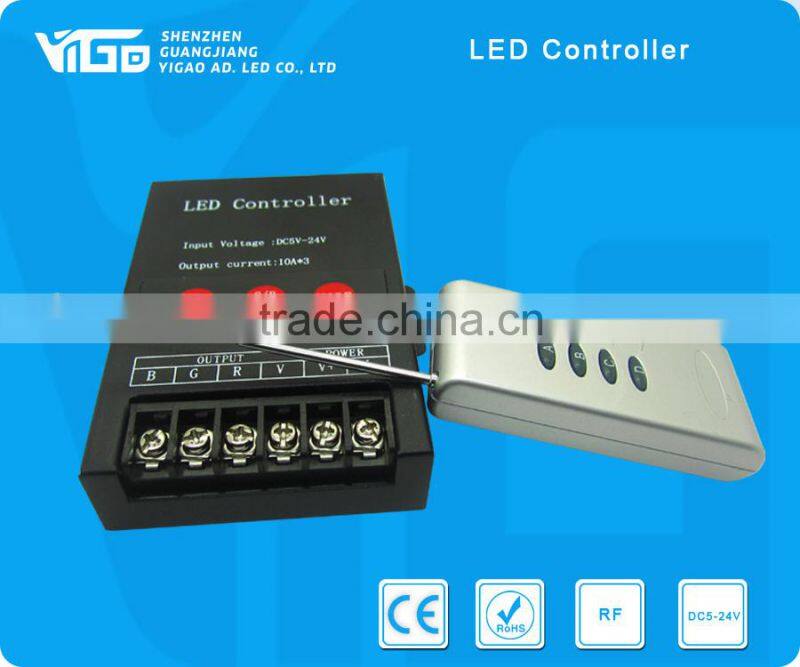

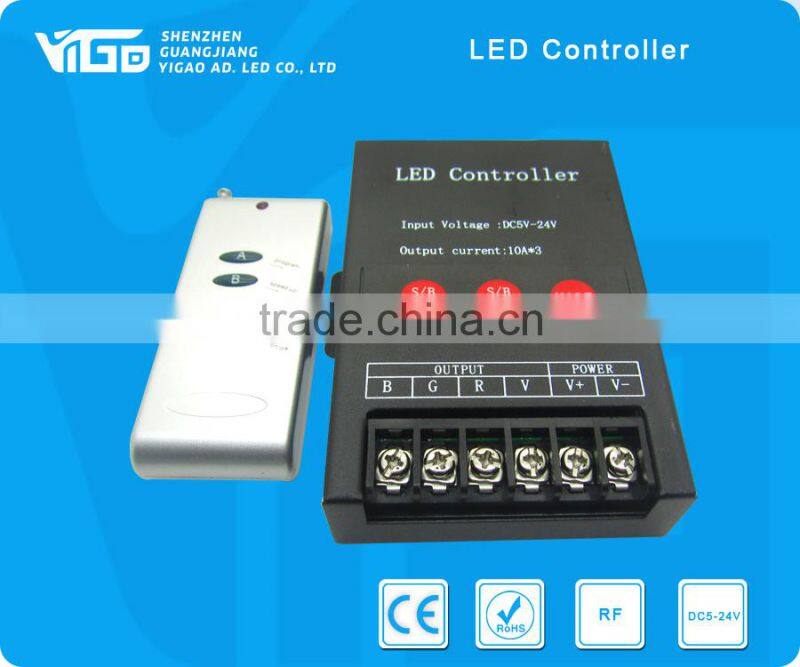

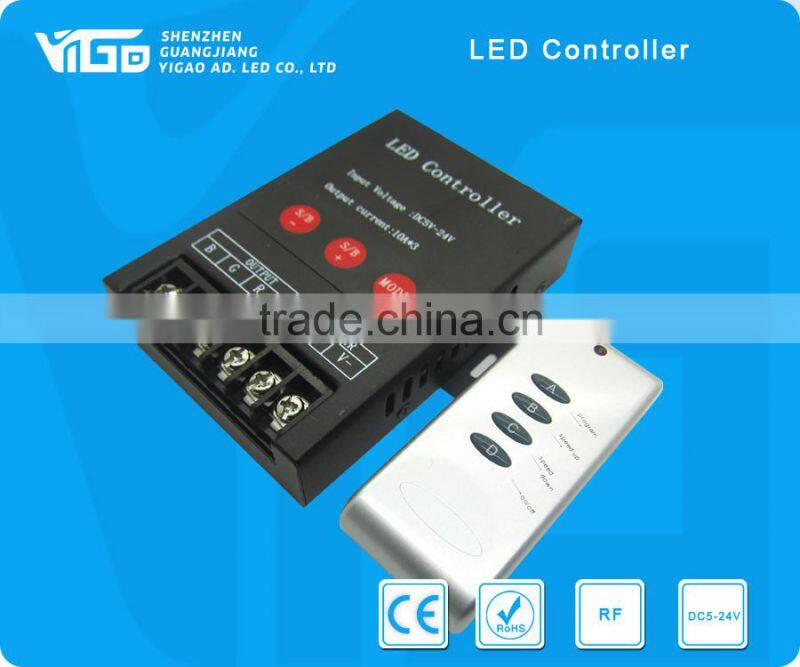

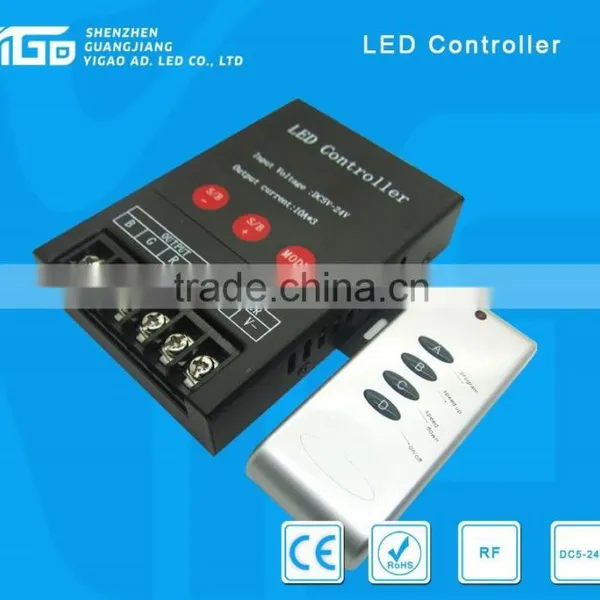

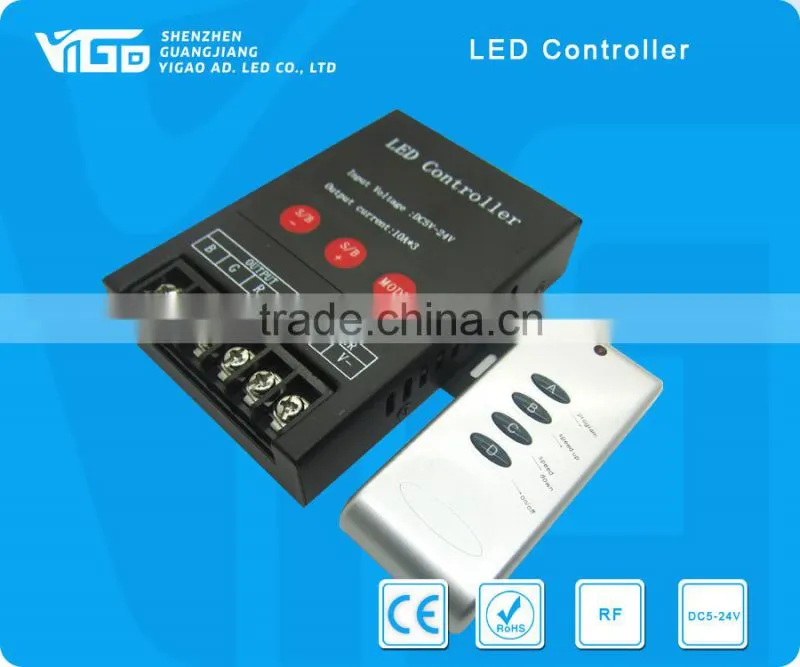

Product shows
