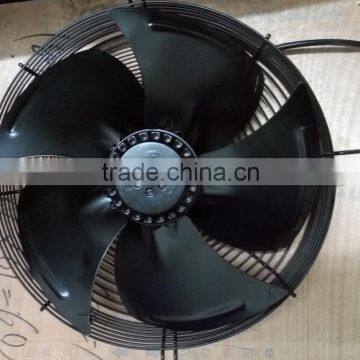

315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan

315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan thumbnail-1
315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan thumbnail-2
315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan thumbnail-3
315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan photo-1
315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan photo-2
315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan photo-3
US$ 10 - 15 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Other, cooling fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Shenzhen Topfan Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Other, cooling fan
Blade Material Stainless Steel
Place of Origin Guangdong, China
Brand Name MX/OEM/ODM
Model Number MX3155ABM22
Voltage 220/240v,380V, 220V - 380V
Power 90W
Air Volume 1800m³/h
Speed 1350R/Min, 1350R/Min
Certification UL, CE, Other, UL ,CE, RoHS, TUV

315mm Round 220V - 380V AC Industrial Extractor Fan / 12.4 INCH AC Fan





Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 220V , 380V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0





 Model:

315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan

Dimension:

315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan315mm 380V AC Industrial Extractor Fan / 12.4 INCH Equipment Fan



More detail information, please contact with me as soon as possible ! Thanks.
