Home > Products > Radiator fan > 172mm AC 220V OR 230V Fan Radiator Fan

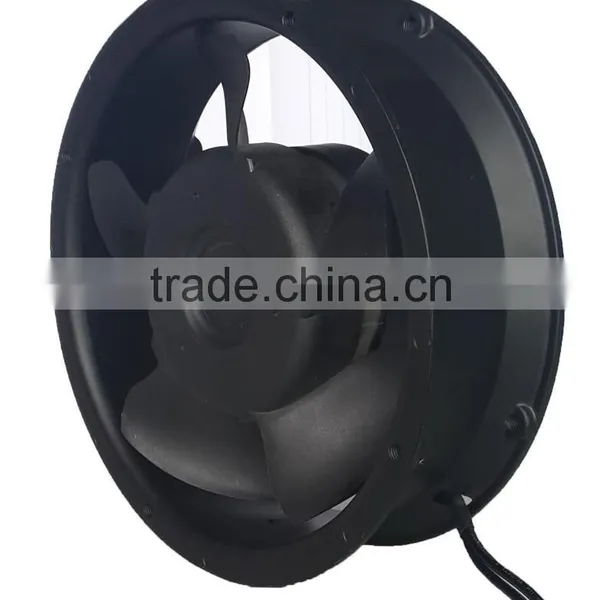

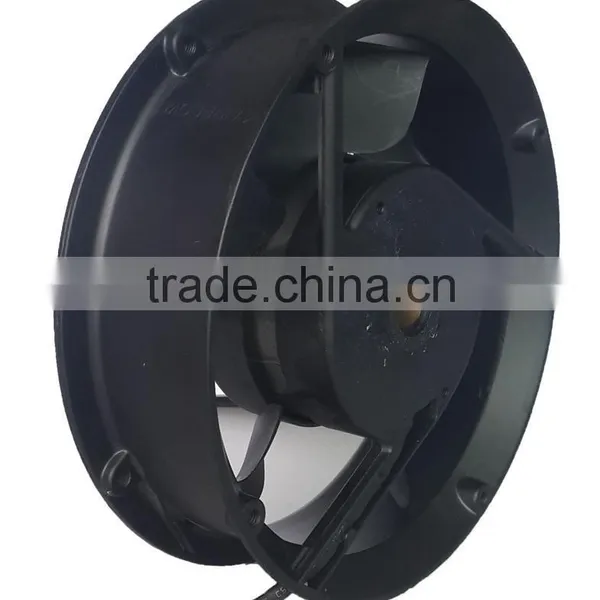

172mm AC 220V OR 230V Fan Radiator Fan
- 20000 Piece / Pieces per Month
- shenzhen
Product Details
Electric Current Type: | AC | Blade Material: | Plastic | Place of Origin: | Guangdong, China |
Brand Name: | MX/ODM/OEM | Model Number: | MX17251ABH22 | Voltage: | 220/240V, 110V-120V / 220V-240V |
Power: | 44/35W | Air Volume: | 200/187CFM | Speed: | 2500/2000rpm, 2500/2900RPM |
Certification: | CCC, CE, ROHS, UL |
Product Description
172mm AC 220V OR 230V Fan Radiator Fan
Applications:
Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
Description:
- 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
- Frame: Aluminum ADC-12, Painted Black
- Blade:metal
- Stator& Rotor: Silicon steel
- Magnet Wires: Copper 1 PEW
- Bobbin: PA-66 UL 94 V-0
- Bearing Type: Ball Bearing
Environmental Specification:
Item | Specification/Condition | |
01 | Operating Temp. Range | Temperature:-20℃~75℃ |
02 | Storage Temperature | Temperature:-30℃~140℃ |
03 | Life | 50000H |
Main Materials/Parts Specification:
(Item | Specification | |
01 | Blade | (PBT) PBT+15%GF |
02 | Frame | Aluminum ADC-12,Painted Black |
03 | Stator& Rotor | Silicon stee |
04 | Magnet Wires | Copper 2 UEW |
05 | Bobbin | PA-66 UL 94 V-0 |
Model:
Size (mm) | Model | Beaing system | Rated voltage (v) | Freq (HZ) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Air Flow (CFM) | Air Flow (m3/mim) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
172*51 | M145CA1H | Ball | 110/120 | 50/60 | 0.44/ 0.46 | 30/37 | 2500/ 2100 | 200/187 | 5.4/6.0 | 0.55/0.5 | 53/48 | 900 |
M145CA2H | Ball | 220/240 | 50/60 | 0.26/ 0.28 | 44/35 | 2500/ 2200 | 200/190 | 5.4/6.0 | 0.55/0.5 | 53/48 | 900 | |
M145CA3H | Ball | 380/400 | 50/60 | 0.15/ 0.13 | 38/35 | 2500/ 2700 | 200/190 | 5.4/6.0 | 0.55/0.5 | 53/48 | 900 |
Competitive Advantage:
*Qualified, cost effective and easily operated
*Small in shape, have compact structure
*UL, CE, Rohs, CUL, CCC
* Competitive Pricing
* Keep Investing and Developing In New Products
* The Most Advanced Testing and Measuring Equipment
* On-Time Delivery
More detail information, please contact with me as soon as possible .
Contact Us
- Shenzhen Topfan Technology Development Co., Ltd.
- Contact nametopfan- xiangzhi du
- Phone86-0755-26070926
- Address23A2, Suhao Building, Nanxin Road, Nanshan District, Shenzhen, China Shenzhen,Guangdong
